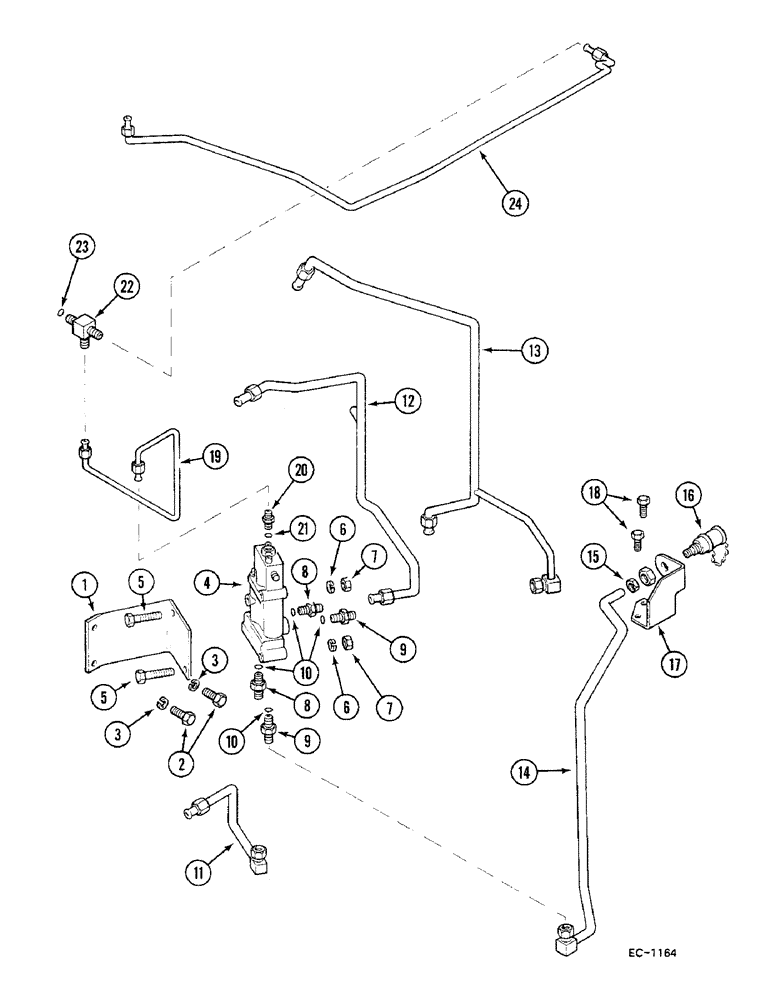

Запчасти Case IH 685 (8-642) - HYDRAULIC TRAILER BRAKE, 685 : 18001-, 885 : 3401- (08) - HYDRAULICS

1

99919C1

SUPPORT

BRACKET

1шт.

2

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

2шт.

3

103321

LOCK WASHER,3/8"

2шт.

4

1500659C91

VALVE

ASSY.

1шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT

2шт.

6

80681

LOCK WASHER,5/16"

2шт.

7

120376

NUT,5/16"-18, G5

2шт.

8

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 - 5/8 inch

2шт.

9

1500662C1

ADAPTER,M18 x 1.5 x 3/4"-16, 37 Degree Fl

M18 - 12 mm

2шт.

10

1500663C1

O-RING

4шт.

11

99920C1

PIPE

TUBE

1шт.

12

99921C1

PIPE

TUBE

1шт.

13

1956745C1

HYD TUBE

1шт.

14

99925C1

PIPE

TUBE

1шт.

15

1500671C1

NUT

1шт.

1500670C1

SLEEVE

1шт.

16

3131463R91

QUICK MALE COUPLING

ASSY., Arelco

1шт.

17

99926C1

SUPPORT

BRACKET

1шт.

18

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 inch

2шт.

19

99927C1

TUBE

1шт.

20

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

1шт.

21

709803R1

SEALING WASHER

WASHER

1шт.

22

1500687C2

TEE

1шт.

23

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

99930C1

PIPE

TUBE

1шт.

1135283R1

CAUTION DECAL

PRODUCT GRAPHIC, English

1шт.

1135304R1

DECAL

PRODUCT GRAPHIC, Norge

1шт.

1135305R1

DECAL

PRODUCT GRAPHIC, Suomi

1шт.

1135306R1

DECAL

PRODUCT GRAPHIC, Deutsch

1шт.

1135307R1

DECAL

PRODUCT GRAPHIC, Espanol

1шт.

1135308R1

DECAL

PRODUCT GRAPHIC, Svenskt

1шт.

1135309R1

DECAL

PRODUCT GRAPHIC, Dansk

1шт.

1135310R1

DECAL

PRODUCT GRAPHIC, Francais

1шт.
