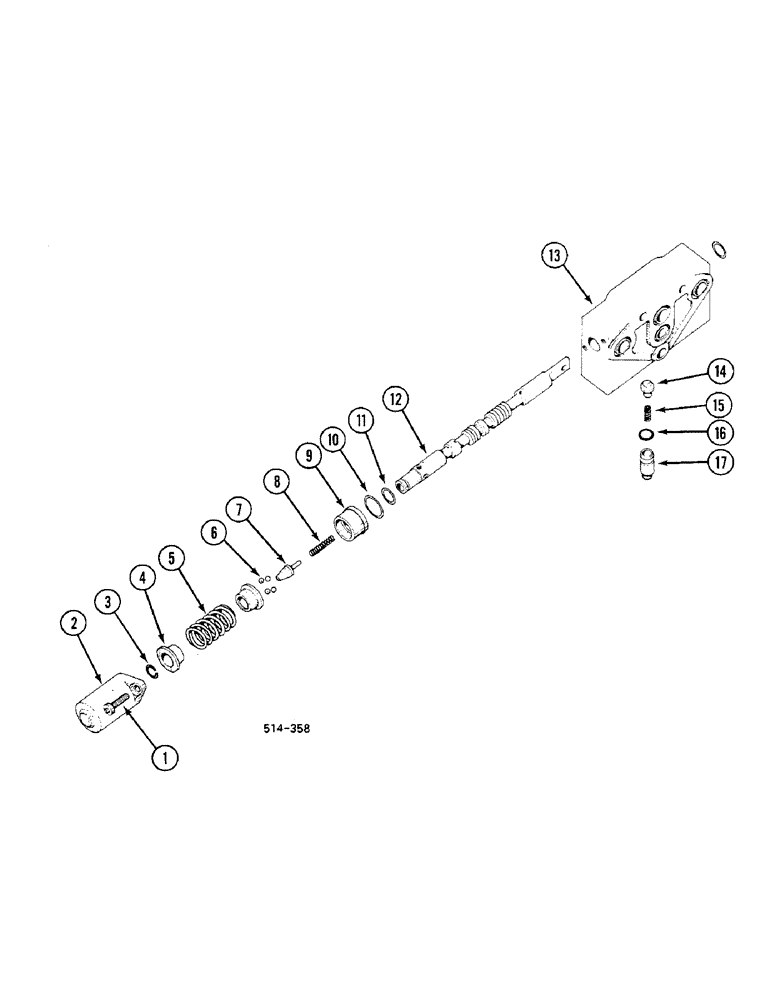

Запчасти Case IH 685 (8-628) - DOUBLE ACTING AUX. HYD. VALVE - KONTAK, 685 : -13595, 885 : -3401 (08) - HYDRAULICS

3116056R93

VALVE

ASSY., consists of: Ref. 1 - 17

1шт.

1

3113064R1

SCREW

2шт.

2

3113058R1

CYLINDER END CAP

1шт.

3

3118800R1

RING, SNAP

RING SNAP

1шт.

4

3118795R1

SPRING SEAT

2шт.

5

3113060R1

SPRING

1шт.

6

17007R1

BALL

4шт.

7

3118796R1

PIN

SPARE PART

1шт.

8

3118798R1

SPRING

1шт.

9

3118799R1

CAGE

1шт.

10

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

1шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

SPOOL, order P/N 3116056R93

1шт.

13

NSS

NOT SOLD SEPARAT

BODY, order P/N 3116056R93

1шт.

14

3113068R1

VALVE POPPET

1шт.

15

3113069R1

SPRING

1шт.

16

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

17

3113070R1

GUIDE

1шт.
