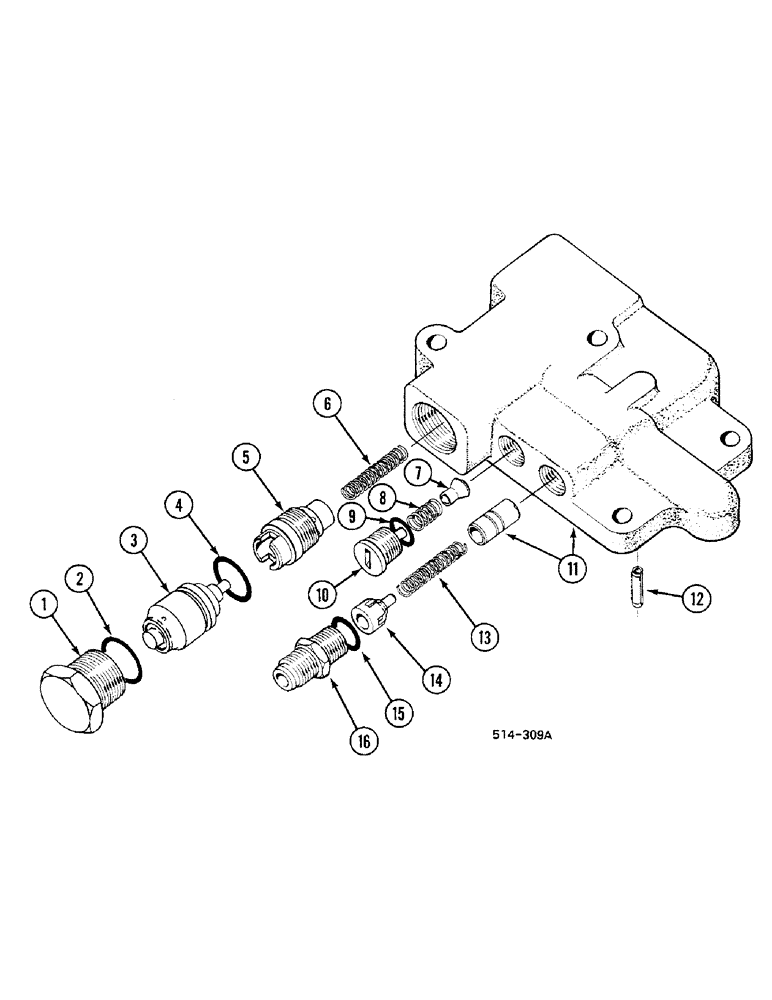

Запчасти Case IH 685 (8-624) - UNLOADING AND FLOW CONTROL VALVE (08) - HYDRAULICS

59098C93

VALVE

ASSY., consists of: Ref. 1 - 16

1шт.

1

545494R2

PLUG

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

3

376762R11

PISTON ASSY.

VALVE unloading

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

530138R1

BODY

ASSY.

1шт.

6

530141R1

SPRING

1шт.

7

389587R3

CHECK VALVE

1шт.

8

535547R1

SPRING

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

399851R1

PLUG

1шт.

11

BODY ASSEMBLY, order P/N 59098C93

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

1шт.

13

530142R1

SPRING

1шт.

14

58367C1

GUIDE

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.
