Запчасти Case IH 685 (8-618) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS

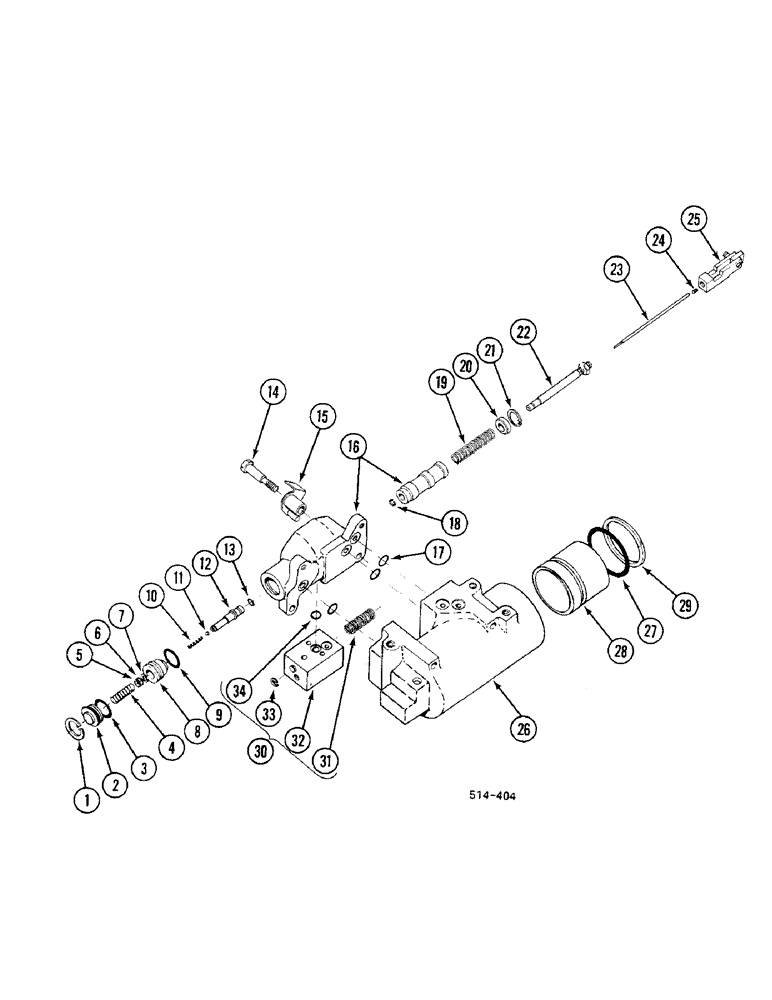

Схема запчастей Case IH 685 - (8-618) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS
21
10
23
12
11
30
4
8
1
6
2
29
18
16
27
34
15
14
26
13
24
33
31
3
19
28
20
17
32
5
25
22
9
7

Артикул

Название

Примечание

Количество

399893R92

VALVE

ASSY., consists of: Ref. 1 - 13, 16, and 18 - 25

1шт.

1

58102R1

SNAP RING,1.312", Int, #131

1шт.

2

376770R1

PLUG

1шт.

3

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

4

376768R1

SPRING

1шт.

5

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

1шт.

6

406182R1

O-RING,1.78mm Thk x 9.25mm ID, 80 Duro

1шт.

7

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

1шт.

8

376766R1

VALVE POPPET

drop

1шт.

9

406184R1

O-RING,0.139" Thk x 0.984" ID, -214, 70 Duro

1шт.

10

376765R1

SPRING

1шт.

11

17006R1

BALL

1шт.

12

392041R2

VALVE

1шт.

13

406183R1

O-RING,0.07" Thk x 0.301" ID, -11, 80 Duro

1шт.

14

399892R1

BOLT,Shldr, Hex, 3/8" - 16 x 2.25"

1шт.

15

399889R1

ARM ASSY.

1шт.

16

399894R1

BODY

ASSY.

1шт.

444697

PLUG,Hex Soc, 3/8"-18

1шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

3шт.

18

376771R1

RING, SNAP

RING SNAP retaining

1шт.

19

395005R2

SPRING

main valve

1шт.

20

376759R1

RETAINER

1шт.

21

303322R1

SNAP RING,1.00", Int, #100

1шт.

22

376756R12

HYD CYL SLEEVE

1шт.

23

376763R1

ROD

drop valve

1шт.

24

378101R1

SET SCREW,Hex Soc, #8-36 x 1/4"

1шт.

25

527617R1

ARM ASSY.

1шт.

26

399885R21

CYLINDER ASSY.

with Ref. 26 - 28

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

3шт.

27

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

28

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

1шт.

29

375936R1

BACK-UP RING

1шт.

30

60651C91

VALVE

ASSY.

1шт.

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

31

547499R1

SPRING

1шт.

32

NSS

NOT SOLD SEPARAT

BODY action control valve, order P/N 6051C91

1шт.

33

392320R1

SNAP RING,#31, Ext, E-Type

#31, Ext, E-Type

1шт.

34

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

404810R91

GASKET KIT

PACKAGE service, consists of: P/N's below, not illustrated

1шт.

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

not illustrated

1шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

not illustrated

1шт.

375936R1

BACK-UP RING

not illustrated

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

not illustrated

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

not illustrated

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

not illustrated

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

not illustrated

1шт.

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

not illustrated

2шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

not illustrated

2шт.
