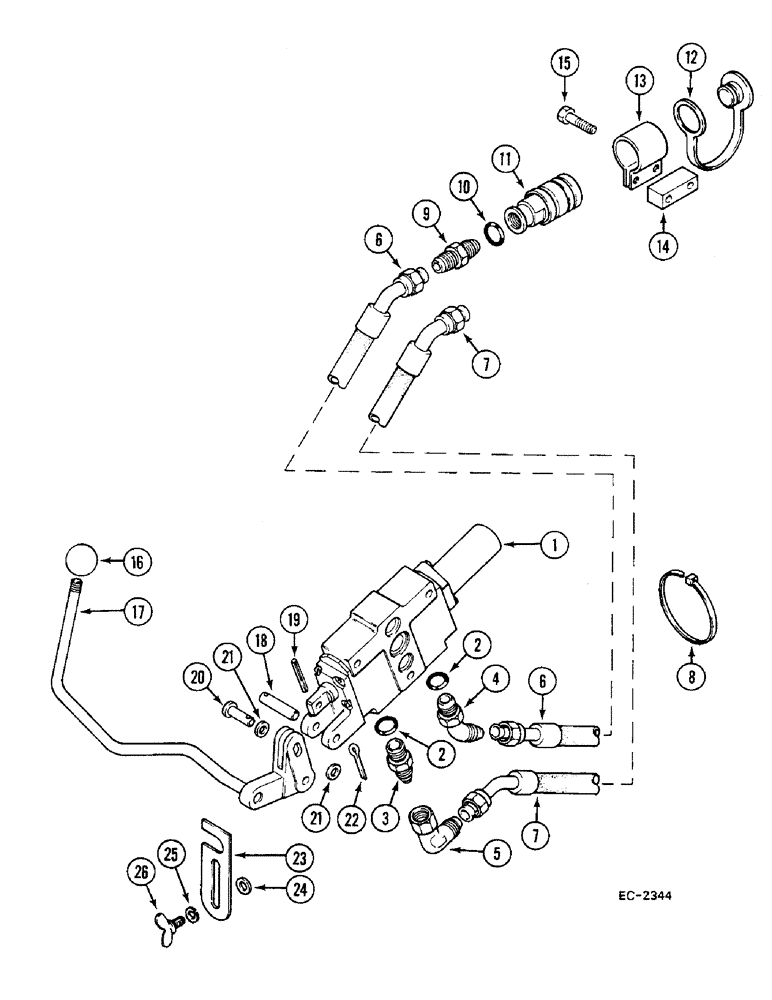

Запчасти Case IH 685 (8-584) - AUXILIARY VALVES "BOSCH" - SECOND BANK (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

VALVE ASSY., see auxiliary valves, Bosch

1шт.

2

364885C1

O-RING

2шт.

3

86165C1

FITTING

UNION

1шт.

4

93636C1

ELBOW

1шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

6

533142R2

HOSE,12.7mm ID x 610mm L

1шт.

7

533141R2

HOSE

1шт.

8

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

9

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

10

364885C1

O-RING

2шт.

11

3067993R91

COUPLING, BREAK AWAY

2шт.

12

373220R91

PLUG

2шт.

13

3114106R1

CLAMP

2шт.

14

3123061R1

SPACER

1шт.

15

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

16

99875C1

BUTTON

KNOB green

1шт.

17

94136C1

LEVER ASSY.

1шт.

18

99609C1

PIN

1шт.

19

18518R1

LOCK PIN,1/8" x 1", Slotted

1шт.

20

23840R1

CLEVIS PIN,5/16" x 1 3/16"

1шт.

21

31130R1

WASHER,M8 x 17.5 x 2, HT

2шт.

22

103373

COTTER PIN,3/32" x 3/4"

1шт.

23

3125862R1

PLATE

1шт.

24

120394

WASHER,3/8", SAE

1шт.

25

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

26

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

3/8 inch

1шт.
