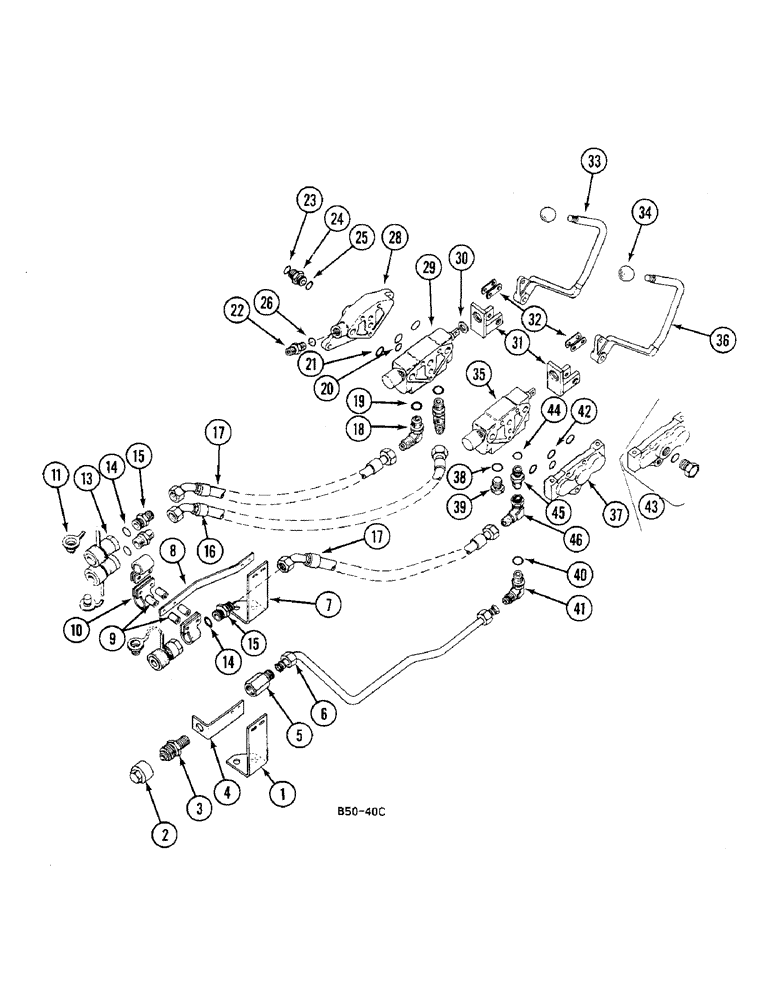

Запчасти Case IH 685 (8-562) - AUXILIARY VALVES - KONTAK/WEST PULLMAN, 685 : -13595, 885 : -3401 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
533139R1
BRACKET
ASSEMBLY
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
179889
BOLT,Hex, 1/2" - 13 x 2", Gr 5
BOLT, 1/2 x 2 inch
2шт.
103323
LOCK WASHER,1/2"
2шт.
2
705578R1
CYLINDER END CAP
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
2
3041963R1
CAP
optional
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
3
705579R1
COUPLING
COUPLING
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
3
3041962R91
COUPLING, BREAK AWAY
optional
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
4
533140R1
BRACKET
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
NLS
NO LONGER SERVICED
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
2шт.
95-11028
WASHER,1/4"
2шт.
5
529708R1
ADAPTER
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
704337R1
SEALING WASHER
2шт.
6
533138R1
TUBE ASSY.
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
9403529
TUBE NUT,37 Degree, 7/8"-14, Type B
2шт.
9403451
SLEEVE,37 Degree, 5/8" Tube
2шт.
7
3113436R91
SUPPORT
BRACKET ASSEMBLY
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
179889
BOLT,Hex, 1/2" - 13 x 2", Gr 5
BOLT, 1/2 x 2 inch
2шт.
103323
LOCK WASHER,1/2"
2шт.
3113437R1
STRIP
1шт.
8
533143R1
BAR
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
NLS
NO LONGER SERVICED
2шт.
103319
LOCK WASHER,1/4"
2шт.
95-11028
WASHER,1/4"
2шт.
109084
NUT,1/4"-20, G5
2шт.
9
3123061R1
SPACER
4шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
10
3114106R1
CLAMP
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
10
179819
BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
80681
LOCK WASHER,5/16"
2шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
10
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
3шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
11
373220R1
PLUG
1шт.
11
401757R11
PLUG
optional
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
401758R1
WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk
not used
1шт.
13
3067993R91
COUPLING, BREAK AWAY
quick release, female
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
3115783R1
O-RING
1шт.
3115782R1
BACK-UP RING
1шт.
373220R1
PLUG
1шт.
401757R11
PLUG
optional
1шт.
401758R1
WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk
1шт.
14
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
15
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
16
533141R2
HOSE
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
17
533142R2
HOSE,12.7mm ID x 610mm L
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
18
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
90 degree
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
19
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
20
3121945R1
O-RING
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Single Acting Control Valve Used with First Bank Single Auxiliary Valve Second Bank
1шт.
Double Acting Control Valve Used with First Bank Single Auxiliary Valve
1шт.
20
3121945R1
O-RING
2шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
21
384578R1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
2шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Single Acting Control Valve Used with First Bank Single Auxiliary Valve Second Bank
1шт.
Double Acting Control Valve Used with First Bank Single Auxiliary Valve
1шт.
21
384578R1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
4шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
22
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
23
377952R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
24
529705R1
UNION
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
25
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
26
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
not used
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
28
3116012R1
BLOCK
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
NLS
NO LONGER SERVICED
2шт.
103321
LOCK WASHER,3/8"
2шт.
29
VALVE ASSY., see single and double acting control valves
1шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Double Acting Control Valve Used with First Bank Single Auxiliary Valve
1шт.
30
529698R1
SEALING RING,15.88mm ID x 23.8mm OD x 7.54mm Thk
1шт.
31
3121840R1
BRACKET
ASSY.
2шт.
186923
HEX SOC SCREW,1/4"-20 x 5/8"
4шт.
3121842R1
SCREW
2шт.
32
529702R1
LINK
4шт.
102776H
CLEVIS PIN,1/4" x 11/16"
4шт.
103361
PIN, SPLIT (COTTER)
PIN, COTTER
4шт.
33
3121846R1
LEVER
ASSY., First Bank
1шт.
34
3123087R1
BUTTON
KNOB
1шт.
35
VALVE ASSY., see single and double acting control valves
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Single Acting Control Valve Used with First Bank Single Auxiliary Valve Second Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
36
3121843R1
LEVER
ASSY., Second Bank
1шт.
37
529697R2
PLATE
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
BOLT
2шт.
433114
BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5
1шт.
186288
BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5
1шт.
103321
LOCK WASHER,3/8"
3шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
22344R1
BOLT,Hex, 3/8" - 16 x 5 3/4", Gr 5
BOLT
1шт.
186288
BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5
2шт.
103321
LOCK WASHER,3/8"
3шт.
38
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting Control Valve Used with First Bank Single Auxiliary Valve Second Bank
1шт.
Double Acting Control Valve Used with First Bank Single Auxiliary Valve
1шт.
For Scandinavia
1шт.
39
9410360
PLUG
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting Control Valve Used with First Bank Single Auxiliary Valve Second Bank
1шт.
Double Acting Control Valve Used with First Bank Single Auxiliary Valve
1шт.
For Scandinavia
1шт.
40
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
41
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
90 degree
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
42
393349R1
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
Single Acting Control Valve Used with First Bank Single Auxiliary Valve Second Bank
1шт.
Double Acting Control Valve Used with First Bank Single Auxiliary Valve
1шт.
42
393349R1
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
2шт.
Double Acting with Two Self Sealing Screwed Coupling First Bank
1шт.
Single Acting with Self Sealing Quick Release Coupling First Bank
1шт.
Double Acting Control Valve for Australia First Bank
1шт.
Single Acting w/Self Sealing Screwed Coupling, First Bank
1шт.
For Scandinavia
1шт.
43
3123527R91
COVER ASSY
1шт.
3123528R1
PLUG
1шт.
708496R1
SEAL
1шт.
3118797R1
ADAPTER
1шт.
383024R1
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
1шт.
44
364885
O-RING
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
45
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
46
9410282
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
1шт.
Single Acting with Self Sealing Quick Release Coupling Second Bank
1шт.
537080R2
PRODUCT GRAPHIC
DECAL, not illustrated
1шт.
3067991R91
BREAKER POINTS
ASSY., consists of : P/N's 3067992R91, 3067993R91, not illustrated
3шт.
3067992R91
COUPLING, BREAK AWAY
quick release, male, not illustrated
3шт.
9410360
PLUG
Not illustrated
3шт.
Выбрано товаров: 221
