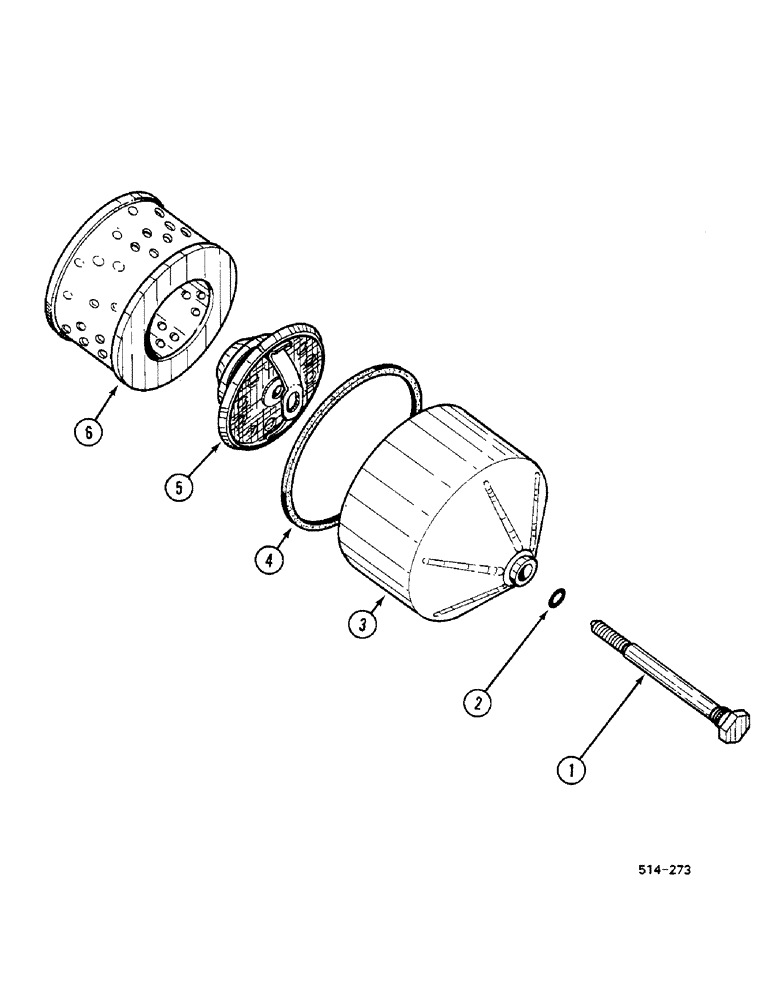

Запчасти Case IH 685 (8-560) - OIL FILTER (08) - HYDRAULICS

1

68202C1

BOLT

BOLT

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

3

68209C1

CASE

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

1шт.

5

405464R3

VALVE

ASSY., by-pass with screen

1шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT ASSY., order P/N 93413C1

1шт.

93413C1

HYDRAULIC OIL FILTER

PACKAGE, consists of : P/N's 405462R1 seal, 355966R1 O-ring, 375271R1 O-ring, and element assembly below, not illustrated

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Not Illustrated

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

not illustrated

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

not illustrated

1шт.

NSS

NOT SOLD SEPARAT

ELEMENT ASSY., not illustrated

1шт.
