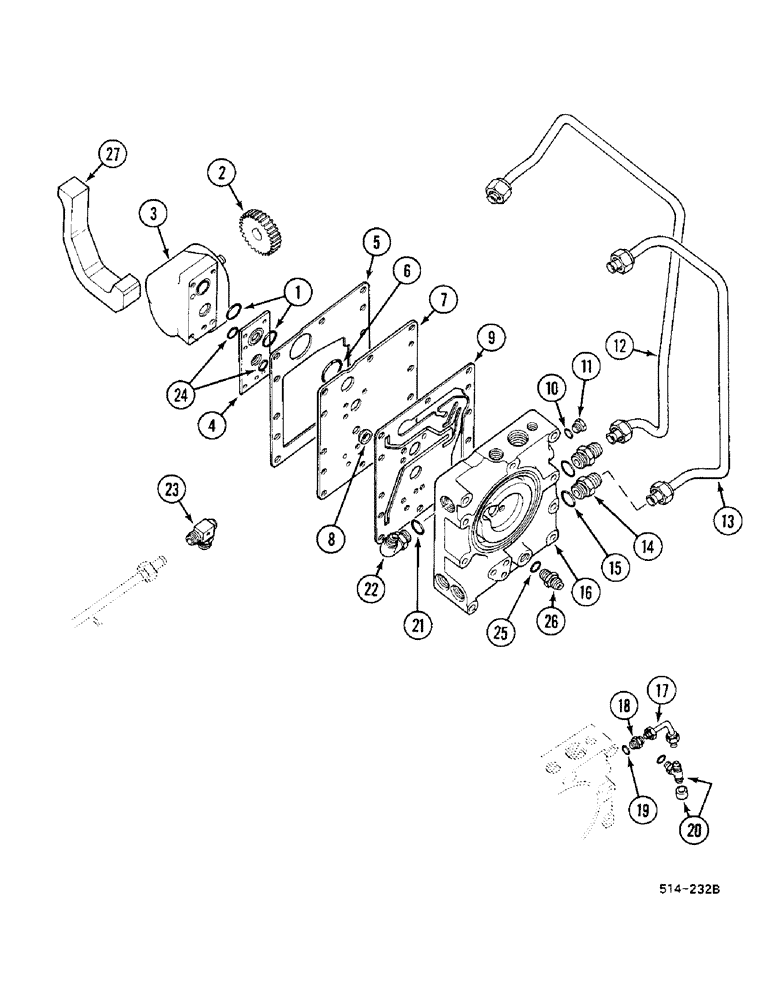

Запчасти Case IH 685 (8-552) - 685, 785, 885 DIESEL TRACTOR, HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE (08) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Pump Suction Port

2шт.

2

59369C1

GEAR

23 T

1шт.

2

94181C1

GEAR

20 T

1шт.

2

406764R1

PINION

GEAR, 27 T, driven

1шт.

19258R1

LOCK NUT,1/2"-20, GB

1шт.

3

93835C91

PUMP, HYDRAULIC

ASSY., Plessey

1шт.

3

84573150R

REMAN-HYD PUMP

685 CASE IH DIESEL TRACTOR, ASSY., Plessey (1/86-12/90), Reman for New PN 93835C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1502030C1

SEAL KIT

PACKAGE rings

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

BOLT, 1/2 x 2 inch

1шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

4

544909R2

LARGE PLATE

PLATE, LARGE SPACER, model number 685 to Use up to S/N 13595

1шт.

4

544909R2

LARGE PLATE

PLATE, LARGE SPACER, model number 885 to Use up to S/N 3401

1шт.

59370C1

LARGE PLATE

PLATE, LARGE

1шт.

5

401736R3

GASKET

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1шт.

7

405458R2

LARGE PLATE

PLATE, LARGE

1шт.

8

387926R2

RING

1шт.

9

65000C3

GASKET

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

9410356

PLUG

1шт.

12

1956744C1

HYD TUBE

TUBE ASSY., model number 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

12

66761C1

TUBE ASSY.

draft control return, model number 685 to Use up to S/N 13595

1шт.

12

66761C1

TUBE ASSY.

draft control return, model number 885 to Use up to S/N 3401

1шт.

13

66764C1

PIPE

TUBE ASSY., MC valve by-pass

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

16

94281C91

VALVE

ASSY., model number 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

16

57714C95

VALVE

ASSY., see multiple control valve, model number 685 to Use up to S/N 13595

1шт.

16

57714C95

VALVE

ASSY., see multiple control valve, model number 885 to Use up to S/N 3401

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

10шт.

17

539835R1

TUBE ASSY.

version with IPTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

version with IPTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Version with IPTO

2шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

version with IPTO

1шт.

9403369

CAP,37 Degree, 7/16"-20

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree

1шт.

23

NSS

NOT SOLD SEPARAT

not used

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

pump pressure port

2шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

27

69352C1

SEAL

1шт.

69351C1

GLUE

ADHESIVE, not illustrated

2шт.

1502030C1

SEAL KIT

PACKAGE rings, consists of : 1 seal, 1 backup ring, 2 pressure loading rings, and, 1 manual, not illustrated

1шт.
