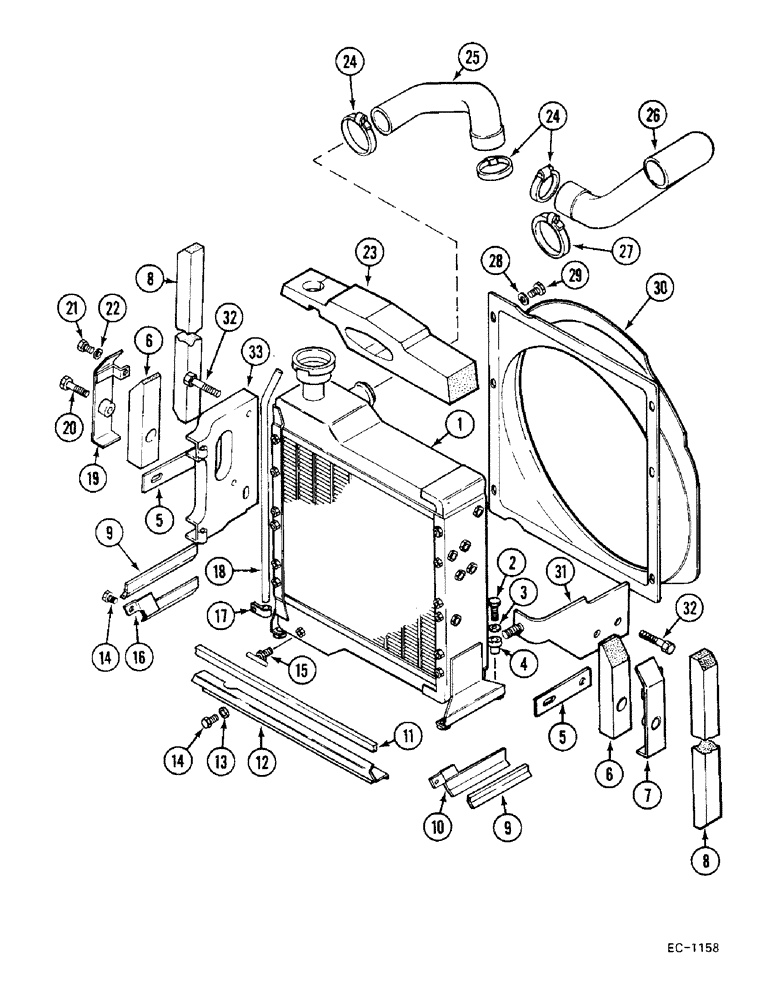

Запчасти Case IH 685 (2-006) - RADIATOR - HIGH AMBIENT TEMPERATURE (02) - ENGINE

1

84673C3

RADIATOR

1шт.

2

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

3

495-21044

WASHER,3/8"

1шт.

4

52276

FRAME

MOUNTING

1шт.

5

98905C1

BRACKET

SUPPORT

1шт.

6

98940C1

SEAL

1шт.

7

98914C1

GUARD

SHIELD

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP filling, bulk length

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP filling, bulk length

1шт.

10

1970648C1

BRACKET

SUPPORT, left

1шт.

11

NSS

NOT SOLD SEPARAT

STRIP filling, bulk length

1шт.

12

98958C1

BAFFLE

lower

1шт.

13

120392

WASHER,1/4", SAE

lock

1шт.

14

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1шт.

15

103647

VALVE

PLUG drain

1шт.

16

1970647C1

BRACKET

SUPPORT, right

1шт.

17

163135H1

CLAMP,7/16", 3/8" Bolt

1шт.

18

84515C2

HOSE

1шт.

19

98913C1

GUARD

SHIELD right

1шт.

20

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

21

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

22

80681

LOCK WASHER,5/16"

1шт.

23

98918C1

SEAL

1шт.

24

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

1шт.

25

84496C1

RADIATOR HOSE,44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

Upper

1шт.

26

84497C1

LARGE HOSE

HOSE,LARGE lower

1шт.

27

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLIP

1шт.

28

95-11034

WASHER,1/4"

1шт.

29

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

30

84526C2

HOUSING

1шт.

31

84507C1

BRACKET

SPARE PART

1шт.

32

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

33

84506C2

BRACKET

1шт.
