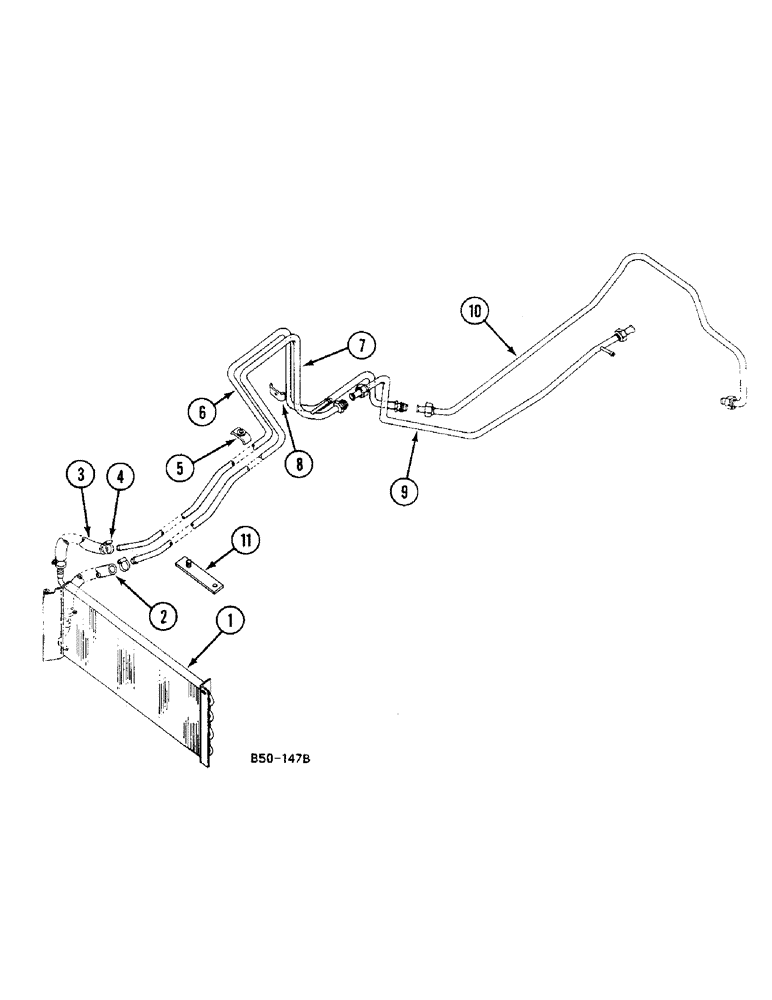

Запчасти Case IH 685 (8-548) - OIL COOLER - SYNCHROMESH DRIVE (08) - HYDRAULICS

1

84721C1

COOLER

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

129-419

WING NUT,5/16"-18

1шт.

2

3125980R1

LARGE HOSE

HOSE,LARGE 15M, outlet, bulk length

1шт.

3

3125980R1

LARGE HOSE

HOSE,LARGE 15M, inlet, bulk length

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

4шт.

4

3074617R1

CLAMP

HOSE, optional

4шт.

5

529644R11

CLAMP

ASSY.

1шт.

NLS

NO LONGER SERVICED

1шт.

103319

LOCK WASHER,1/4"

1шт.

6

99783C1

PIPE

TUBE ASSY., model number 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

6

66098C1

PIPE

TUBE ASSY., model number 685 to Use up to S/N 13595

1шт.

66098C1

PIPE

model number 885 to Use up to S/N 3401

1шт.

6

99867C1

PIPE

TUBE inlet, for ambient temp. above 100 fahrenheit, see radiator, high ambient temp.

1шт.

7

99782C1

PIPE

TUBE ASSY., model number 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

7

66100C2

TUBE ASSY.

model number 685 to Use up to S/N 13595

1шт.

66100C2

TUBE ASSY.

model 885 to Use up to S/N 3401

1шт.

7

99868C1

PIPE

TUBE outlet, for ambient temp. above 100 fahrenheit, see radiator, high ambient temp.

1шт.

8

99788C1

CLAMP

model number 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

8

381448R1

CLAMP

model number 685 to Use up to S/N 13595

1шт.

381448R1

CLAMP

model number 885 to Use up to S/N 3401

1шт.

931432R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

933833R1

LOCK WASHER,M6

1шт.

9

66096C4

PIPE

TUBE ASSY., outlet

1шт.

10

3129259R1

PIPE

TUBE ASSY., inlet

1шт.

11

98937C1

SUPPORT

BRACKET ASSEMBLY

1шт.
