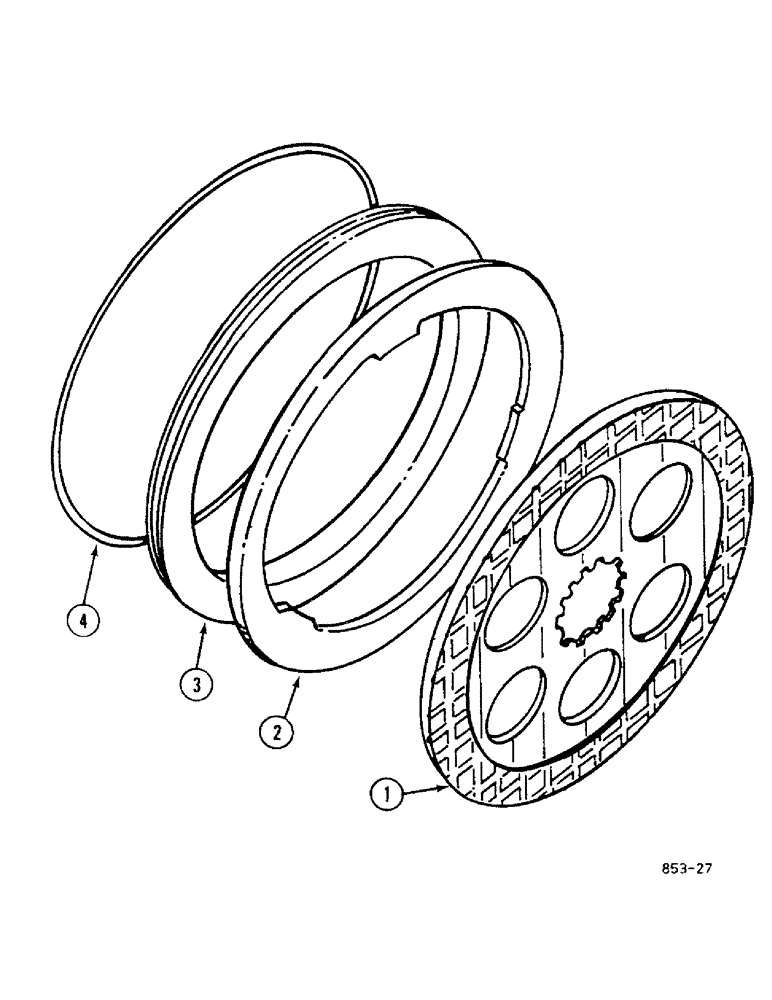

Запчасти Case IH 685 (7-546) - BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

2шт.

2

399736R3

RING

2шт.

3

114621C1

PISTON

PLATE actuating

2шт.

4

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

2шт.

539535R91

O-RING KIT

PACKAGE brake, O-ring service consists of : P/N's 343932R1, 21472R1, and 289506R1 below, not illustrated

1шт.

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

not illustrated

2шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

not illustrated

2шт.

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

not illustrated

2шт.
