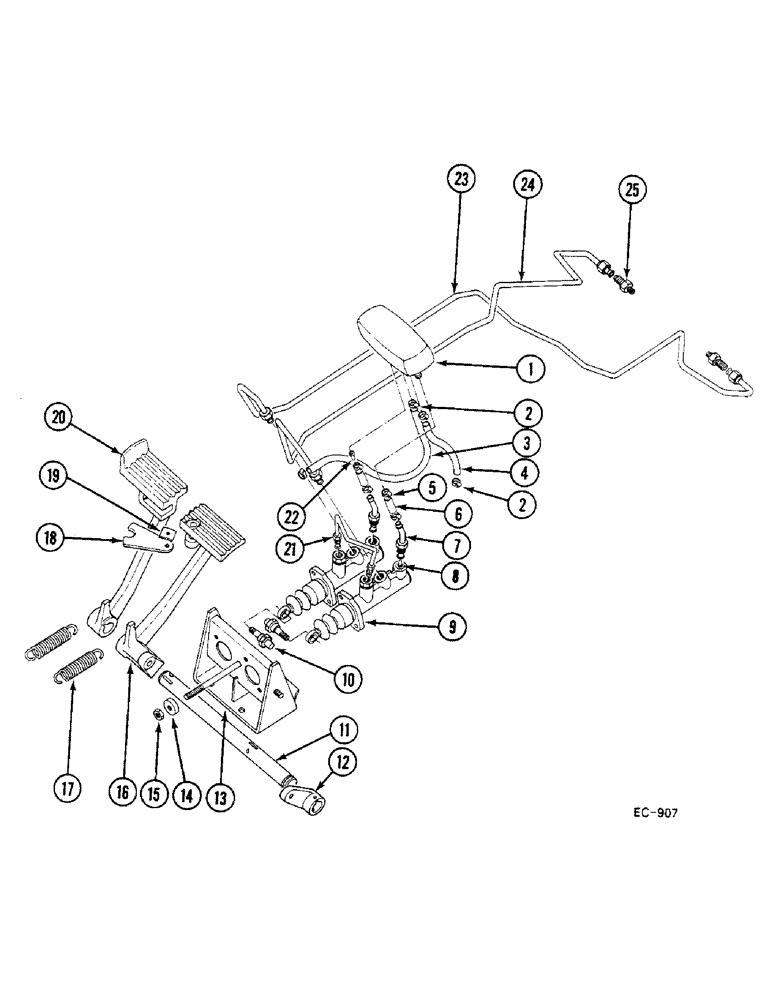

Запчасти Case IH 685 (7-542) - BRAKE CYLINDER AND CONNECTIONS (07) - BRAKES

1

3129644R1

RESERVOIR

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

2шт.

3074617R1

CLAMP

HOSE, optional

2шт.

3

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

1шт.

4

1288340C1

HOSE

DUMP

1шт.

5

3125239R1

COLLAR

HOSE

6шт.

6

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

if so equipped

2шт.

7

98804C1

BRAKE LINE

TUBE ASSY., right

1шт.

7

98805C1

BRAKE LINE

TUBE ASSY., left

1шт.

8

537849R2

SCREEN

ASSY., with orifice

2шт.

9

1287843C91

MASTER CYLINDER

CYLINDER,MASTER

2шт.

1288242C1

BELLOWS

BOOT

1шт.

1288228C1

REPAIR KIT

SEALS

1шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

10

399744R1

BOLT

BOLT adjusting

2шт.

103321

LOCK WASHER,3/8"

2шт.

103026

NUT,3/8"-24, G5

2шт.

11

1500753C1

SHAFT

1шт.

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

12

1500755C1

ARM

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

13

1287805C1

BRACKET

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

14

2726699R1

STOP

1шт.

15

894980H1

LOCK NUT

1шт.

16

3125226R91

PEDAL ASSY.

LEFT

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

17

3125230R1

SPRING

2шт.

18

43751DB

LATCH, PEDALS

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1шт.

19

51293D

SPRING

leaf

1шт.

20

1500752C1

PEDAL

RIGHT

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

21

1287847C2

BRAKE LINE,4.78 mm OD, 79, 65 mm Length

EQUALIZER

1шт.

22

537518R1

SCREEN

ASSY., with orifice

1шт.

23

1956753C1

PIPE

TUBE ASSY., left

1шт.

24

1282573C2

BRAKE LINE

TUBE ASSY., right

1шт.

25

3129671R1

FITTING

ADAPTOR

2шт.
