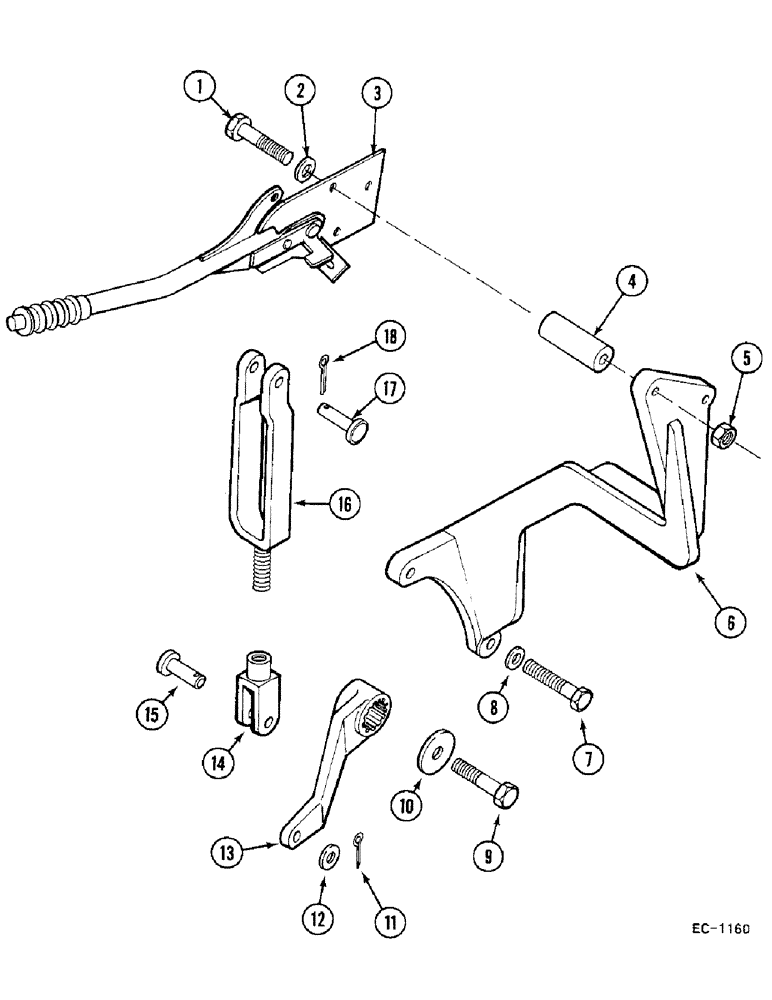

Запчасти Case IH 685 (7-540) - PARK LOCK LINKAGE - HEAVY DUTY, 685 : 18001- 885 : 18001- (07) - BRAKES

1

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 inch

1шт.

1

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

3шт.

3

1331093C2

LEVER

ASSY.

1шт.

4

25724R1

WASHER

SPACER

3шт.

5

120377

NUT,3/8" - 16, Gr 5

3шт.

6

99516C1

SUPPORT

version with cab

1шт.

7

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 inch, version with cab

3шт.

8

103321

LOCK WASHER,3/8"

Version with cab

3шт.

9

514313R1

BOLT

1шт.

10

3102893R1

WASHER

1шт.

11

934792R1

COTTER PIN,M3.2 x 20

3.2 x 20 mm

1шт.

12

30328R1

WASHER,M13.5 x 24.5 x 3, HT

1шт.

13

99435C2

ARM

1шт.

14

30791R1

CLEVIS

1шт.

15

30387R1

SPLIT PIN/SAFETY PIN

M10 x 30 mm

1шт.

16

1330987C2

CLEVIS

ASSY.

1шт.

17

31284R1

CLEVIS PIN

1шт.

18

934896R1

COTTER PIN,M3.2 x 20

1шт.
