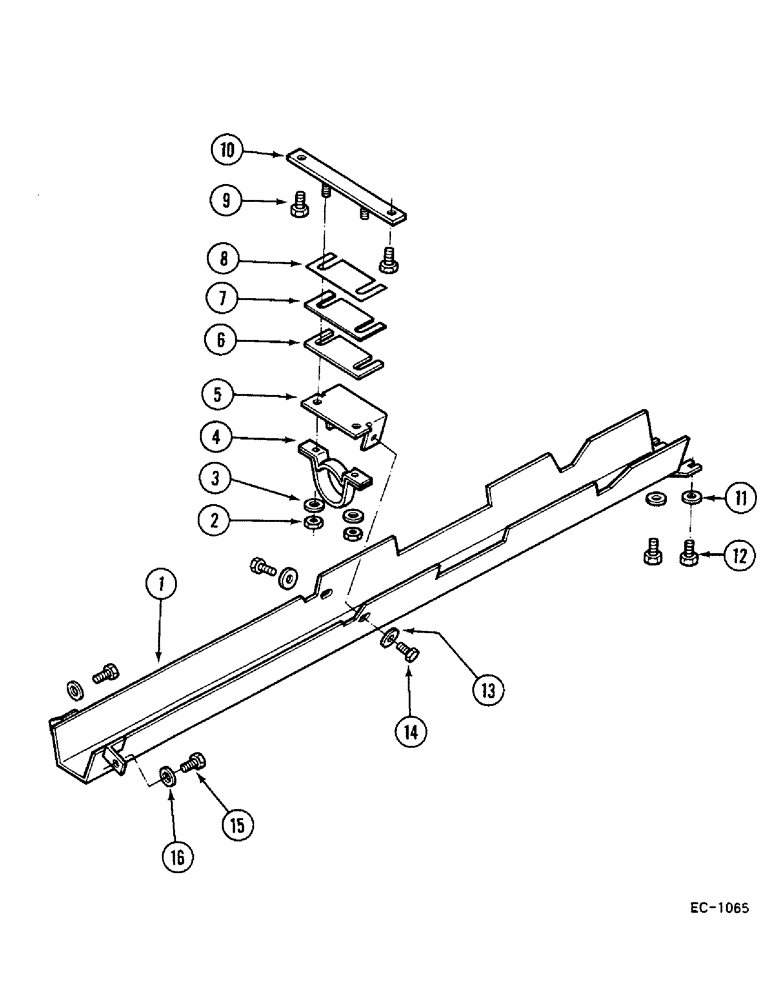

Запчасти Case IH 685 (6-522 ) - DRIVE SHAFT SHIELD - 4 WHEEL DRIVE, 685 : 18001-, 885 : 18001- (06) - POWER TRAIN

1

82213C1

GUARD ASSY.

SHIELD

1шт.

2

30168R1

NUT,M10, Cl 10

M10

2шт.

3

933348R1

WASHER,M10 x 20 x 2

10 mm

2шт.

4

82234C1

CLAMP

HOUSING

1шт.

5

82211C1

SUPPORT ASSY.

1шт.

6

82228C1

SHIM

2.0 mm

1шт.

7

82227C1

SHIM

1.0 mm

1шт.

8

82226C1

SHIM

0.5 mm

1шт.

9

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

BOLT, 1-1/8 inch

1шт.

10

89485C1

BAR ASSY.

2шт.

11

711055R1

WASHER

2шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 mm

2шт.

13

3058250R1

WASHER

8 mm

2шт.

14

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 mm

2шт.

16

933348R1

WASHER,M10 x 20 x 2

10 mm

2шт.
