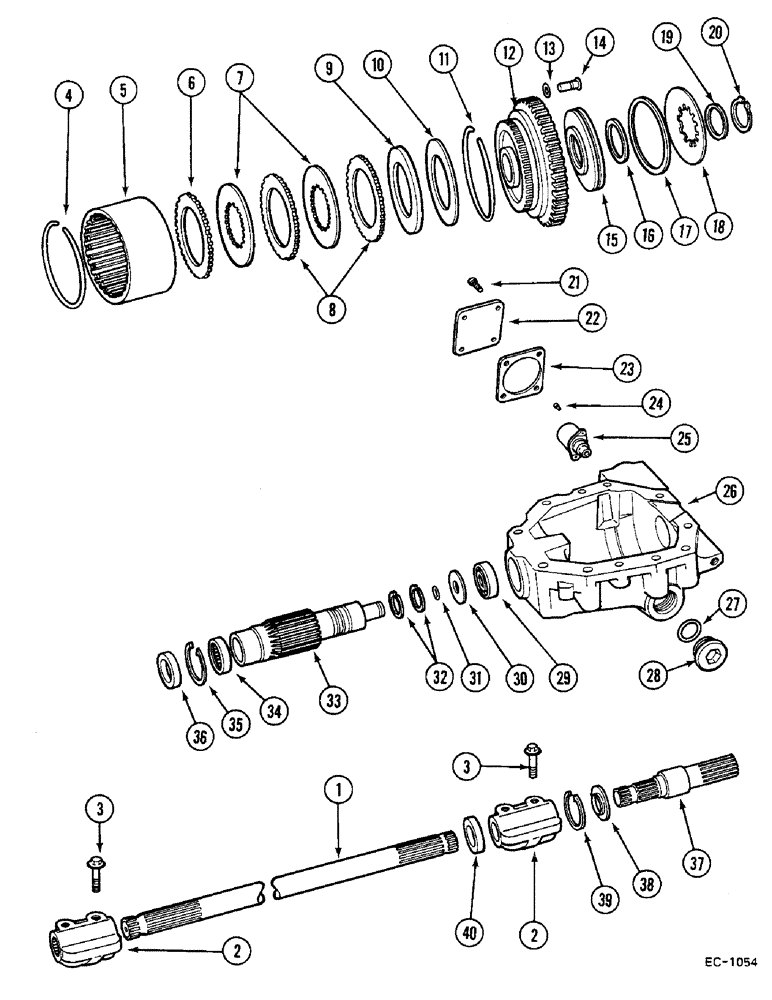

Запчасти Case IH 685 (6-516) - TRANSFER GEARBOX - 4 WHEEL DRIVE (06) - POWER TRAIN

82360C91

DRIVE

GEARBOX, APL 330, Includes: Ref. 1A, 2A, 3, 4, 5A, 6-36, 37A, 38 and 39

1шт.

82631C91

DRIVE

GEARBOX ASSY., APL 335, Includes: Ref. 1B, 2B, 3, 4, 5B, 6-36, 37B, 38 and 39

1шт.

82632C2

GASKET

1шт.

141284

PIN,25.4mm OD x 31.75mm L

2шт.

25658R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 8

5шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

4шт.

26273R1

WASHER

4шт.

1

1335030C1

DRIVE SHAFT

APL 330

1шт.

1

1335031C1

DRIVE SHAFT

APL 335

1шт.

2

90031C2

SPLINED COUPLING,21T

APL 330

2шт.

2

90030C2

FERRULE

COUPLING, APL 335

2шт.

3

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

BOLT

4шт.

4

81190C1

RING, SNAP

RING SNAP retaining

1шт.

5

81184C1

RING CARRIER

gears, APL 330

1шт.

5

81193C1

RING CARRIER

gears, APL 335

1шт.

6

81189C1

WASHER

WASHER

1шт.

7

81187C1

DRIVEN PLATE

8шт.

8

81188C1

DRIVE PLATE

9шт.

9

81183C1

WASHER

WASHER

1шт.

10

81186C1

WASHER

4.0 mm

1шт.

11

81185C1

CIRCLIP

RING retaining

1шт.

12

81174C1

GEAR

1шт.

13

81179C1

O-RING,1.5mm Thk x 7mm ID, 70 Duro

3шт.

14

81178C1

LARGE PIN,17mm OD x 34.7mm L

PIN, LARGE BOLT

3шт.

15

81175C1

PISTON

1шт.

16

81176C1

PACKING RING

1шт.

17

81177C1

RING,Square, 2.5mm Thk x 107mm ID

1шт.

18

81180C1

SPRING

1шт.

19

81181C1

RING

retaining

1шт.

20

933283R1

SNAP RING,M45, Ext

1шт.

21

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT, M8 x 25 mm

4шт.

22

81173C1

COVER

1шт.

23

81172C1

PACKING RING

1шт.

24

930974R1

HEX SOC SCREW,M5 x 10mm, Cl 8.8

2шт.

25

81171C1

VALVE

1шт.

26

81170C1

CASE

HOUSING

1шт.

27

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

1шт.

28

905476R1

PLUG

M36

1шт.

29

81088C1

BEARING, ROLLER

1шт.

30

81089C1

THRUST WASHER

1шт.

31

81182C1

RING

1шт.

32

81191C1

SEALING RING

2шт.

33

81192C1

SHAFT

drive

1шт.

34

81093C1

BEARING, ROLLER

1шт.

35

933086R1

SNAP RING,M30, Ext

Retaining

1шт.

36

81086C1

OIL SEAL

oil

1шт.

37

81158C1

SHAFT

APL 330

1шт.

37

81194C1

SHAFT

APL 335

1шт.

38

81087C1

RING, SNAP

RING SNAP retainer

1шт.

39

934443R1

SNAP RING,M58, Int

retaining

1шт.

40

82236C91

BEARING ASSY

ASSY.

1шт.
