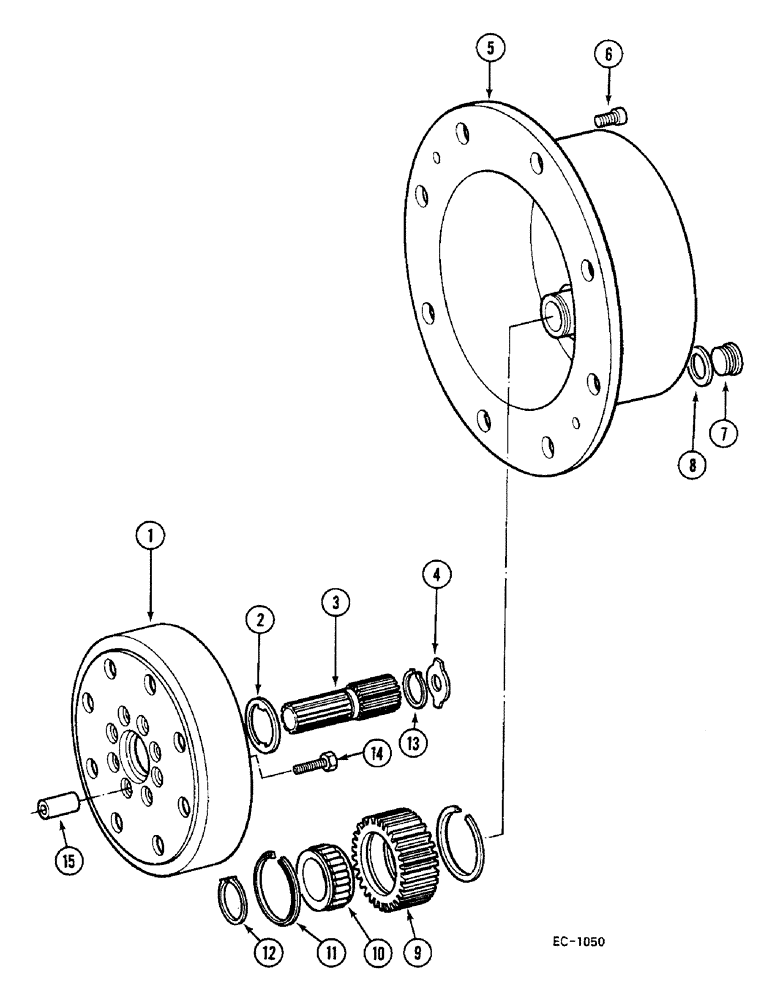

Запчасти Case IH 685 (6-508) - HUB PLANETARY DRIVE - 4 WHEEL DRIVE (06) - POWER TRAIN

81445C91

GEAR WHEEL

DRIVE ASSY., APL-330, Includes: Ref. 1 - 15

1шт.

1

81434C1

HUB

2шт.

2

81436C1

THRUST WASHER

2шт.

3

81435C1

SUN GEAR

SHAFT

2шт.

4

81328C1

THRUST WASHER

1.5 mm

2шт.

81329C1

THRUST WASHER

2.0 mm

2шт.

81330C1

THRUST WASHER

2.5 mm

2шт.

81331C1

THRUST WASHER

1.0 mm

2шт.

81332C1

THRUST WASHER

1.7 mm

2шт.

81333C1

THRUST WASHER

2.2 mm

2шт.

5

81437C1

PINION CARRIER

GEAR CARRIER

2шт.

6

81334C1

HEX SOC SCREW,M10 x 20mm

4шт.

7

933799R1

PLUG,Hex Soc, M24 x 1.5

2шт.

8

A52097

O-RING,2mm Thk x 21mm ID

2шт.

9

81325C1

GEAR

6шт.

10

81326C1

BEARING, ROLLER,36mm ID x 56.3mm OD x 20mm W

6шт.

11

81327C1

RING

12шт.

12

933086R1

SNAP RING,M30, Ext

Retaining

6шт.

13

933113R1

SNAP RING,M35, Ext, Hvy

RING retaining

2шт.

14

81432C1

BOLT,Lock, M10 x 45mm

SCREW

16шт.

15

81431C1

BUSHING

SLEEVE

16шт.
