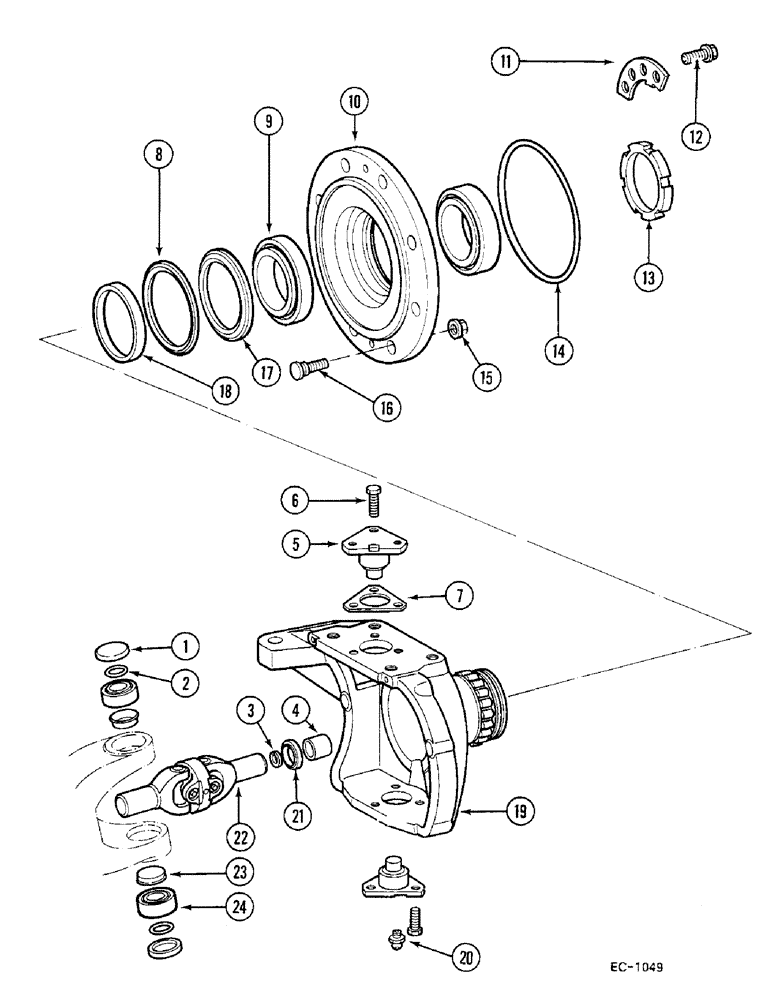

Запчасти Case IH 685 (6-504) - STEERING KNUCKLE - 4 WHEEL DRIVE (06) - POWER TRAIN

81290C91

HOUSING

knuckle, APL-335, Includes: Ref. 1 - 24

1шт.

1

81295C1

CAP

4шт.

2

81296C1

O-RING,40mm ID x 3mm Width

4шт.

3

81286C1

SNAP RING

retaining

2шт.

4

81306C1

SLEEVE

2шт.

5

81305C1

PIVOT

PIN

4шт.

6

931590R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

BOLT

12шт.

7

81297C1

SHIM,51mm ID x 77mm OD x 0.6mm Thk

0.6 mm

2шт.

81298C1

SHIM

1.0 mm

2шт.

81299C1

SHIM,51mm ID x 77mm OD x 1.4mm Thk

1.4 mm

2шт.

81300C1

SHIM

1.6 mm

2шт.

81301C1

SHIM

1.8 mm

2шт.

81302C1

SHIM

2.0 mm

2шт.

81303C1

SHIM,51mm ID x 94mm OD x 0.4mm Thk

0.4 mm

2шт.

81304C1

SHIM,51mm ID x 77mm OD x 0.8mm Thk

0.8 mm

2шт.

8

81311C1

SCRAPER RING

2шт.

9

81312C1

ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm

roller

4шт.

10

81308C1

HUB

2шт.

11

81315C1

LOCK WASHER

PLATE

2шт.

81316C1

LOCK WASHER

PLATE

2шт.

12

31053R1

BOLT,Hex Flange, M8 x 1.25 x 16mm, Grade 8.8

BOLT

12шт.

13

81314C1

SLOTTED NUT

2шт.

14

81313C1

O-RING,200mm ID

2шт.

15

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

16шт.

16

81317C1

STUD

16шт.

17

81310C1

SEALING RING

2шт.

18

81309C1

SLEEVE

2шт.

19

81291C1

HOUSING

left

1шт.

81292C1

HOUSING

right

1шт.

20

A52371

FITTING

LUBRICATOR

4шт.

21

81288C1

SEAL

2шт.

22

81307C1

SPIDER ,U-JOINT

JOINT, SPIDER

2шт.

23

81293C1

CAP

4шт.

24

81294C1

BEARING, ROLLER

4шт.
