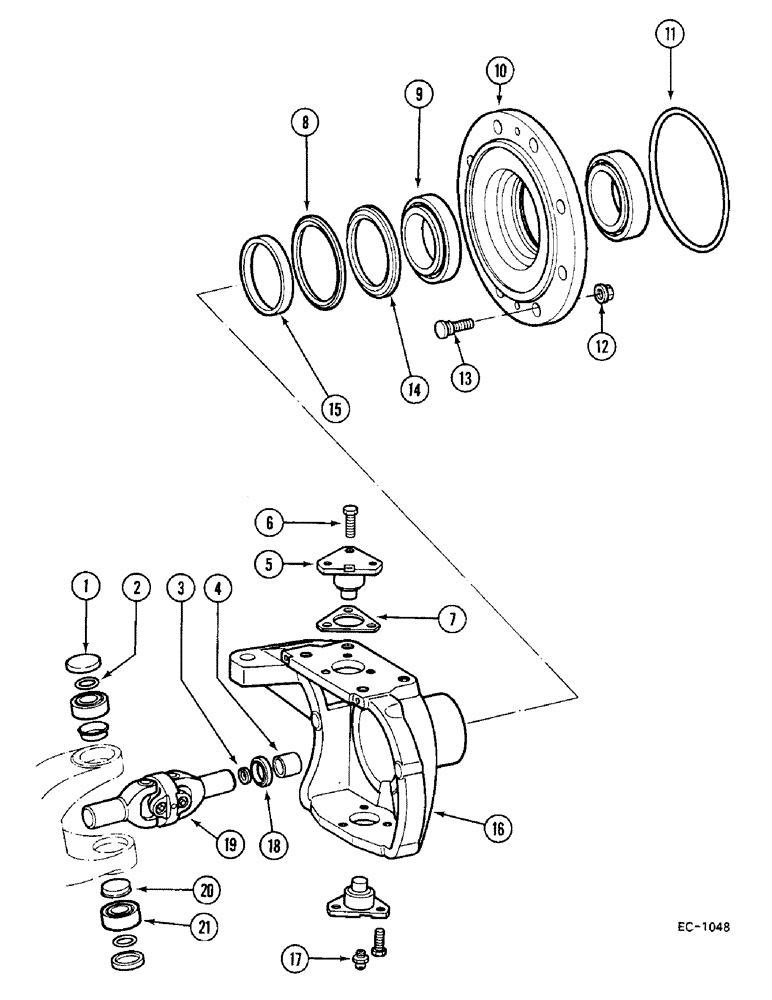

Запчасти Case IH 685 (6-500) - STEERING KNUCKLE - 4 WHEEL DRIVE (06) - POWER TRAIN

81444C91

HOUSING ASSY.

knuckle, APL 330, Includes: Ref. 1 - 22

1шт.

1

81418C1

CAP

4шт.

2

81419C1

O-RING,2.5mm Thk x 34mm ID, 70 Duro

4шт.

3

81409C1

RING, SNAP

RING SNAP retaining

2шт.

4

81429C1

BUSHING

SLEEVE

2шт.

5

81428C1

KNUCKLE

PIN

4шт.

6

931590R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

BOLT

12шт.

7

81420C1

SHIM

0.6 mm

2шт.

81421C1

SHIM

1.0 mm

2шт.

81422C1

SHIM

1.4 mm

2шт.

81423C1

SHIM

1.6 mm

2шт.

81424C1

SHIM

1.8 mm

2шт.

81425C1

SHIM

2.0 mm

2шт.

81426C1

SHIM

0.4 mm

2шт.

81427C1

SHIM

0.8 mm

2шт.

8

81311C1

SCRAPER RING

2шт.

9

81312C1

ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm

roller

4шт.

10

81308C1

HUB

2шт.

11

81313C1

O-RING,200mm ID

2шт.

12

905667R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

16шт.

13

81317C1

STUD

16шт.

14

81310C1

SEALING RING

2шт.

15

81309C1

SLEEVE

2шт.

16

81413C1

HOUSING

1шт.

81414C1

STEERING KNUCKLE

HOUSING

1шт.

17

A52371

FITTING

LUBRICATOR

4шт.

18

81411C1

SEAL ASSY.

2шт.

19

81430C1

JOINT ASSY.

2шт.

20

81415C1

CAP

4шт.

21

81416C1

BEARING, ROLLER

cup

4шт.

81417C1

BEARING, ROLLER

cone

4шт.
