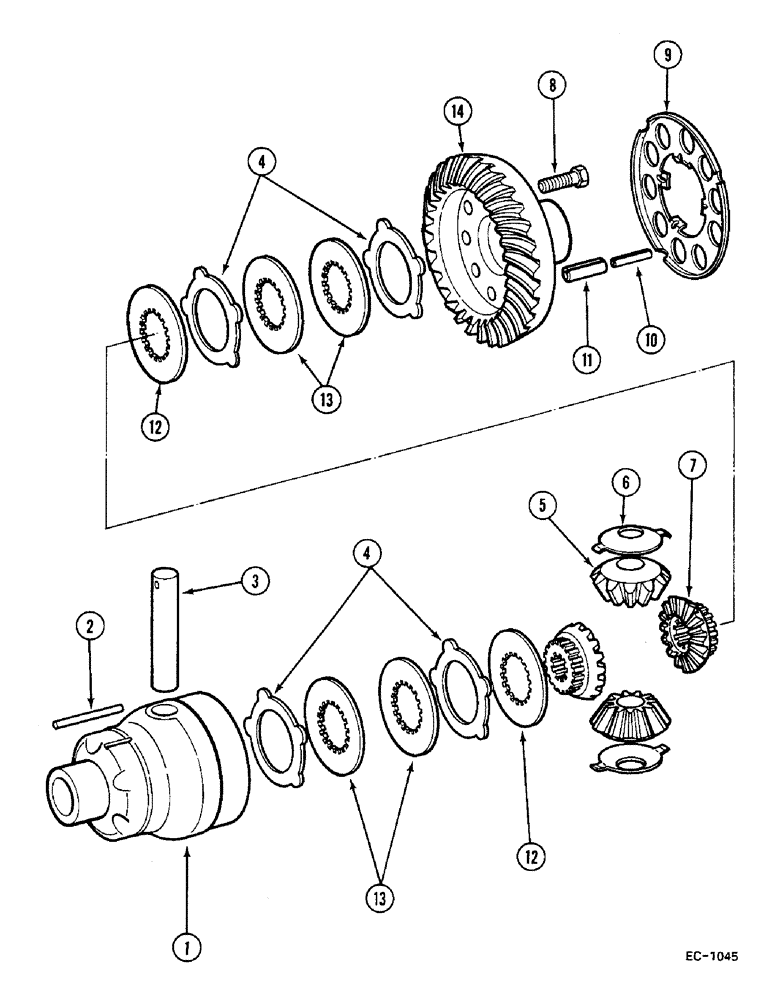

Запчасти Case IH 685 (6-490) - DIFFERENTIAL - 4 WHEEL DRIVE, (A) APL 330, (B) APL 335 (06) - POWER TRAIN

81440C91

DIFFERENTIAL

APL-330, Includes: Ref. 1A, 2, 3, 4, 5A, 6, 7A, and 8 through 13

1шт.

81236C91

DIFFERENTIAL

APL-335, Includes: Ref. 1B, 2, 3, 4, 5B, 6, 7B, and 8 through 13

1шт.

1

81441C1

HOUSING

CASE, APL-330

1шт.

1

81237C1

CASE

APL-335

1шт.

2

932183R1

LOCK PIN,M5 x 50, Slotted

5 x 50 mm

1шт.

3

81252C1

AXLE DIFFERENTIAL

PIN

1шт.

4

81238C1

DISC,46mm ID x 79mm OD x 1.2mm Thk

1.2 mm

10шт.

81239C1

DISC

1.1 mm

10шт.

81240C1

DISC

1.3 mm

10шт.

81241C1

DISC

1.4 mm

10шт.

5

81403C1

CONE PINION

GEAR, APL-330

2шт.

5

81250C1

GEAR

APL-335

2шт.

6

81251C1

THRUST WASHER

2шт.

7

81442C1

CONE PINION

GEAR, APL-330

2шт.

7

81249C1

GEAR

APL-335

2шт.

8

931369R1

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

BOLT

10шт.

9

81253C1

PLATE

locking

1шт.

10

932671R1

LOCK PIN,M6 x 30, Slotted

5шт.

11

Q2948

LOCK PIN,M10 x 30, Slotted

5шт.

12

81243C1

THRUST WASHER

3.0 mm

2шт.

81244C1

THRUST WASHER

2.8 mm

2шт.

81245C1

THRUST WASHER

2.9 mm

2шт.

81246C1

THRUST WASHER

3.1 mm

2шт.

81247C1

THRUST WASHER

3.2 mm

2шт.

81248C1

THRUST WASHER

3.3 mm

2шт.

13

81242C1

SHIM

8шт.

14

NSS

NOT SOLD SEPARAT

GEAR, see drive assembly - 4 wheel drive

1шт.
