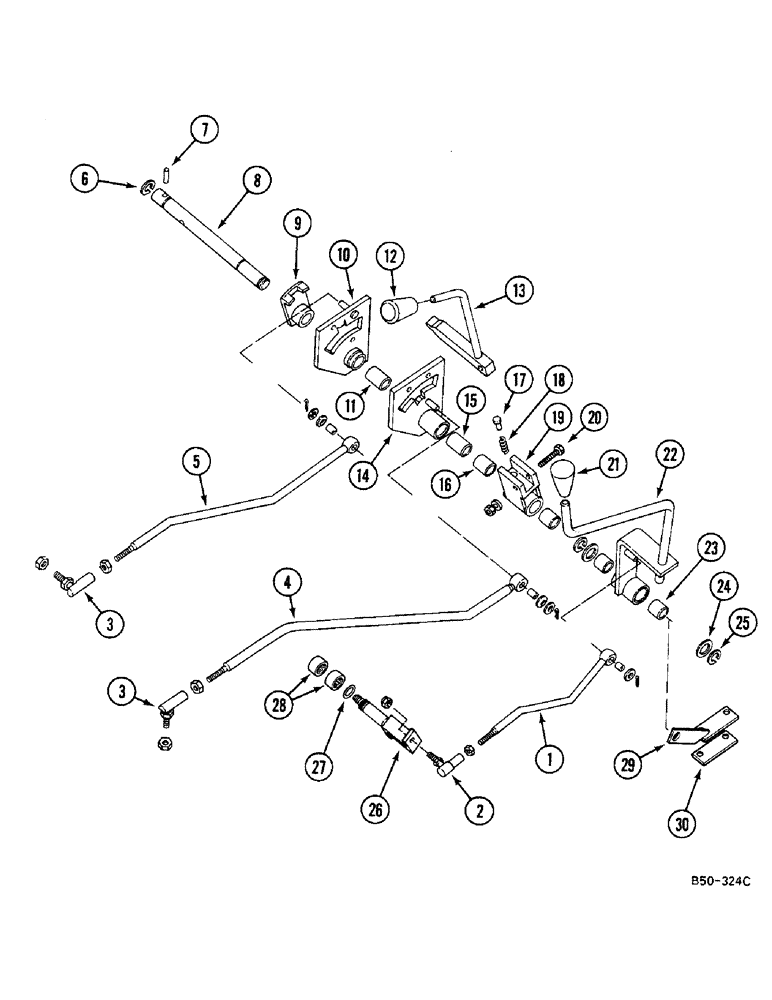

Запчасти Case IH 685 (6-434) - TRANSMISSION CONTROL - EXTERNAL - WITH FORWARD AND REVERSE (06) - POWER TRAIN

1

3129232R91

ROD ASSY.

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

83723R1

WAVE WASHER

1шт.

Q3641

WASHER

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

2

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

1шт.

231-4617

LOCK NUT,7/16"-20, GB

1шт.

702455

NUT

optional

1шт.

3

653867C1

BALL JOINT

2шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

Q3641

WASHER

4шт.

3048059R91

LOCK NUT

2шт.

4

3129226R91

ROD ASSY.

3rd and 4th speed

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

83723R1

WAVE WASHER

1шт.

Q3641

WASHER

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

5

3129222R91

ROD ASSY.

1st and 2nd speed

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

83723R1

WAVE WASHER

1шт.

Q3641

WASHER

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

6

454331R1

SNAP RING,#87, Ext

1шт.

7

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

8

3129270R1

SHAFT

1шт.

9

98573C1

LEVER

GATE ASSY.

1шт.

10

3129211R91

LEVER ASSY.

1st and 2nd speed

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

12

3129267R1

BALL KNOB

1шт.

13

3129265R2

LEVER

speed

1шт.

14

3129217R91

LEVER ASSY.

3rd and 4th speed

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

16

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

17

22938R1

HEADED PIN,5/16" x 1/2"

1шт.

18

71486C1

SPRING

1шт.

19

3129214R92

HOUSING ASSY.

1шт.

20

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

1шт.

95-11041

WASHER,3/8"

1шт.

9413979

LOCK NUT,3/8"-16, GC

lock

1шт.

21

3129267R1

BALL KNOB

range lever

1шт.

22

3129271R94

LEVER ASSY.

range

1шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

24

615192R1

WASHER

2шт.

25

454331R1

SNAP RING,#87, Ext

2шт.

26

1289948C1

ARM

1шт.

21018R1

WASHER

SHIM, .030 inch

1шт.

19605R1

LOCK NUT,1/2"-13, GB

1шт.

27

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

1шт.

28

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

2шт.

29

1287659C1

SUPPORT

BRACKET

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

BOLT

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

30

1287660C1

PLATE

1шт.
