Запчасти Case IH 685 (6-426) - TRANSMISSION CONTROL - EXTERNAL (06) - POWER TRAIN

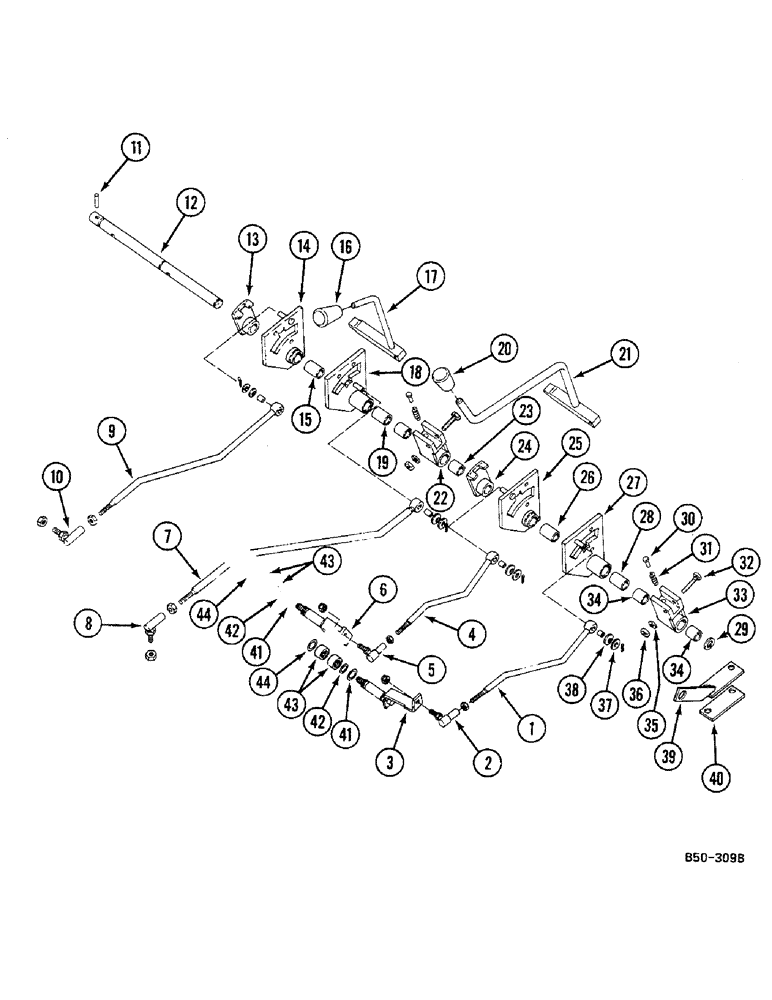

Схема запчастей Case IH 685 - (6-426) - TRANSMISSION CONTROL - EXTERNAL (06) - POWER TRAIN
40
43
14
41
6
37
31
30
32
24
11
36
22
21
5
17
43
15
26
44
13
12
41
2
1
10
42
34
25
7
44
4
34
38
18
33
35
39
23
27
9
29
3
8
20
42
19
28
16

Артикул

Название

Примечание

Количество

1

3129228R91

ROD ASSY.

range shift, front

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

2

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

1шт.

231-4617

LOCK NUT,7/16"-20, GB

1шт.

702455

NUT

optional

1шт.

3

1289946C1

ARM

1шт.

19605R1

LOCK NUT,1/2"-13, GB

1шт.

4

3129232R91

ROD ASSY.

range shift, rear

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

5

1500497C1

BALL JOINT

1шт.

1500536C1

JAM NUT

1шт.

231-4617

LOCK NUT,7/16"-20, GB

1шт.

702455

NUT

optional

1шт.

6

1289948C2

ARM

1шт.

19605R1

LOCK NUT,1/2"-13, GB

1шт.

7

3129226R91

ROD ASSY.

3rd and 4th speed, speed train type B, E

1шт.

7

3129224R91

ROD

ASSY., 3rd and 4th speed, speed train type A, D

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

8

653867C1

BALL JOINT

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

Q3641

WASHER

2шт.

3048059R91

LOCK NUT

1шт.

9

3129222R91

ROD ASSY.

1st and 2nd speed

1шт.

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

10

653867C1

BALL JOINT

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

Q3641

WASHER

2шт.

3048059R91

LOCK NUT

1шт.

11

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

3шт.

12

3129155R2

SHAFT

SHAFT

1шт.

13

3129218R2

PLATE

GATE ASSY.

1шт.

14

3129211R91

LEVER ASSY.

1st and 2nd speed, with: Ref. 15

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

15

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

16

3129267R1

BALL KNOB

1шт.

17

3129265R2

LEVER

1шт.

18

3129217R91

LEVER ASSY.

3rd and 4th speed, with: Ref. 19, speed train type B, E

1шт.

18

3129216R91

LEVER ASSY.

3rd and 4th speed, speed train type A, D

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

19

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

20

3129267R1

BALL KNOB

range lever

1шт.

21

3129268R2

LEVER ASSY.

range

1шт.

22

3129214R92

HOUSING ASSY.

with: Ref. 23

1шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

24

98573C1

LEVER

GATE ASSY.

1шт.

25

3129210R92

LEVER

ASSY., range, rear, with: Ref. 26

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

26

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

27

3129209R91

LEVER ASSY.

range, front, with: Ref. 28

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

28

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

1шт.

29

454331R1

SNAP RING,#87, Ext

2шт.

615192R1

WASHER

1шт.

30

22938R1

HEADED PIN,5/16" x 1/2"

2шт.

31

71486C1

SPRING

2шт.

32

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

2шт.

33

3129214R92

HOUSING ASSY.

with: Ref. 34

1шт.

34

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

35

95-11041

WASHER,3/8"

2шт.

36

9413979

LOCK NUT,3/8"-16, GC

lock

2шт.

37

Q3641

WASHER

4шт.

38

83723R1

WAVE WASHER

4шт.

39

1287659C1

SUPPORT

BRACKET

1шт.

NLS

NO LONGER SERVICED

BOLT

2шт.

492-11062

BEARING WASHER,5/8"

2шт.

40

1287660C1

PLATE

1шт.

41

21018R1

WASHER

SHIM, .030 inch

2шт.

42

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

43

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

4шт.

44

21018R1

WASHER

SHIM, .030 inch

1шт.

44

16066R1

WASHER

SHIM, .060 inch

1шт.

Выбрано товаров: 72
