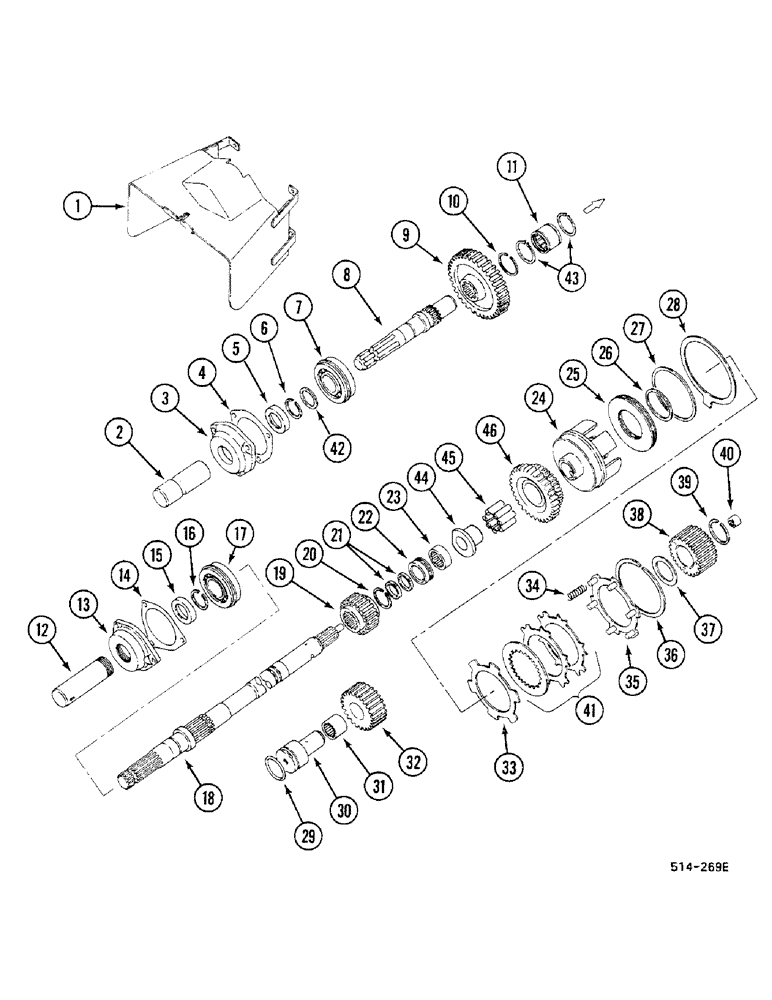

Запчасти Case IH 685 (6-404) - INDEPENDENT POWER TAKE OFF-DUAL SPEED (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

CAP

1шт.

3

1500086C1

FLANGED BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R3

GASKET

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

6

607186R1

SNAP RING,#156, Ext

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

7

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

7

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

7

67648C91

BEARING

ball, optional

1шт.

8

1500087C1

SHAFT

1шт.

9

66192C1

GEAR

38 T, driven

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

retaining

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

caged

1шт.

12

406808R1

TUBE

ASSY., lower

1шт.

13

1500086C1

FLANGED BEARING

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

14

399843R3

GASKET

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

16

607186R1

SNAP RING,#156, Ext

1шт.

17

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

17

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

17

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

17

67648C91

BEARING

ball, optional

1шт.

18

99462C1

SHAFT

ASSY., 1000 rpm 21 spline, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

18

99466C1

SHAFT

ASSY., 1000 rpm 6 spline, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

18

66180C2

SHAFT ASSY.

1000 rpm 21 spline, model 685 to Use up to S/N 13595

1шт.

18

66180C2

SHAFT ASSY.

model 885 to Use up to S/N 3401

1шт.

18

66485C1

SHAFT ASSY.

1000 rpm 6 spline, model 685 to Use up to S/N 13595

1шт.

18

66485C1

SHAFT ASSY.

model 885 to Use up to S/N 3401

1шт.

19

404232R1

GEAR

21 T

1шт.

20

336000R1

SNAP RING,#175, 1.640", Ext

retaining

1шт.

21

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

sealing, models 685 and 885 Use S/N 18001 and, Start Serial: up

2шт.

21

166972R1

RING

sealing, model 685 to Use up to S/N 13595

2шт.

21

166972R1

RING

model 885 to Use up to S/N 3401

2шт.

22

93506C1

BUSHING

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

model 685 to Use up to S/N 13595

1шт.

22

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

model 885 to Use up to S/N 3401

1шт.

23

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

needle, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

model 685 to Use up to S/N 13595

1шт.

23

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

model 885 to Use up to S/N 3401

1шт.

24

1335402C1

CUP

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

24

3125149R1

CUP

model 685 to Use up to S/N 13595

1шт.

24

3125149R1

CUP

model 885 to Use up to S/N 3401

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

25

401722R1

PISTON

1шт.

26

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing, inner

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

outer

1шт.

28

82349C1

RING

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

model 685 to Use up to S/N 13595

1шт.

28

404490R1

RING,140.25mm ID x 4.5mm Thk

model 885 to Use up to S/N 3401

1шт.

29

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

30

401726R1

SHAFT

idler

1шт.

31

570450R1

BEARING

needle

1шт.

31

528105R91

BEARING, NEEDLE

optional

1шт.

32

401727R1

PINION

GEAR, 24 T, idler

1шт.

33

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

1шт.

34

66182C1

SPRING

6шт.

35

66186C92

PLATE ASSY.

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

36

401720R1

CIRCLIP

retaining

1шт.

37

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

38

66183C2

HUB ASSY.,45T

1шт.

39

401756R1

SNAP RING,#206, 1.936", Ext

retaining

1шт.

40

82351C91

NEEDLE BEARING

models 685 and 885 Use S/N, Start Serial: 18

1шт.

40

533325R91

BEARING, NEEDLE

model 685 to Use up to S/N 13595

1шт.

40

533325R91

BEARING, NEEDLE

model 885 to Use up to S/N 3401

1шт.

40

538467R91

BEARING, NEEDLE

optional, model 685 to Use up to S/N 13595

1шт.

40

538467R91

BEARING, NEEDLE

model 885 to Use up to S/N 3401

1шт.

41

3125257R91

PACKAGE

consists of : disc and plate

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

sealing

1шт.

66182C1

SPRING

1шт.

41

66193C91

PACKAGE

consists of : 5 disc and 8 plate

1шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

sealing

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

sealing

1шт.

66182C1

SPRING

6шт.

42

1500085C1

WASHER

1шт.

43

202307R1

SNAP RING,#206, Ext

2шт.

44

82499C2

BUSHING

models 685 and 885 Use S/N 18001 and, Start Serial: up

2шт.

45

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

needle, models 685 and 885 Use S/N 18001 and, Start Serial: up

2шт.

46

82666C1

GEAR

models 685 and 885 Use S/N 18001 and, Start Serial: up

2шт.

1093096R1

PRODUCT GRAPHIC

540/1000, not illustrated

1шт.

1093098R1

PRODUCT GRAPHIC

540/1000, not illustrated

1шт.

3216769

PRODUCT GRAPHIC, not illustrated

1шт.
