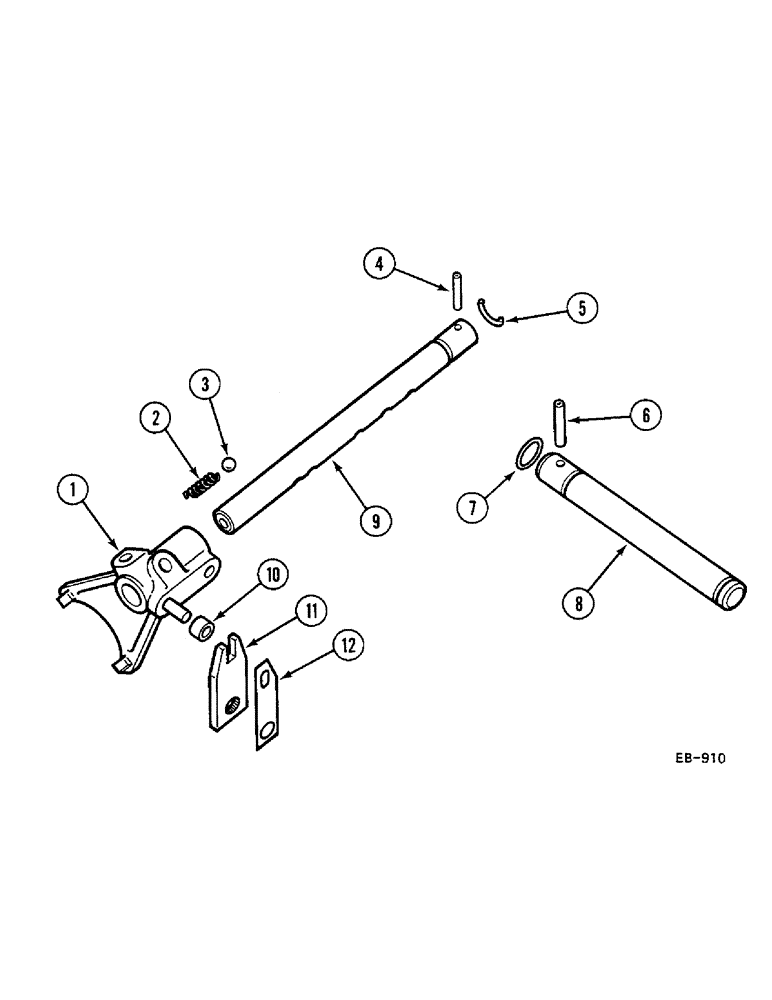

Запчасти Case IH 685 (6-394) - GEAR SHIFT MECHANISM - RANGE TRANSMISSION, VERSION WITH FORWARD AND REVERSE (06) - POWER TRAIN

1

86311C1

FORK

1шт.

2

103062C1

SPRING

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

148501C1

RING, SNAP

RING SNAP retaining

1шт.

6

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

7

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

8

3129270R1

SHAFT

1шт.

9

86304C1

RAIL

1шт.

10

1286423C1

BUSHING

1шт.

11

1286421C1

ARM

1шт.

12

86310C1

PLATE

1шт.
