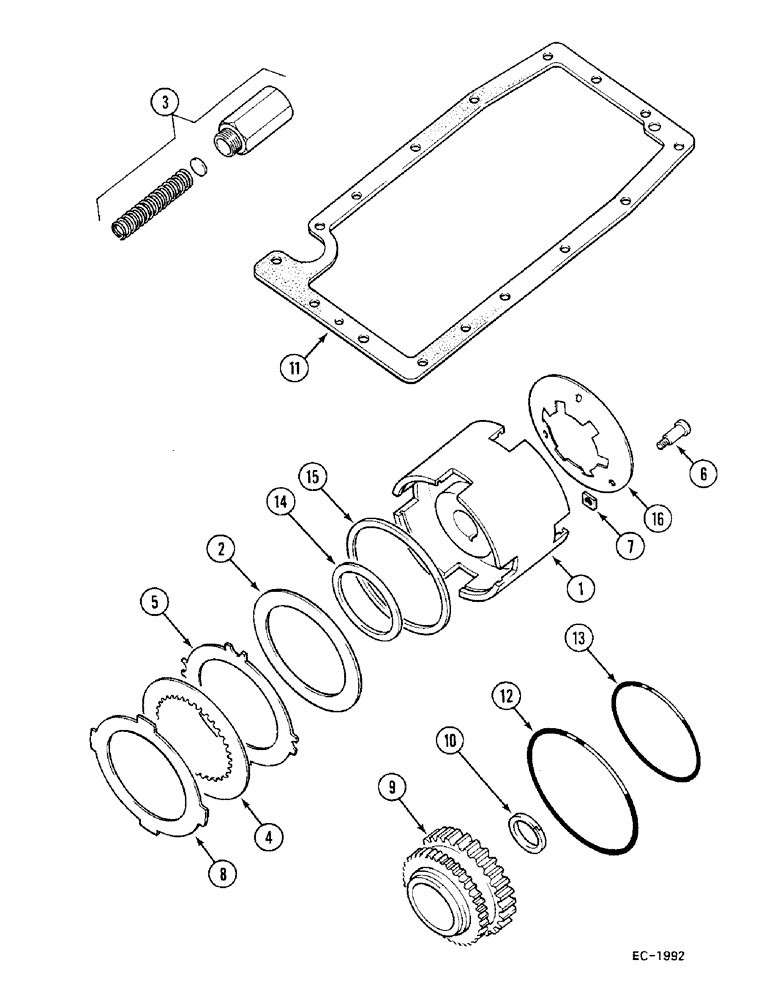

Запчасти Case IH 685 (6-374) - TORQUE AMPLIFIER HEAVY DUTY, UPDATE PACKAGE (06) - POWER TRAIN

1282783C91

PACKAGE

Includes: Ref. 1 - 16

1шт.

1

1502339C1

HOUSING

CUP

1шт.

2

1502338C91

SHIM KIT

PACKAGE

1шт.

3

1502344C93

PACKAGE

regulator valve service

1шт.

4

401716R3

DISC

driven

6шт.

5

401717R1

PLATE

4шт.

6

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT

3шт.

7

65240C1

SQUARE NUT

3шт.

8

1502340C1

PLATE

clutch backing

2шт.

9

402563R2

PINION

GEAR ASSEMBLY

1шт.

10

406275R1

RING

2шт.

11

401621R3

GASKET

1шт.

12

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

13

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

14

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

sealing

1шт.

15

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

16

402574R1

BELLEVILLE WASHER

Belleville

3шт.
