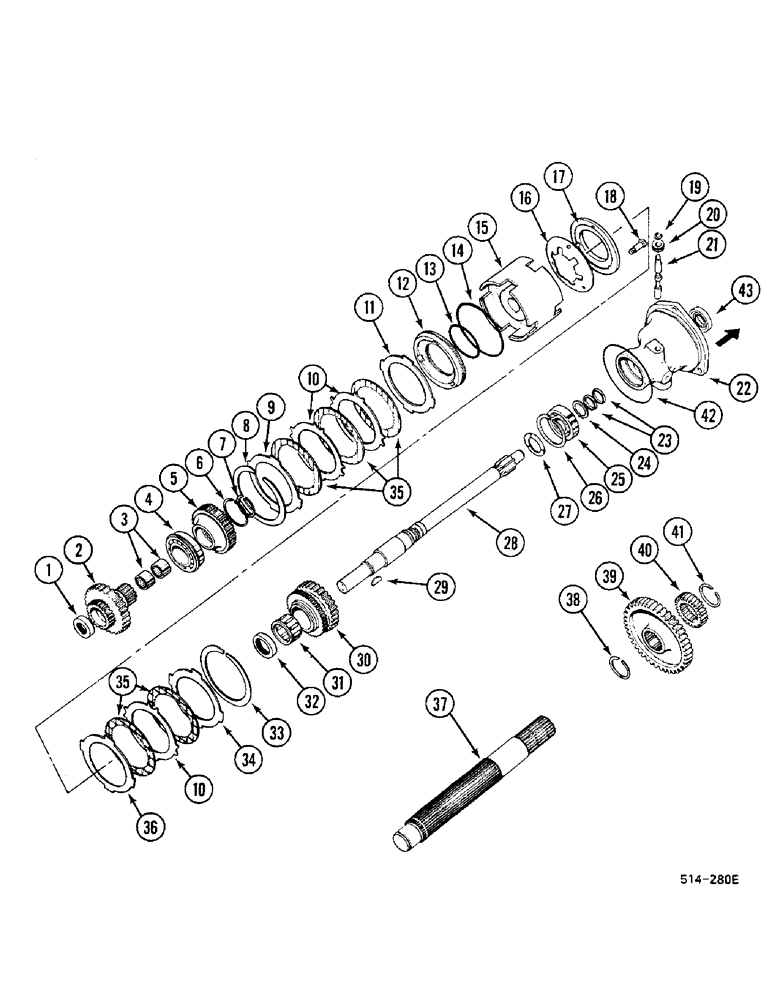

Запчасти Case IH 685 (6-366) - TWO SPEED POWER SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3118322R91
BEARING, NEEDLE
1шт.
2
3118321R2
PINION
GEAR, 28 T
1шт.
3
550839R91
BEARING, NEEDLE
2шт.
3
531436R91
NEEDLE BEARING
BEARING needle, clutch shaft optional
2шт.
4
70126C91
BALL BEARING
BEARING ball
1шт.
4
ST243
BEARING, BALL,45 mm ID x 85 mm OD x 19 mm
1шт.
4
42347D
BALL BEARING
BEARING ball
1шт.
4
398323R91
BALL BEARING
BEARING ball
1шт.
4
3066862R91
BALL BEARING
BEARING ball
1шт.
4
3067617R91
BEARING, BALL
1шт.
4
3066860R91
BALL BEARING
BEARING ball, drive gear, optional
1шт.
5
404199R3
SPROCKET ASSY.
CARRIER
1шт.
6
336000R1
SNAP RING,#175, 1.640", Ext
retaining
1шт.
7
583976R1
SNAP RING,#125, 1.179", Ext
RING retaining
1шт.
8
401720R1
CIRCLIP
retaining
1шт.
9
1502340C1
PLATE
clutch backing
1шт.
10
401717R1
PLATE
4шт.
11
402572R1
PLATE
1шт.
12
402570R1
PISTON
backing
1шт.
13
402571R1
O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk
sealing, inner
1шт.
14
401724R1
SEAL,0.551" ID x 0.07" Width
sealing, outer
1шт.
15
1502339C1
HOUSING
CUP
1шт.
16
402574R1
BELLEVILLE WASHER
Belleville
3шт.
17
402573R1
PLATE
pressure
1шт.
18
1502341C1
BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm
BOLT
3шт.
65240C1
SQUARE NUT
3шт.
402576R1
WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk
retaining
3шт.
19
896045R1
SNAP RING,#37, Ext
1шт.
20
531539R1
COLLAR
1шт.
21
536975R1
STEM
torque amplifier control
1шт.
22
98555C1
HOUSING
CAGE, models 685 and 885 Use S/N 18001 and, Start Serial: up
1шт.
22
531540R5
CAGE
Model 685 to Use up to S/N 13595
1шт.
NSS
NOT SOLD SEPARAT
Model 885 to Use up to S/N 3401
1шт.
23
85038C1
SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk
CAGE, models 685 and 885 Use S/N 18001 and, Start Serial: up
2шт.
23
406275R1
RING
model 685 to Use up to S/N 13595
2шт.
NSS
NOT SOLD SEPARAT
model 885 to Use up to S/N 3401
1шт.
24
A21619
CIRCLIP
RING scraper
1шт.
25
ST205A
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
1шт.
25
76491H
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W
1шт.
25
704769R92
BEARING, BALL,35 mm ID x 72 mm OD x 17"
1шт.
25
700311R91
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
1шт.
25
71270C91
BEARING, BALL
clutch shaft, optional
1шт.
26
377911R1
RING, SNAP
RING SNAP retaining
1шт.
27
402562R1
THRUST WASHER
1шт.
28
92757C91
SHAFT
models 685 and 885 Use S/N 18001 and, Start Serial: up
1шт.
28
1502173C91
SHAFT ASSY.
clutch, model 685 to Use up to S/N 13595
1шт.
28
1502173C91
SHAFT ASSY.
clutch, model 885 to Use, Start Serial: up
1шт.
222386
CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt
1шт.
29
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
1шт.
30
402563R2
PINION
GEAR ASSEMBLY, drive
1шт.
31
402566R1
BEARING ASSY
CLUTCH
1шт.
32
402567R91
OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk
1шт.
33
401720R1
CIRCLIP
retaining
1шт.
34
402569R1
PLATE
clutch backing
1шт.
35
401716R3
DISC
6шт.
36
402572R1
PLATE
piston backing
1шт.
37
404104R3
SHAFT
COUNTER
1шт.
38
381486R1
SNAP RING,#187, 1.759", Ext
retaining
1шт.
39
404105R1
PINION
GEAR, 42 T, driven
1шт.
40
404106R1
GEAR
27 T, pump driven
1шт.
41
381486R1
SNAP RING,#187, 1.759", Ext
retaining
1шт.
42
26969R1
O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro
1шт.
43
NSS
NOT SOLD SEPARAT
SEAL oil, order P/N 1277488C1
1шт.
1502338C91
SHIM KIT
PACKAGE, consists of : P/N 70021C1, 70022C1, and 70023C1
1шт.
70021C1
SHIM
0.356 mm, not illustrated
2шт.
70022C1
SHIM,98.6mm ID x 125.98mm OD x 0.64mm Thk
0.610 mm, not illustrated
2шт.
70023C1
SHIM,98.6mm ID x 125.98mm OD x 0.89mm Thk
0.914 mm, not illustrated
2шт.
1277488C2
SEAL KIT
PACKAGE seals, consists of : 2 sleeves, 1 oil seal, clutch shaft, not illustrated
1шт.
355740R1
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
not illustrated
1шт.
3129030R2
SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk
not illustrated
1шт.
Выбрано товаров: 71
