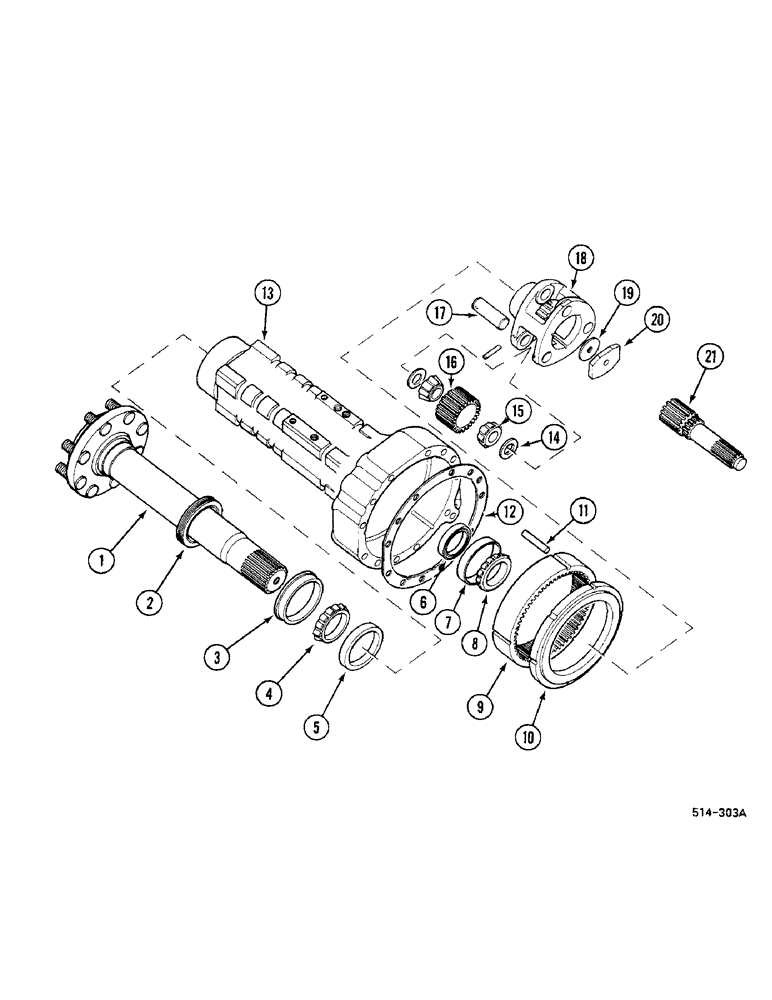

Запчасти Case IH 685 (6-362) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

1

404345R13

HALF SHAFT

AXLE ASSEMBLY

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT

16шт.

3047575R3

NUT,Wheel, 5/8"-18

16шт.

1

527353R11

AXLE, REAR

AXLE REAR ASSEMBLY, row crop

2шт.

2

105471C1

OIL SEAL

outer

2шт.

3

399796R1

SLEEVE

SLEEVE

2шт.

4

ST2130

BEARING ASSY,3.0625" ID x 4.7812" OD x 0.9688"

ASSEMBLY

2шт.

4

384695R91

BEARING ASSY

ASSEMBLY

2шт.

4

384734R91

BEARING ASSY,4.7812" ID x 3.0625" OD x 0.9688, 0.6875"

outer, optional

2шт.

5

NSS

NOT SOLD SEPARAT

BEARING cup, Order ST P/N's 2130/384695R91, 384734R91

2шт.

6

399798R91

OIL SEAL

2шт.

6

530102R91

OIL SEAL

optional, inner

2шт.

7

NSS

NOT SOLD SEPARAT

BEARING cup, Order P/N's 972467R91, 399799R91

2шт.

8

972467R91

BEARING ASSY

ASSEMBLY

2шт.

8

399799R91

BEARING ASSY,2.75" ID x 4.4375" OD x 1, 0.75"

ASSEMBLY, optional, inner

2шт.

9

535317R1

GEAR, RING

RING, GEAR 66 T

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529686R1

DOWEL

6шт.

12

399762R3

GASKET

2шт.

13

99452C1

AXLE CARRIER

left

1шт.

13

99451C1

AXLE CARRIER

right

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

BOLT

22шт.

13

93941C1

AXLE CARRIER

left

1шт.

13

93942C1

AXLE CARRIER

right, row crop

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

20шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

BOLT

2шт.

14

65421C2

SHIM KIT

PACKAGE

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

12шт.

16

66128C2

PINION

GEAR planet

6шт.

17

399812R1

SHAFT

PIN

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

114613C1

CARRIER

GEARS

2шт.

19

65422C1

SHIM KIT

PACKAGE

1шт.

20

399748R1

SPACER

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

BOLT

2шт.

21

404343R1

SHAFT

right

1шт.

21

404342R1

SHAFT

left

1шт.
