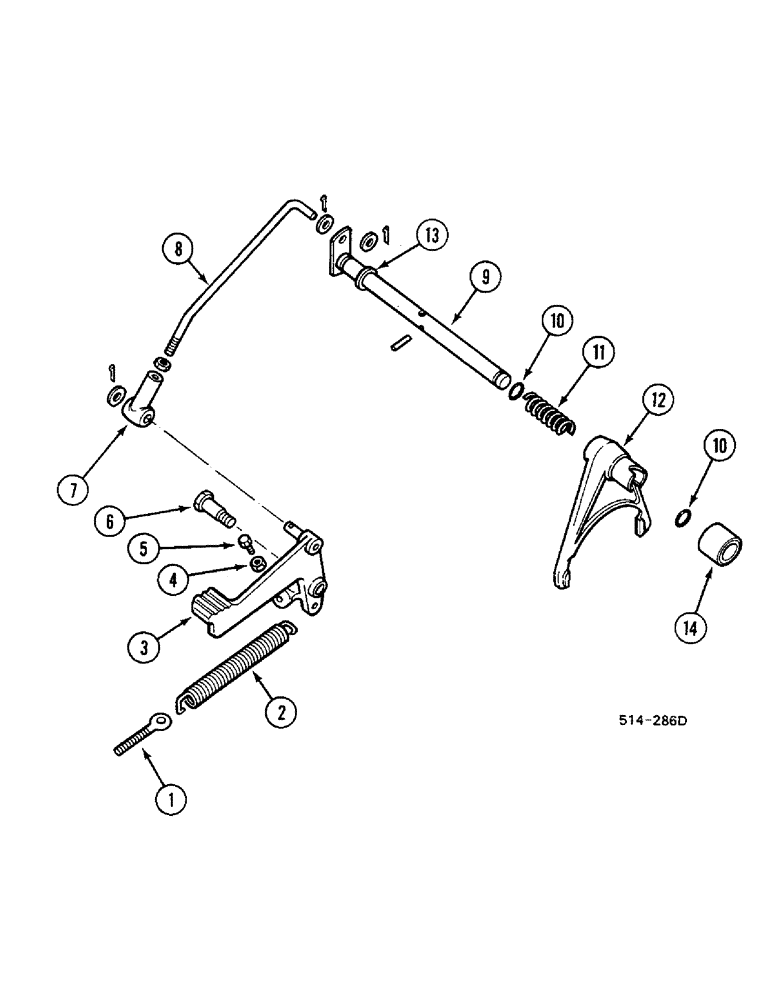

Запчасти Case IH 685 (6-354) - DIFFERENTIAL LOCK, VERSION WITHOUT CA (06) - POWER TRAIN

1

3121850R1

EYEBOLT,3/8" - 16 x 3"

BOLT, EYE

1шт.

102635

NUT,3/8"-16, G5

2шт.

2

3121849R2

SPRING

1шт.

3

66441C1

PEDAL

1шт.

11002VA

WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

3

3121562R1

PEDAL

for 4 wheel drive tractors, model 685 to Use up to S/N 13595

1шт.

3

3121562R1

PEDAL

model 885 to Use up to S/N 3401

1шт.

3121567R1

WASHER

1шт.

11002VA

WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

109084

NUT,1/4"-20, G5

1шт.

5

1282707C1

BOLT,1/4" - 20 x 1", Full Thd

BOLT

1шт.

6

527885R1

BOLT

BOLT

1шт.

7

527880R1

END

1шт.

8

527879R1

ROD

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

9

1289507C1

SHAFT

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

1500388C2

PIN

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

1шт.

9

1500384C1

SHAFT ASSY.

model 685 to Use up to S/N 13595

1шт.

9

1500384C1

SHAFT ASSY.

model 885 to Use up to S/N 3401

1шт.

1500388C2

PIN

1шт.

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

Q3501

WASHER

1шт.

10

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

11

527878R1

SPRING

1шт.

12

1500386C1

FORK

ASSY.

1шт.

13

551658R1

WASHER

1шт.

Q3501

WASHER

1шт.
