Запчасти Case IH 685 (6-350) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN

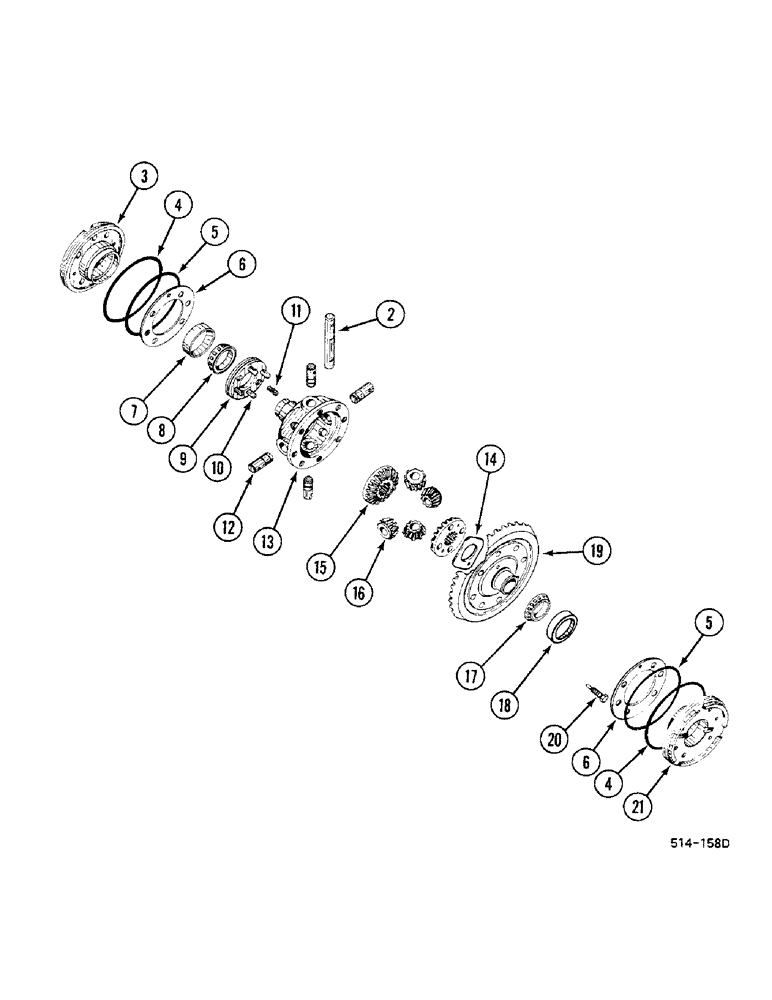

Схема запчастей Case IH 685 - (6-350) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN
3
20
11
13
19
12
17
15
6
18
16
10
8
9
2
5
6
14
21
4
7
5
4

Артикул

Название

Примечание

Количество

3

399770R2

BEARING CARRIER

BEARING carrier, right

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1- 1/2 inch

4шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

BEARING carrier

2шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

SEAL bearing carrier

2шт.

6

65419C1

BEARING CARRIER

package

1шт.

7

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

ASSY.

1шт.

7

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

ASSY., right, optional

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING cone, Order P/N's 105504H, 402353R91

1шт.

9

399764R11

LOCKING RING

1шт.

10

399765R1

PIN

4шт.

11

400867R1

SPRING

2шт.

12

399804R1

PIN

4шт.

13

399763R1

PINION CARRIER

GEAR CARRIER

1шт.

14

399778R1

THRUST WASHER

thrust, bevel gear

1шт.

15

404336R1

PINION

GEAR, 20 T

2шт.

16

399776R1

PINION

GEAR, 10 T

4шт.

17

399766R91

ROLLER BEARING

BEARING ASSY.

1шт.

17

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

ASSY., left, optional

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING cup, Order P/N's 105502H, 399766R91

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR, see range transmission, in rear, frame

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT

4шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1 - 1/2 inch

4шт.

21

399769R2

BEARING CARRIER

BEARING carrier, left

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1 - 1/2 inch

4шт.

Выбрано товаров: 24
