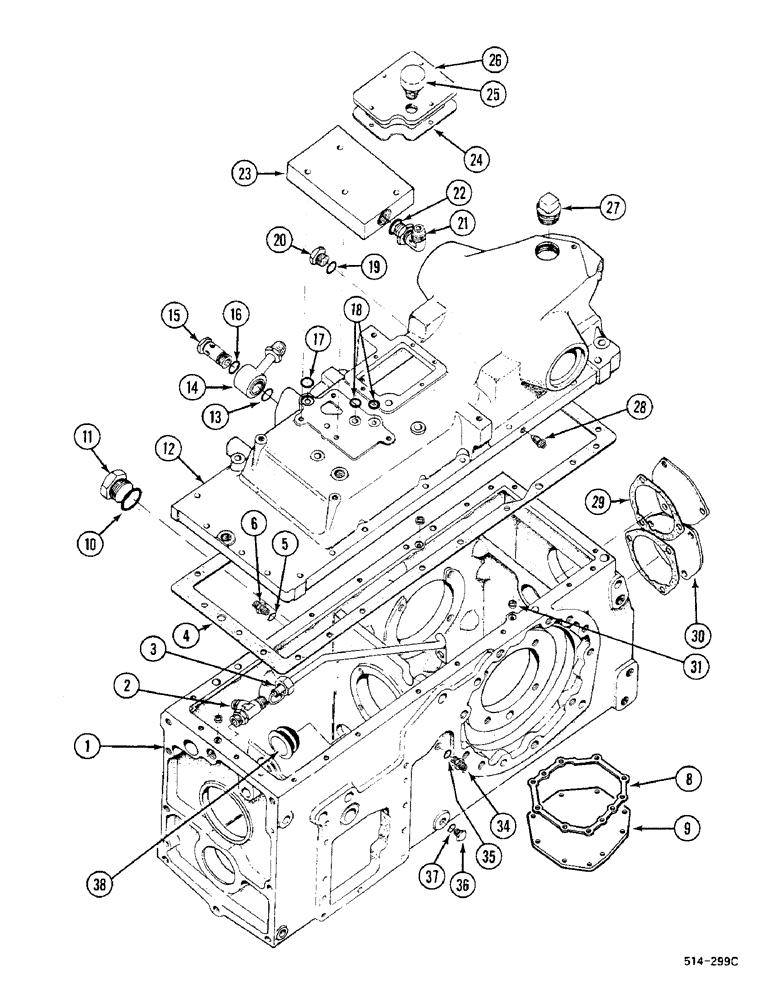

Запчасти Case IH 685 (6-338) - REAR FRAME, COVER & CONNECTIONS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
82793C91
FRAME
ASSY., model 685 and 885 Use S/N 18001 and, Start Serial: up
1шт.
1
1289949C91
FRAME ASSY
with plug, model 685 and 885 to Use up to S/N XXXX
1шт.
327412R1
PLUG,Cup, 13/16"
21 mm
1шт.
3113103R1
PLUG
2шт.
318300R1
PLUG,Cup, 1"
1шт.
9409961
DRAIN PLUG,Sq Soc, 3/4"-14 NPTF
version with automatic hitch
2шт.
349373R1
PLUG
1шт.
19904R1
DOWEL,1/2" x 1"
2шт.
19875R1
DOWEL,5/8" x 1 1/2"
4шт.
386194R1
PLUG,Cup, 3/4"
1шт.
512870R1
PLUG,Cup, 2 1/4"
1шт.
19846R1
DOWEL,1/2" x 1 1/4"
1шт.
28673R1
PLUG,Cup, 2 1/8"
1шт.
23828R1
PLUG,Cup, 2 1/2"
1шт.
330222R1
PLUG,Cup, 1 7/8"
1шт.
151162R1
PLUG,Cup, 1 3/8"
1шт.
327413R1
PLUG
1шт.
3142063R1
PLUG
1шт.
2
9411131
TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run
TUBE pump outlet
1шт.
3
86337C1
PIPE
TUBE ASSY., oil return, models 685 and 885 Use S/N 18001 and, Start Serial: up
1шт.
3
68393C1
TUBE ASSY.
oil return, models 685 and 885 to Use up to S/N XXXX
1шт.
4
538649R92
GASKET KIT
set, with: Ref. 31
1шт.
5
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
2шт.
6
3129671R1
FITTING
ADAPTOR, R.H. brake tube, not used
1шт.
8
82632C2
GASKET
models 685 and 885 Use S/N, Start Serial: 18
1шт.
8
405739R2
GASKET
models 685 and 885 to Use up to S/N XXXX
1шт.
9
94293C1
COVER
models 685 and 885 Use S/N 18001 and, Start Serial: up
1шт.
26273R1
WASHER
9шт.
9
405738R1
COVER
models 685 and 885 to Use up to S/N XXXX
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
7шт.
10
296247R1
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
1шт.
11
9410363
PLUG
1шт.
12
529381R96
COVER ASSY
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
4шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
179846
LEVER
11шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
BOLT
2шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
BOLT
2шт.
413-830
BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5
BOLT
4шт.
444697
PLUG,Hex Soc, 3/8"-18
1шт.
386194R1
PLUG,Cup, 3/4"
1шт.
373553R1
PLUG,Cup, 7/8"
1шт.
41600D
PLUG,Cup, 1 1/8"
1шт.
24469R1
PLUG,Cup, 3 1/4"
2шт.
103321
LOCK WASHER,3/8"
14шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
3шт.
231-1408
LOCK NUT,1/2"-13, GB
3шт.
536855R1
PLUG
1шт.
531144R1
STUD
2шт.
531143R2
STUD
2шт.
13
384376R1
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
1шт.
14
66762C1
PIPE,0.625" OD, 3.5" Length
TUBE ASSY.
1шт.
15
66766C1
PLUG
1шт.
16
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
17
21433R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
auxiliary valve manifold
1шт.
18
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
2шт.
20
9410359
PLUG
1шт.
21
9410978
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
90 degree, auxiliary valve maniold
1шт.
22
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
23
529382R1
MANIFOLD
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
4шт.
24
399996R1
GASKET
1шт.
25
65970C2
BREATHER ASSY.
model 685 to Use up to S/N 18679
1шт.
25
65970C2
BREATHER ASSY.
model 885 to Use up to S/N 1852
1шт.
26
65969C1
COVER
model 685 to Use up to S/N 18679
1шт.
26
65969C1
COVER
model 885 to Use up to S/N 18527
1шт.
99969C1
COVER
model 685 Use S/N 18680 and, Start Serial: up
1шт.
99969C1
COVER
model 885 Use S/N 18528 and, Start Serial: up
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
5шт.
27
20953R1
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
1шт.
28
82301R1
BLEEDER,3/8" - 24 x 117mm
2шт.
28
3068777R1
SCREW
brake bleed optional
2шт.
29
399843R3
GASKET
2шт.
30
399842R1
COVER
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
6шт.
31
406734R1
SEAL
not used
3шт.
34
3129671R1
FITTING
ADAPTOR L.H. brake tube
1шт.
35
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
36
9410356
PLUG
1шт.
37
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
38
527748R1
PLUG
1шт.
Выбрано товаров: 88
