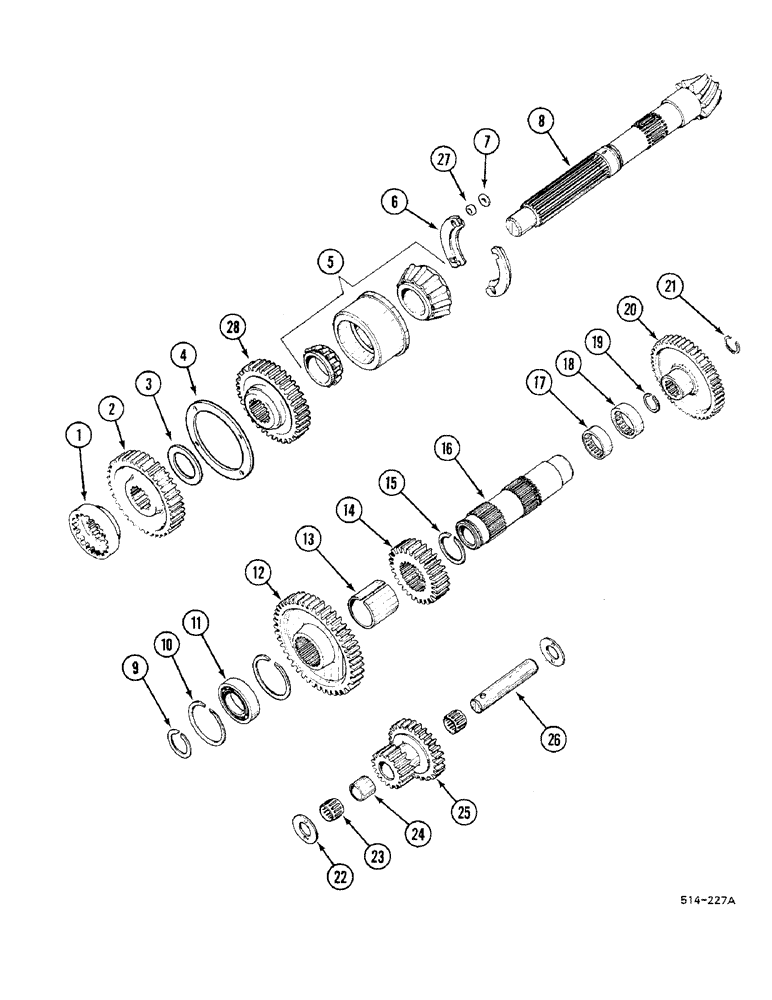

Запчасти Case IH 685 (6-322) - RANGE TRANSMISSION - IN REAR FRAME (06) - POWER TRAIN

1

1277137C1

COLLAR ASSY.

1шт.

2

1277141C1

GEAR

41 T, forward - reverse, speed train type - A, D

1шт.

2

1286470C1

GEAR

42 T, forward - reverse, speed train type - B, E

1шт.

3

65788C1

WASHER

1шт.

4

65423C1

SHIM KIT

PACKAGE

1шт.

5

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

ASSY.

1шт.

5

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

ASSY., for 4 wheel drive tractors, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

6

65784C2

RETAINER

ASSY.

2шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6

83299C1

RETAINER

RETAINER ASSY., for 4 wheel drive tractors, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

7

65787C1

WASHER

3шт.

8

94252C1

GEAR, BEVEL

BEVEL GEAR SHAFT, 11 T, with drive bevel gear, 52 T, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

8

1954037C1

GEAR

set, model 685 to Use up to S/N 13595

1шт.

1954037C1

GEAR

set, model 885 to Use up to S/N 3401

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT, see bevel gear main shaft, for 4 wheel drive tractors

1шт.

9

A27089

SNAP RING,2.36mm Thk, Ext

RING

1шт.

10

399832R1

RING, SNAP

RING SNAP retaining

2шт.

11

3125123R91

BEARING, ROLLER,49.994 mm ID x 80.0285 mm OD x 15.94 mm

1шт.

1201744C91

ROLLER BEARING

roller, optional

1шт.

11

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

1шт.

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

1шт.

360635R91

BEARING, BALL

1шт.

528101R91

BEARING, BALL

1шт.

528102R91

BEARING, BALL

1шт.

3047867R91

BEARING, BALL

1шт.

3069304R91

BALL BEARING

optional

1шт.

12

404097R1

GEAR

46 T

1шт.

13

399835R1

BUSHING

1шт.

14

404100R1

PINION

GEAR, 27 T, low range, speed train type - A, D

1шт.

14

103150C1

PINION

GEAR, 24 T, low range, speed train type - B, E

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

retaining

1шт.

16

99403C1

SHAFT

models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

16

404096R1

SHAFT

model 685 to Use up to S/N 13595

1шт.

404096R1

SHAFT

model 885 to Use up to S/N 3401

1шт.

17

94376C91

NEEDLE BEARING,47.625 mm ID x 57.162 mm OD x 25.4 mm

needle, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

17

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

model 685 to Use up to S/N 13595

1шт.

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

model 885 to Use up to S/N 3401

1шт.

17

527746R91

BEARING, NEEDLE

optional, model 685 to Use up to S/N 13595

1шт.

527746R91

BEARING, NEEDLE

model 885 to Use up to S/N 3401

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

1шт.

18

527747R91

BEARING, NEEDLE

1шт.

19

399837R1

SNAP RING,#118, 1.121", Ext

retaining

1шт.

20

94404C1

PINION

GEAR, 55 teeth, pump drive

1шт.

21

533266R1

RING, SNAP

RING SNAP retaining

1шт.

22

3112846R1

THRUST WASHER

2шт.

23

3112844R91

BEARING, NEEDLE

2шт.

23

3113041R91

ROLLER CAGE BEARING

needle, optional

2шт.

24

3112845R1

SPACER

1шт.

25

3112843R1

GEAR

18/27 T, reverse idler, speed train type - A, D

1шт.

25

70298C1

PINION

GEAR, 20/24 T, reverse, idler, speed train type - B, E

1шт.

26

399838R3

SHAFT

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

94323C1

BUSHING

for 4 wheel drive tractors, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.

28

82354C1

GEAR

for 4 wheel drive tractors, models 685 and 885 Use S/N 18001 and, Start Serial: up

1шт.
