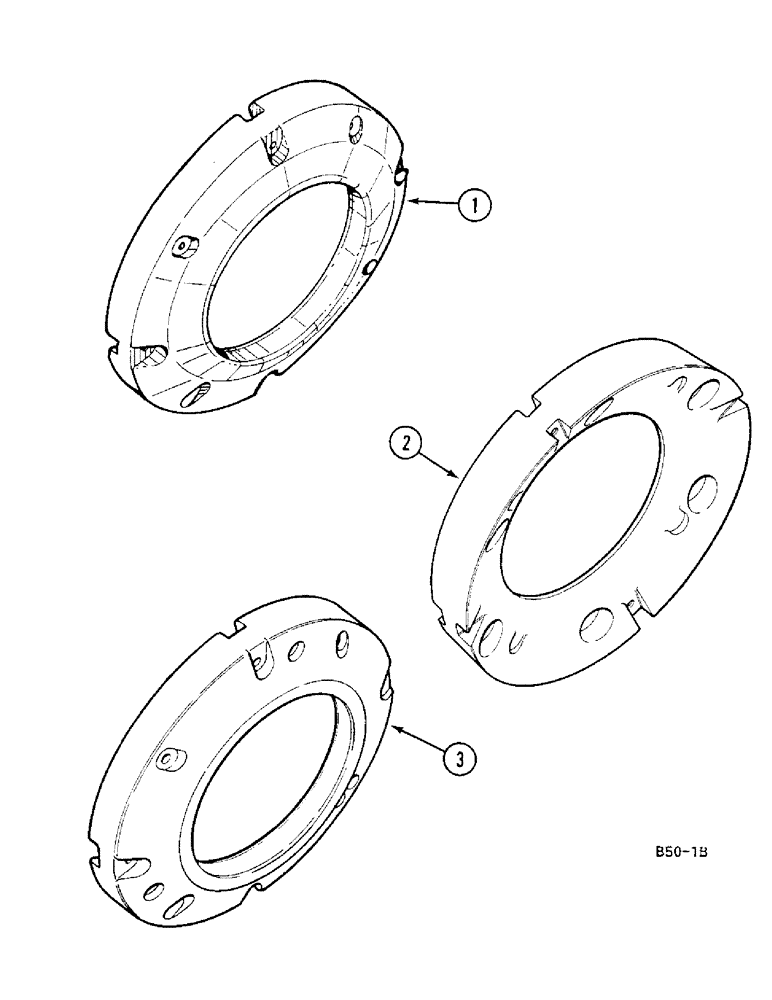

Запчасти Case IH 685 (6-304) - REAR WHEEL WEIGHT (06) - POWER TRAIN

1

406857R5

WEIGHT

120 lbs, used with wheels 28, 30, 32, 34, 36 and 38 in.

2шт.

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels, Nagbol, W12-30/W15-30

2шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

21029R1

WASHER

8шт.

271501

SOCKET

8шт.

3123374R1

SPACER

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels Nagbol, W12-30/W15-30, tractor with additional weights

4шт.

187462

BOLT,Hex, 7/16" - 14 x 5 1/2", Gr 5

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

21029R1

WASHER

8шт.

NLS

NO LONGER SERVICED

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels 32 and 34 in.

2шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

BOLT

8шт.

21029R1

WASHER

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

271501

SOCKET

8шт.

3123374R1

SPACER

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels 36 and 38 in.

2шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

BOLT

8шт.

21029R1

WASHER

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

NLS

NO LONGER SERVICED

8шт.

1265250C1

SPACER

8шт.

1

406857R5

WEIGHT

120 lbs, used with wheels 32, 34, 36, and 38 in.

4шт.

413-780

BOLT,Hex, 7/16" - 14 x 5", Gr 5

Course threads

8шт.

21029R1

WASHER

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

8шт.

271501

SOCKET

8шт.

2

1500991C1

WEIGHT

Used with wheels, Lemmerz 28, 30 and 34 in.

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

12шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

12шт.

492-11062

BEARING WASHER,5/8"

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 inch

12шт.

2

1500991C1

WEIGHT

used with wheels, Lemmerz 28, 30 and 34 inch

4шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

tractor with additional weights

12шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

tractor with additional weights

12шт.

492-11062

BEARING WASHER,5/8"

Tractor with additional weights

12шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 inch, tractor with additional weights

12шт.

3

1332776C1

WEIGHT

tractor with additional weights

1шт.

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

tractor with additional weights

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

Tractor with additional weights

1шт.

425-1110

NUT,5/8"-18, G5

tractor with additional weights

1шт.
