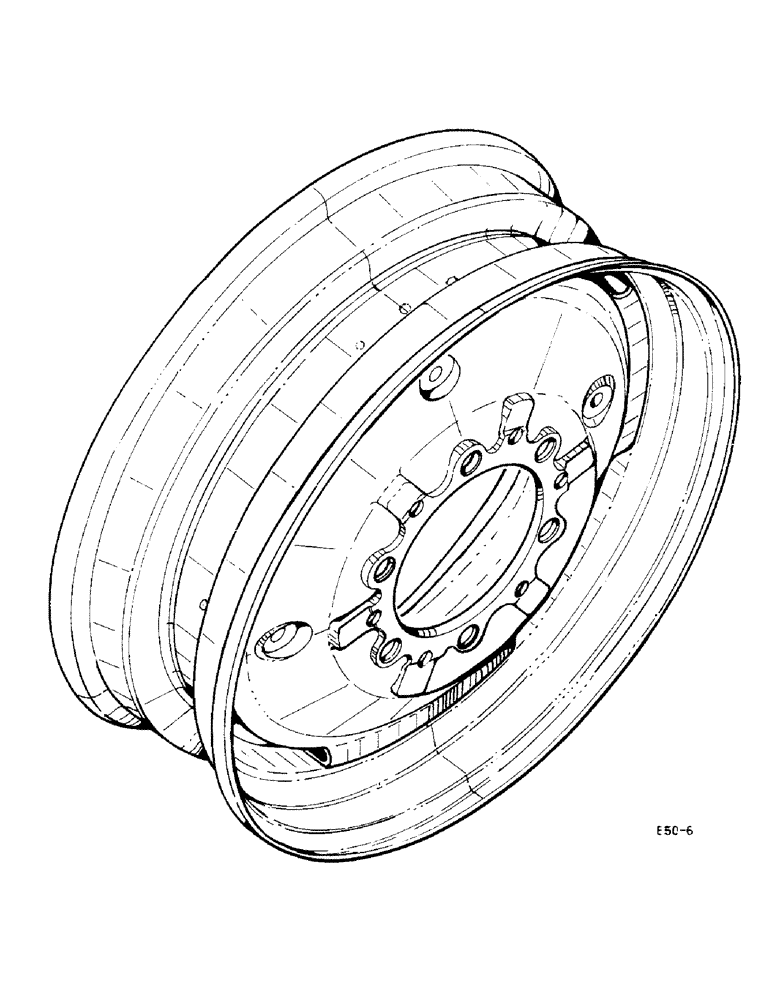

Запчасти Case IH 685 (5-298) - FRONT WHEELS, THE FOLLOWING PARTS ARE NOT ILLUSTRATED (05) - STEERING
№
Артикул
Название
Примечание
Количество
704675R91
RIM
WHEEL WHEEL ASSEMBLY, 4.50F x 16, for tires 6.00 x 16
2шт.
3048866R91
WHEEL
WHEEL ASSEMBLY, 4.50F x 16, for tires 6.00 x 16
2шт.
1282560C1
WHEEL ASSY.
9.00 x 16, for tires 10.00 x 16
2шт.
751734R91
WHEEL ASSY.
5.50F x 16, for tires 7.50 x 16
2шт.
3114166R91
WHEEL ASSY.
5.50F x 16, for tires 7.50 x 16
2шт.
3121425R91
WHEEL ASSY.
5.50 x 18, for tires 7.50 x 18
2шт.
3121426R91
WHEEL ASSY.
5.50 x 18, for tires 7.50 x 18
2шт.
3125942R91
WHEEL ASSY.
W7-24, Nagbol, not illustrated
2шт.
1500205C1
RIM
WHEEL wheel, not illustrated
2шт.
3125943R91
WHEEL ASSY
W8-24, Nagbol, not illustrated
2шт.
1500206C1
RIM
WHEEL wheel, not illustrated
2шт.
3125944R91
WHEEL ASSY.
W9-24, not illustrated
2шт.
1500207C1
RIM
WHEEL wheel, not illustrated
2шт.
1500208C1
DISC
not illustrated
2шт.
1500209C1
BOLT
not illustrated
12шт.
1500211C1
WASHER
not illustrated
12шт.
1500210C1
NUT
not illustrated
12шт.
3147863R91
RIM
WHEEL ASSEMBLY, W10-24, not illustrated
2шт.
3147865R1
DISC, WHEEL
W10 x 24, not illustrated
2шт.
114-614
BOLT,Hex, 5/8" - 18 x 3", Gr 5
76 mm, not illustrated
12шт.
425-1110
NUT,5/8"-18, G5
not illustrated
12шт.
492-11062
BEARING WASHER,5/8"
Not Illustrated
12шт.
1502033C91
WHEEL
WHEEL ASSEMBLY, W10-24, not illustrated
2шт.
1502034C1
DISC, WHEEL
not illustrated
2шт.
1502035C1
RIM
WHEEL ASSEMBLY, not illustrated
2шт.
1500210C1
NUT
not illustrated
12шт.
1500209C1
BOLT
not illustrated
12шт.
1502036C1
WASHER
not illustrated
12шт.
1500774C92
WHEEL ASSY.
not illustrated
2шт.
1500206C1
RIM
WHEEL wheel, not illustrated
2шт.
1502034C1
DISC, WHEEL
not illustrated
2шт.
1500209C1
BOLT
not illustrated
12шт.
1500210C1
NUT
not illustrated
12шт.
1502036C1
WASHER
not illustrated
12шт.
Выбрано товаров: 34
