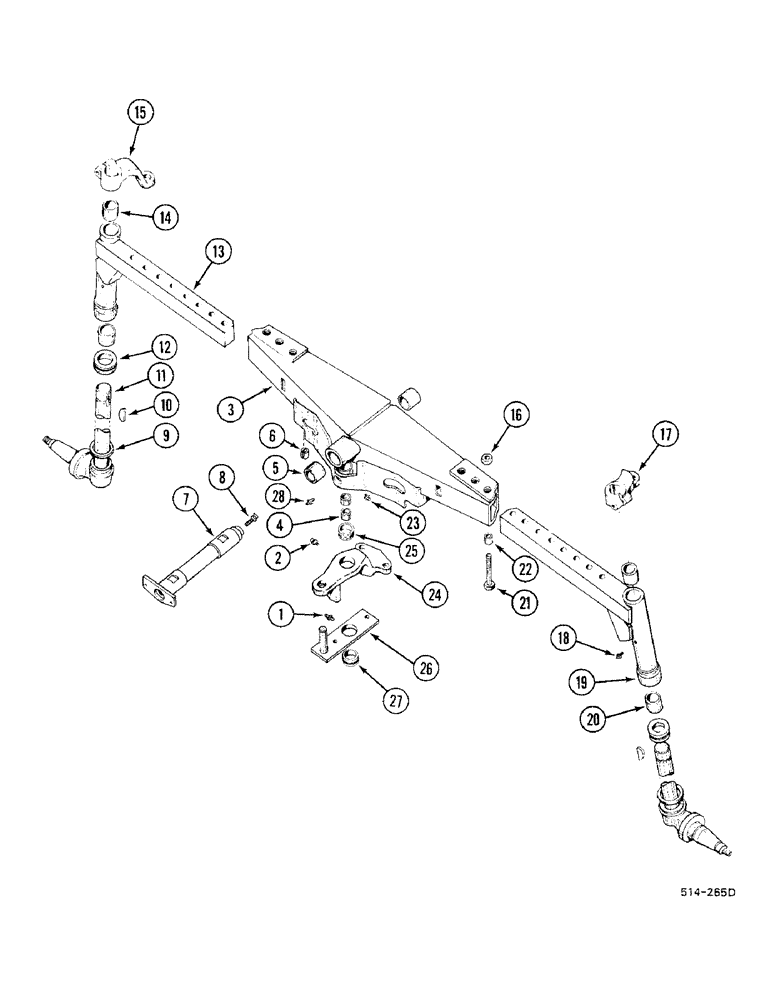

Запчасти Case IH 685 (5-292) - FRONT AXLE - STRAIGHT - HEAVY DUTY (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

3

3116435R92

AXLE, FRONT

ASSEMBLY

1шт.

4

405574R1

BUSHING

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

optional

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

2шт.

6

3125304R1

BUSHING

1шт.

7

539128R1

SHAFT ASSY.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

8

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

67526C91

KNUCKLE

ASSY. high spindle

2шт.

12

405831R91

BEARING

2шт.

12

369131R91

THRUST BEARING

2шт.

12

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

optional

2шт.

13

3116437R91

EXTENSION ASSY.

right

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

right

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405576R1

NUT

6шт.

17

67524C1

ARM

left

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

2шт.

19

3116436R91

EXTENSION ASSY.

left

1шт.

20

376099R1

BUSHING

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder, Not used

6шт.

23

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

1шт.

24

67499C91

ARM ASSY.

1шт.

25

379748R1

BUSHING

2шт.

26

405580R11

BAR ASSY.

1шт.

67976C1

PLATE, LOCKING

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

27

379748R1

BUSHING

1шт.

28

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

1шт.
