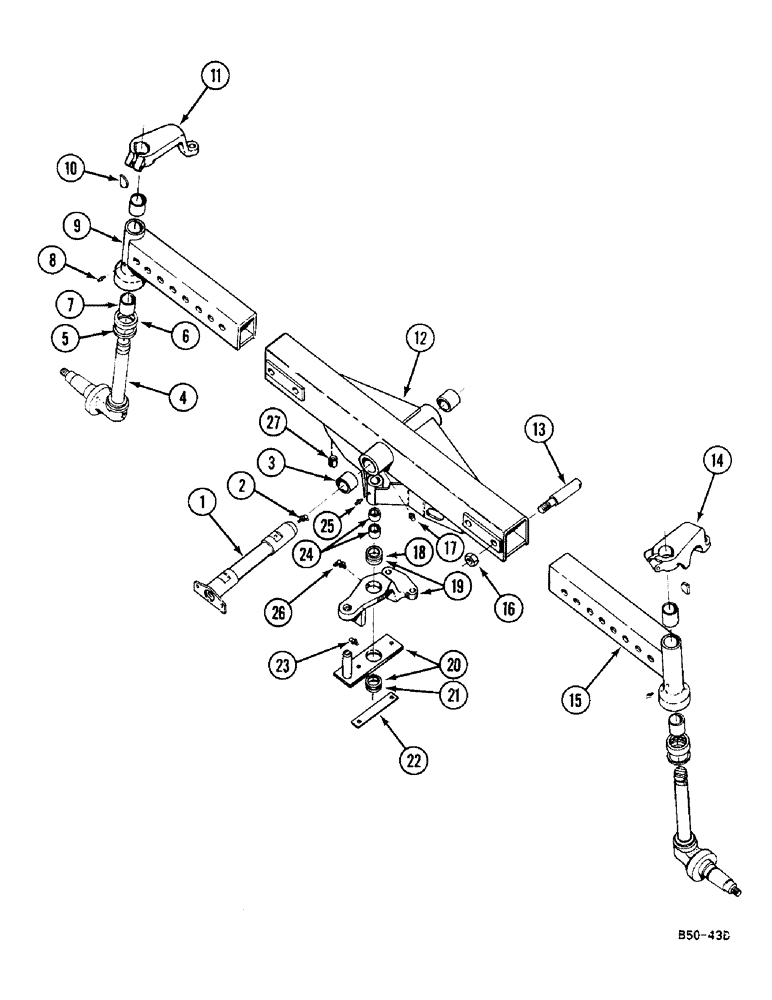

Запчасти Case IH 685 (5-284) - ADJUSTABLE FRONT AXLE - STRAIGHT (05) - STEERING

1

3121254R1

SHAFT ASSY.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

2

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR LUBRICATOR

1шт.

3

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

2шт.

4

3121261R91

KNUCKLE,RH

ASSY. high spindle

2шт.

4

3121270R91

KNUCKLE

ASSY. low spindle

2шт.

5

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

2шт.

6

405831R91

BEARING

2шт.

6

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

2шт.

6

369131R91

THRUST BEARING

optional

2шт.

7

376099R1

BUSHING

4шт.

8

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

High spindle

2шт.

8

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

low spindle

2шт.

9

3121257R91

EXTENSION ASSY.

high spindle, right

1шт.

9

3121268R91

EXTENSION ASSY.

low spindle, right

1шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

3121264R1

ARM

right

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

BOLT

1шт.

25526R1

NUT,1/2"-13, G8

1шт.

12

3121242R92

CENTER AXLE

1шт.

13

3121252R1

BOLT,3/4" - 16 x 1 27/32"

4шт.

14

3121263R1

ARM

left

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

BOLT

1шт.

25526R1

NUT,1/2"-13, G8

1шт.

15

3121256R91

EXTENSION ASSY.

high spindle, left

1шт.

15

3121267R91

EXTENSION ASSY.

low spindle, left

1шт.

16

3121253R1

SPECIAL NUT

4шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

1шт.

18

379748R1

BUSHING

1шт.

19

67499C91

ARM ASSY.

1шт.

20

405580R11

BAR ASSY.

1шт.

21

379748R1

BUSHING

1шт.

22

67976C1

PLATE, LOCKING

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

23

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

2шт.

24

405574R1

BUSHING

2шт.

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

optional

2шт.

25

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

1шт.

26

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

1шт.

27

3125304R1

BUSHING

1шт.
