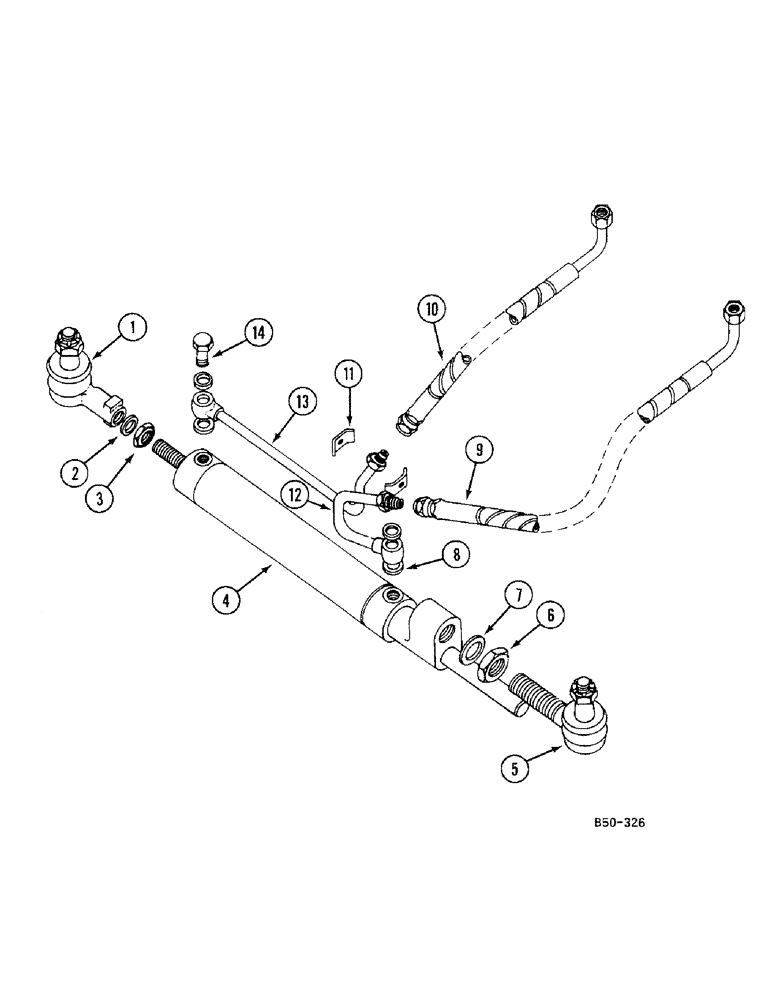

Запчасти Case IH 685 (5-280) - POWER STEERING, 4 WHEEL DRIVE - ZF, 685 : -13595, 885 : -3401 (05) - STEERING

1

742968C91

BALL JOINT

1шт.

2

934846R1

LOCK WASHER,Serr, M25

1шт.

3

934262R1

THIN NUT,Thin, M24 x 1.5

1шт.

4

742967C91

STEERING CYLINDER

ASSEMBLY, see steering cylinder for 4 wheel drive

1шт.

5

3141529R91

BALL JOINT

1шт.

6

934070R1

THIN NUT,Thin, M30 x 1.5

M30

1шт.

7

934072R1

LOCK WASHER,Serr, M31

1шт.

8

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

9

3129985R1

HOSE ASSY.

right

1шт.

10

3129984R1

HOSE ASSY.

left

1шт.

11

3129983R1

CLAMP

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

933833R1

LOCK WASHER,M6

1шт.

30281R1

NUT,M6, Cl 10

1шт.

12

3129982R1

TUBE ASSY.

right

1шт.

13

3129981R1

TUBE ASSY.

left

1шт.

14

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

2шт.
