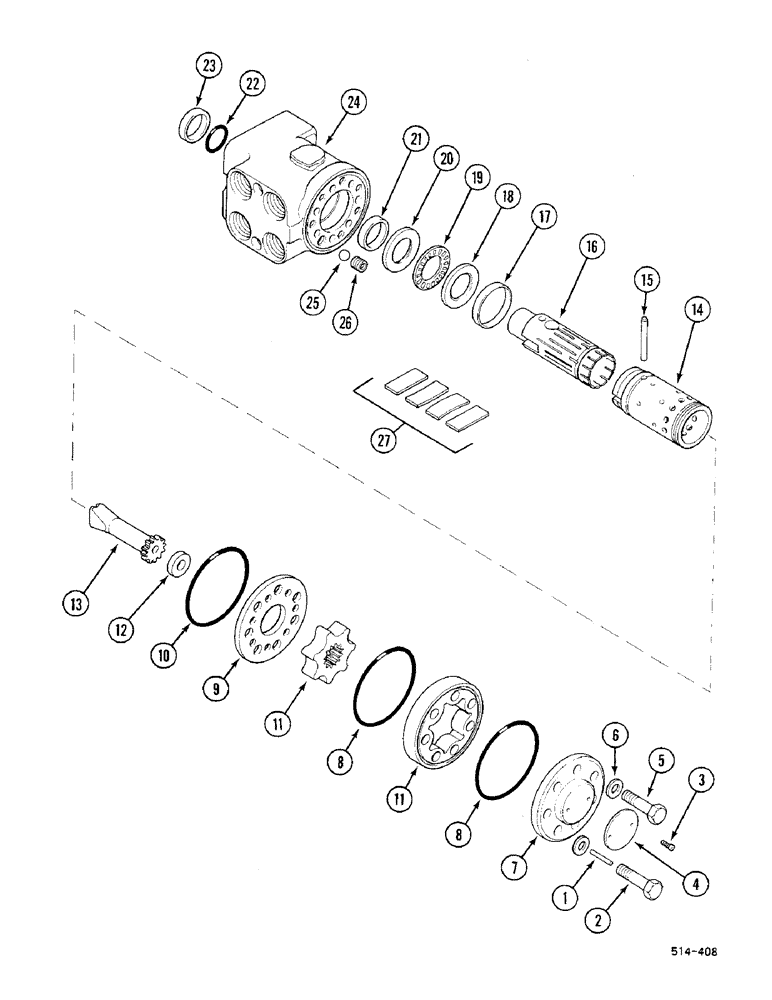

Запчасти Case IH 685 (5-274) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING

88107C91

PUMP

VALVE ASSEMBLY, model 685 and 885 S/N 18001 and, Start Serial: up

1шт.

1500443C91

SEAL KIT

PACKAGE

1шт.

67698C93

VALVE

ASSEMBLY, Includes: Ref. 1B - 27B, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

3112271R1

PIN, ROLL

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

2

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

SCREW, model 885 to Use up to S/N 3401

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

PLATE, model 885 to Use up to S/N 3401

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

model 685 to Use up to S/N 13595

6шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

WASHER , model 885 to Use up to S/N 3401

1шт.

7

1500444C1

CAP

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

9

3112276R1

PLATE

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

11

538918R1

ROTOR ASSY.

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

12

538916R1

SPACER

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

13

538915R1

DRIVE SHAFT

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE, order P/N 67698C93, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

15

3112269R1

PIN

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE, order P/N 67698C93, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

17

3112246R1

RING

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING needle, order P/N 3234338R91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING needle, order P/N 3234338R91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER, order P/N 3234338R91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

21

NSS

NOT SOLD SEPARAT

RING, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

23

NSS

NOT SOLD SEPARAT

RING sealing, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING, order P/N 67699C93, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

25

3112270R1

BALL

model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

26

3112273R1

COVER

BUSHING, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING leaf, order P/N 1500443C91, model 685 to Use up to S/N 13595

1шт.

NSS

NOT SOLD SEPARAT

model 885 to Use up to S/N 3401

1шт.

3234338R91

BEARING SET

ASSEMBLY, Includes: Refs. 18-20

1шт.

1500443C91

SEAL KIT

PACKAGE, Includes: Ref. 6, 8, 11, 21-23, and 27

1шт.
