(5-272) - STEERING VALVE AND COLUMN, 685 : 18001-, 885 : 18001-

Запчасти Case IH 685 (5-272) - STEERING VALVE AND COLUMN, 685 : 18001-, 885 : 18001- (05) - STEERING

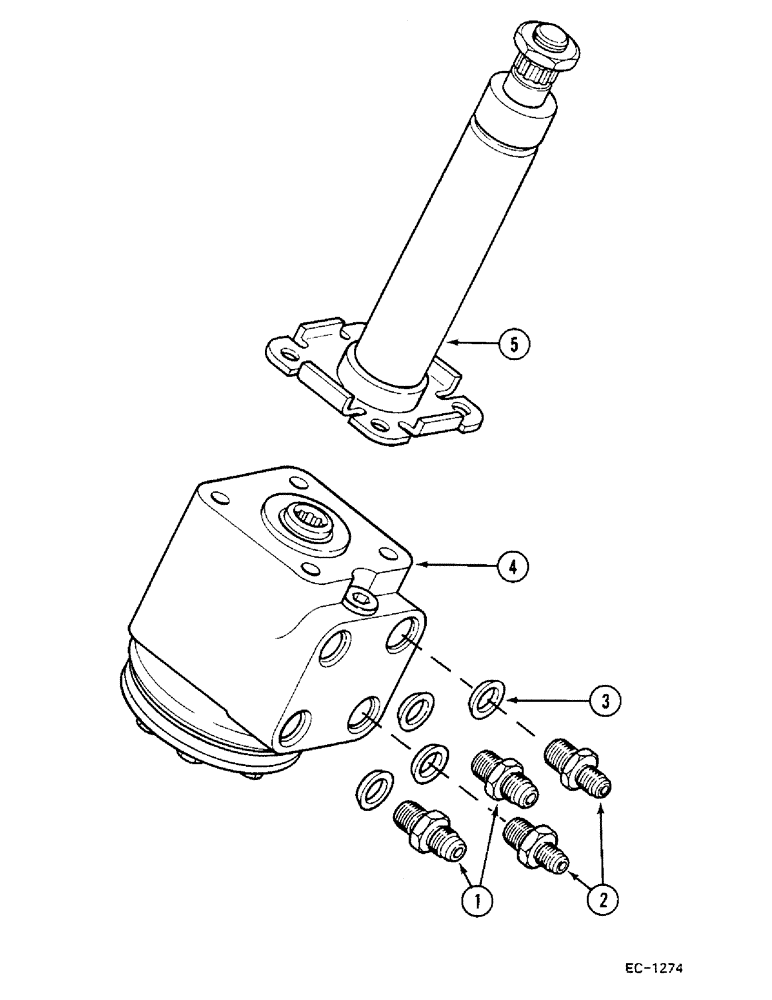

Схема запчастей Case IH 685 - (5-272) - STEERING VALVE AND COLUMN, 685 : 18001-, 885 : 18001- (05) - STEERING
3
5
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

4

88107C91

PUMP

VALVE ASSEMBLY, see integral power steering valve

1шт.

5

3121187R91

SHAFT

with nut

1шт.

F19646

LOCK NUT,13/16"-20, Thin

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.
