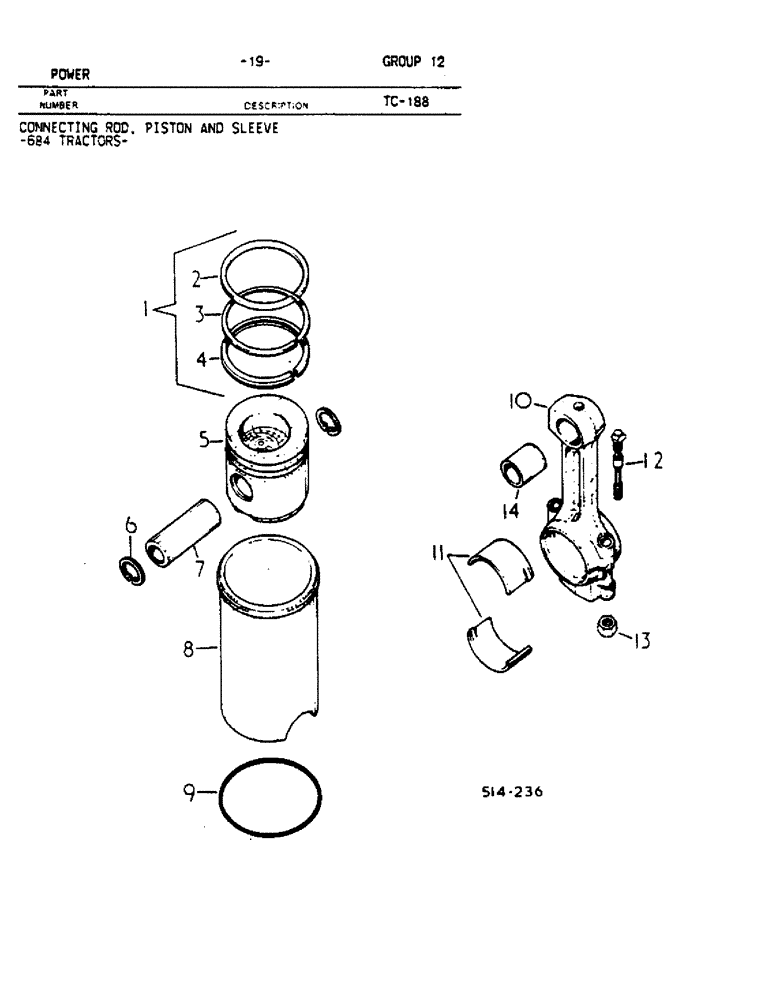

Запчасти Case IH 684 (12-19) - POWER, CONNECTING ROD, PISTON AND SLEEVE, 684 TRACTORS Power

1

3218416R91

PISTON RING SET

SET, piston ring, Serial Range: -476075

1шт.

1

3139594R91

PISTON RING

SET, piston ring, Start Serial: 476076

1шт.

2

NSS

NOT SOLD SEPARAT

RING, compression, first, used w/3 ring pistons, order ring set

4шт.

3

NSS

NOT SOLD SEPARAT

RING, compression, second, used w/3 ring pistons, order ring set

4шт.

4

NSS

NOT SOLD SEPARAT

RING, compression, third, used w/3 ring pistons, order ring set

4шт.

5

3218759R93

ELEC CONNECTOR

PISTON ASSY W/SLEEVE, Serial Range: -476075

4шт.

5

3139591R96

PISTON & RINGS KIT

PISTON W/SLEEVE ASSY, Start Serial: 476076

4шт.

6

933327R1

SNAP RING,M36, Int

RING, piston pin retainer OR

8шт.

6

3228245R1

RING, SNAP

RING, piston pin retainer

8шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

3139592R4

SLEEVE CYLINDER

SLEEVE, cylinder

4шт.

9

S-4076

RING, cylinder sleeve packing, Replaced 3228348R1

1шт.

Engine serial no. D082107 and above.

1шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

RING, cylinder sleeve packing

1шт.

Engine serial no. D82106 and below.

1шт.

10

3055030R24

ROD, CONNECTING

ROD ASSY, connecting w/two bolts and bushing

4шт.

11

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

4шт.

11

3056834R11

BEARING ASSY

BEARING, connecting rod 0.25mm U/S

4шт.

Engine serial no. D666989.

1шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

NSS

NOT SOLD SEPARAT

NUT, connecting rod bolt

8шт.

14

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

4шт.
