(12-11) - POWER, FUEL SHUT-OFF CONTROLS, 684 TRACTORS W/S/N 7233 & ABOVE, HYDRO 84 TRACTORS W/S/N 6002 & ABOVE

Запчасти Case IH 684 (12-11) - POWER, FUEL SHUT-OFF CONTROLS, 684 TRACTORS W/S/N 7233 & ABOVE, HYDRO 84 TRACTORS W/S/N 6002 & ABOVE Power

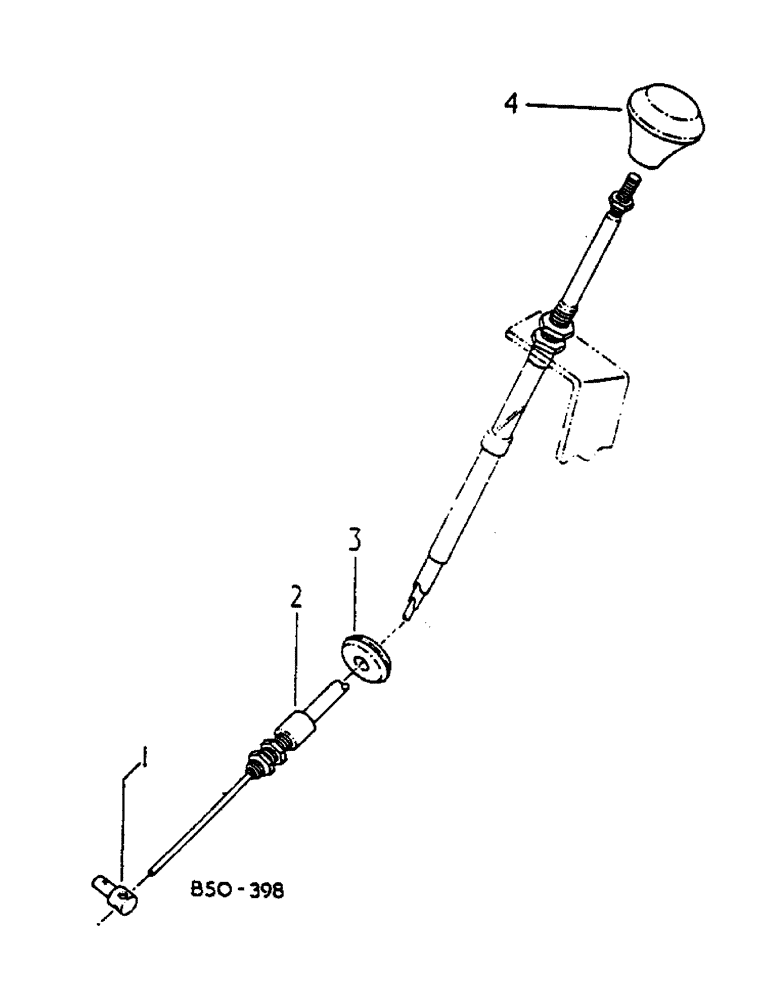

Схема запчастей Case IH 684 - (12-11) - POWER, FUEL SHUT-OFF CONTROLS, 684 TRACTORS W/S/N 7233 & ABOVE, HYDRO 84 TRACTORS W/S/N 6002 & ABOVE Power
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

787190R1

COLLAR

PIVOT, fuel shut-off lever swivel, replaces 369388R1

1шт.

2

3234947R2

CABLE

fuel shut-off control, replaces 3129712R1

1шт.

1288353C1

BOOT

1шт.

3

Not used this application

1шт.

4

3221357R1

BUTTON

KNOB, fuel shut-off

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

1шт.
