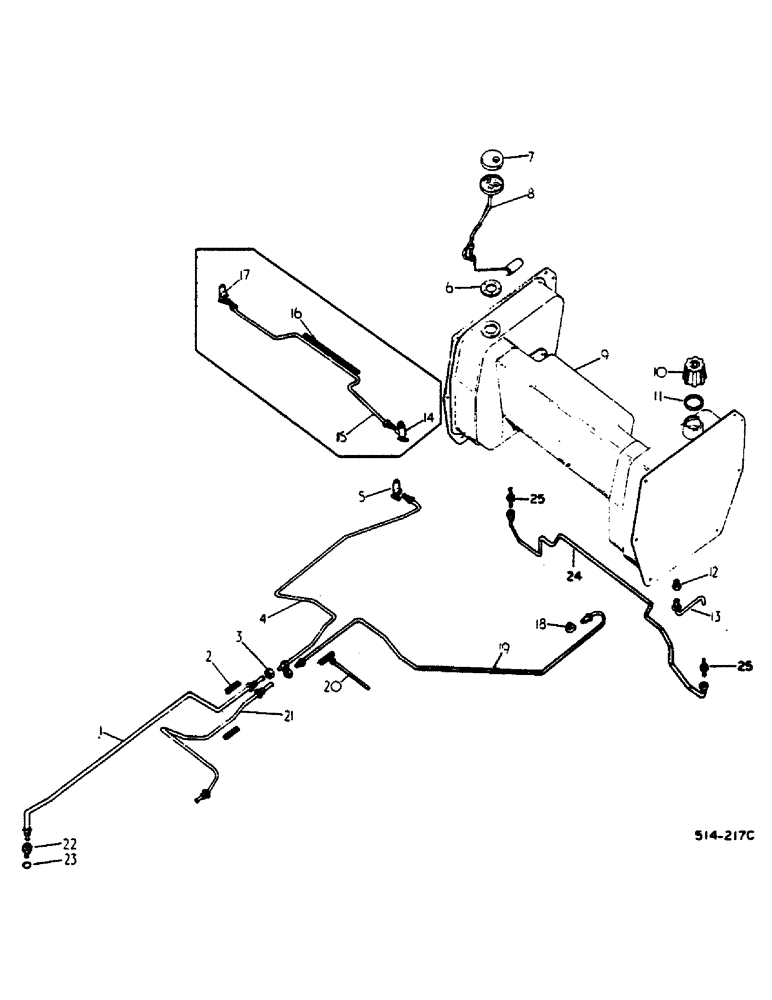

Запчасти Case IH 684 (12-06) - POWER, FUEL TANK SUPPORTS AND PIPING Power

1

3125866R1

PIPE ASSY.,7.92 mm OD, 1020, 119 mm Length

TUBE ASSY, union to filter

1шт.

D246 engine with serial no. 120521 and above.

1шт.

D239 engine with serial no. 667629 and above.

1шт.

1

3113614R1

PIPE ASSY.,39.1, 5.2" Length

TUBE ASSY, union to filter, Bosch injection CR pump

1шт.

D246 engine with serial no. 120520 and below.

1шт.

D239 engine with serial no. 667628 and below.

1шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

0.31" ID x 2.50"

3шт.

3

442337

NUT

UNION, 5/16 pln inv fld tube

2шт.

4

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE ASSY, union to shutoff valve, replaces 3121561R1

1шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, shutoff

1шт.

6

528359R1

GASKET

sending unit

1шт.

7

528360R2

COVER

sending unit

1шт.

8

529790R1

SENDER UNIT

TRANSMITTER, fuel gauge sending, used w/gauge, 3121239R1 OR

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER, fuel gauge sending, used w/gauge, 3129840R1

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

no. 10 x 1/2 znp h/hd mach

5шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

no. 10 x 3/8 znp P/HDCR mach

1шт.

533199R1

SEALING WASHER

sending unit cover sealing

4шт.

796002R1

COPPER WASHER

WASHER, .197 x .334 x .036 copper

1шт.

9

536035R93

FUEL TANK

TANK ASSY, fuel w/filler cap, the eight rubber grommets used to mount this tank are 531625R1

1шт.

120376

NUT,5/16"-18, G5

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

6шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

10

538063R1

PLUG

CAP ASSY, fuel tank filler OR includes o-ring

1шт.

10

536845R1

PLUG

CAP ASSY, fuel tank filler includes o-ring

1шт.

11

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel tank filler cap

1шт.

12

442322

ROD, CONNECTING

CONNECTOR, 5/16 pln inv flared tube, used w/underslung exhaust

1шт.

13

539938R1

VENTILATION PIPE

TUBE ASSY, tank breather, used w/underslung exhaust

1шт.

539940R1

CLIP

breather line

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 3/4 type 5

1шт.

14

536002R1

VALVE

TUBE ASSY, shutoff, used w/tube, 3121190R1

1шт.

15

3121190R1

TUBE

ASSY, crossover

1шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer Used W/Tube, 3121190R1 0.31" ID x 10.00"

1шт.

17

536002R1

VALVE

ASSY, shutoff, used w/tube, 3121190R1

1шт.

18

137422

ELBOW

inverted flare 90 deg

1шт.

19

537538R1

TUBE ASSY.

TUBE ASSY, fuel return rear, 684 tractor w/z pattern shift, hydro 84 tractors

1шт.

19

3129262R1

PIPE

TUBE ASSY, fuel return rear, 684 tractor w/h pattern shift

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP, harness to fuel line

3шт.

21

3112790R1

PIPE

TUBE ASSY, fuel return front

1шт.

22

3056600R1

ADAPTER

ADAPTOR, filter, Bosch injection

1шт.

23

933610R1

SEALING RING,M14 x 18 x 1.8

Packing, Bosch injection M14 x 18 x 1.8

1шт.

24

1502067C1

TUBE ASSY.

TUBE ASSY, crossover

1шт.

25

1502069C1

PIPE

ASSY, clearance

2шт.

538393R1

FILLER CAP

PLUG, fuel tank vent pipe flange, used w/verical exhaust

1шт.
