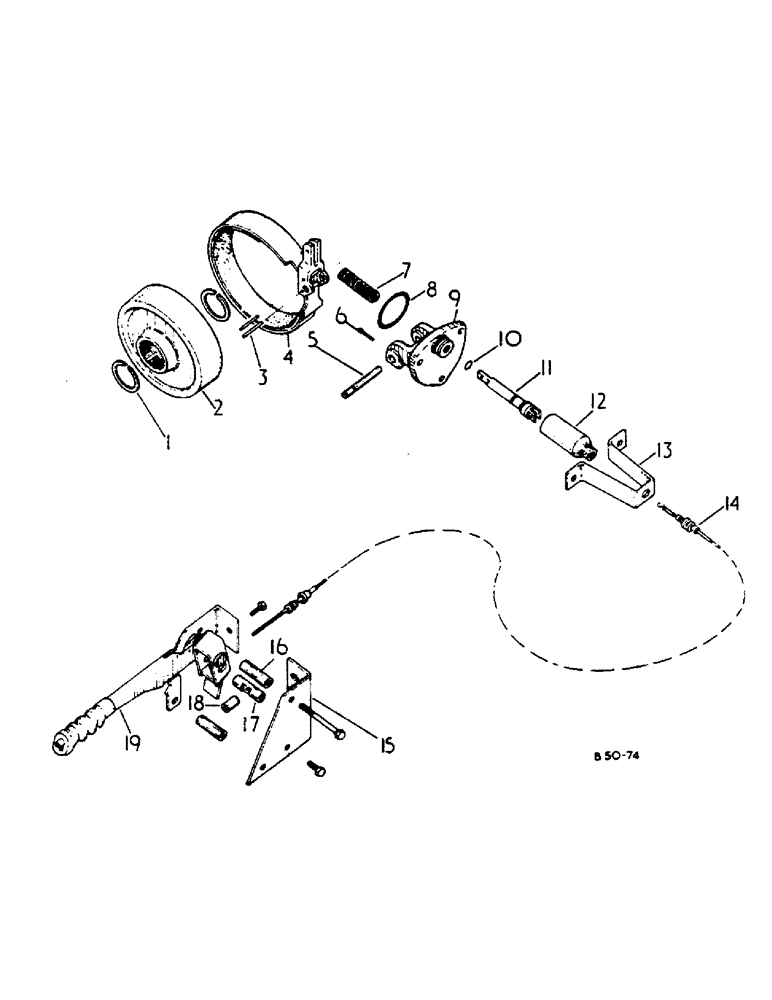

Запчасти Case IH 684 (04-08) - BRAKES, PARK BRAKE, 684 TRACTORS (5.1) - BRAKES

1

SHIM, pinion shaft bearing & brake drum retaining

1шт.

1

67568C1

CIRCLIP

SHIM, bevel pinion .066, or as required

2шт.

1

67569C1

CIRCLIP

SHIM, bevel pinion .069, or as required

2шт.

1

67570C1

CIRCLIP

SHIM, bevel pinion .072, or as required

2шт.

1

67571C1

CIRCLIP

SHIM, bevel pinion .075, or as required

2шт.

1

66077C1

CIRCLIP

SHIM, bevel pinion .078, or as required

2шт.

1

67572C1

CIRCLIP

SHIM, bevel pinion .081, or as required

2шт.

1

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM, bevel pinion .084, or as required

2шт.

1

67574C1

CIRCLIP

SHIM, bevel pinion .087, or as required

2шт.

1

67575C1

CIRCLIP

SHIM, bevel pinion .090, or as required

2шт.

1

67628C1

CIRCLIP

SHIM, bevel pinion .093, or as required

2шт.

2

66074C1

HUB

brake drum

1шт.

3

535544R1

PIN

anchor

2шт.

4

401992R3

BAND

ASSY, brake and actuating toggle

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x .940 PHC clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

401998R1

PIVOT PIN

PIN, parking brake pivot

1шт.

6

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

7

402000R1

SPRING

parking brake return

1шт.

8

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32

1шт.

9

401997R2

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

1шт.

11

402014R1

PLUNGER

parking brake pivot

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

PIN, 5/16 x .938 pln hd type 1

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

402015R1

BOOT

cable protection

1шт.

13

401999R1

SUPPORT

BRACKET, cable housing anchor lower

1шт.

14

CABLE ASSY, parking brake, on orders for cable, 529084R1, cable, 3129788R2, pin 3129789R1, block 3129790R1 nut 144418H, Serial Range: -5871

1шт.

14

3129788R2

CABLE ASSY.

CABLE ASSY, parking brake, Start Serial: 5872

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

PIN, 3/8 pln ret

2шт.

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

1шт.

15

1502240C1

SUPPORT

BRACKET ASSY, handbrake support, replaces 3121680R1

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

16

11531N

SPACER,3/8" Pipe x 2"

.674 x .493 x 2.0 long

2шт.

17

3121683R1

PIN

parking brake cable, used w/cable, 529084R1

1шт.

17

3129789R1

PIN,16mm OD x 50mm L

park cable, used w/cable, 3129788R2

1шт.

18

48094K

SPACER

.5 x .334 x .938 long, used w/cable assy. 529084R1

2шт.

18

3129790R1

BLOCK

park brake cable, used w/cable, 3129788R2

1шт.

19

3129929R92

LEVER ASSY.

LEVER ASSY, park brake hand, replaces 3121682R91, for components, see list of parts under details of park brake hand lever

1шт.
