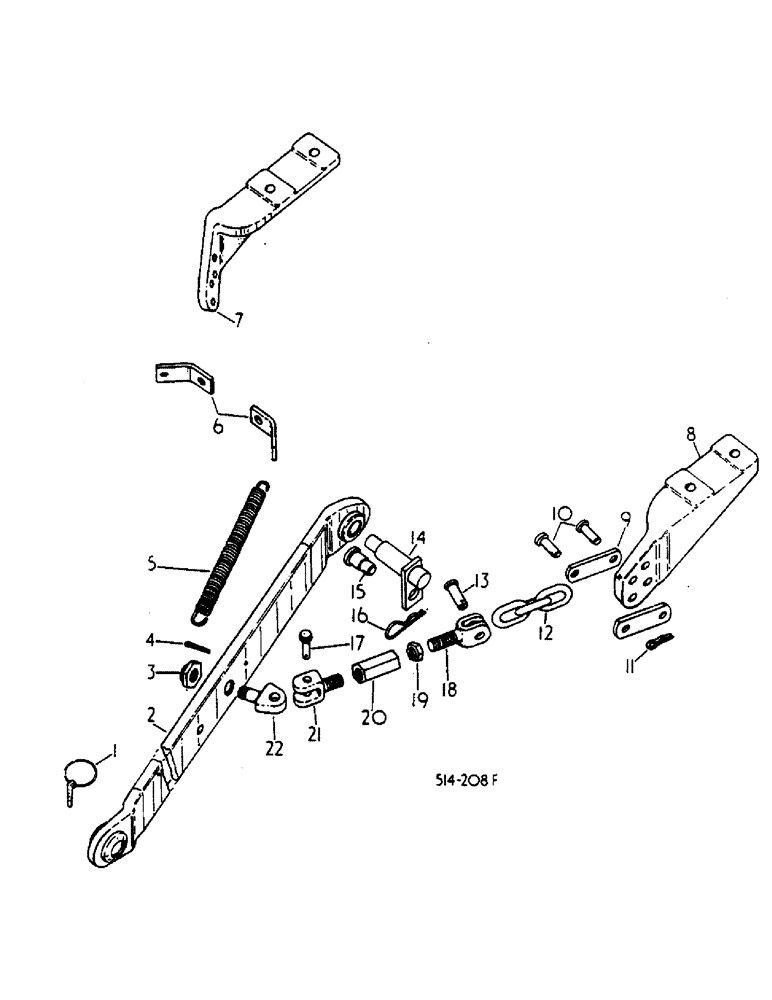

Запчасти Case IH 684 (09-09) - FRAME, FIXED LOWER LINKS, THREE POINT HITCH, WITH OUTSIDE CHECK CHAINS, UTILITY AND AWD TRACTORS (12) - FRAME

1

533189R1

PIN

ASSY

2шт.

2

1286790C91

LOWER LINK

LINK ASSY, lower, 1-3/8 inch implement ball

2шт.

2

3118064R91

LOWER LINK

LINK ASSY, lower, 1-2/4 inch implement ball

2шт.

3

19853R1

LOCK NUT,7/8"-14

NUT, 7/8-14 lock

1шт.

4

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

5

662632R1

SPRING

check chain restraining

2шт.

6

3121228R1

BRACKET

sway chain

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 pln type 5

4шт.

7

529874R1

SUPPORT

BRACKET, check chain LH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

529875R1

SUPPORT

BRACKET, check chain RH

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

3113594R1

PLATE

STRAP, check chain RH

4шт.

10

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

11

720631R1

LINCH PIN

PIN, adj strap cotter

2шт.

12

3113595R1

CHAIN,139.7mm L

CHAIN, limiter

2шт.

13

403037R2

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

14

3118060R1

PIN

lower link

2шт.

15

3118063R1

PIN

lower link lock

2шт.

16

538406R1

COTTER PIN

PIN, lower link

2шт.

17

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

18

70622C1

CLEVIS,7/8" - 14

ASSY, limiter chain

2шт.

19

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-14 hex jam

2шт.

20

3116619R1

NUT

adjustment

2шт.

21

3118016R1

CLEVIS,7/8" - 14

ASSY, limiter chain LH thd

2шт.

22

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, stabilizer rear eye

2шт.

1092798R2

PRODUCT GRAPHIC

sway chains

1шт.
