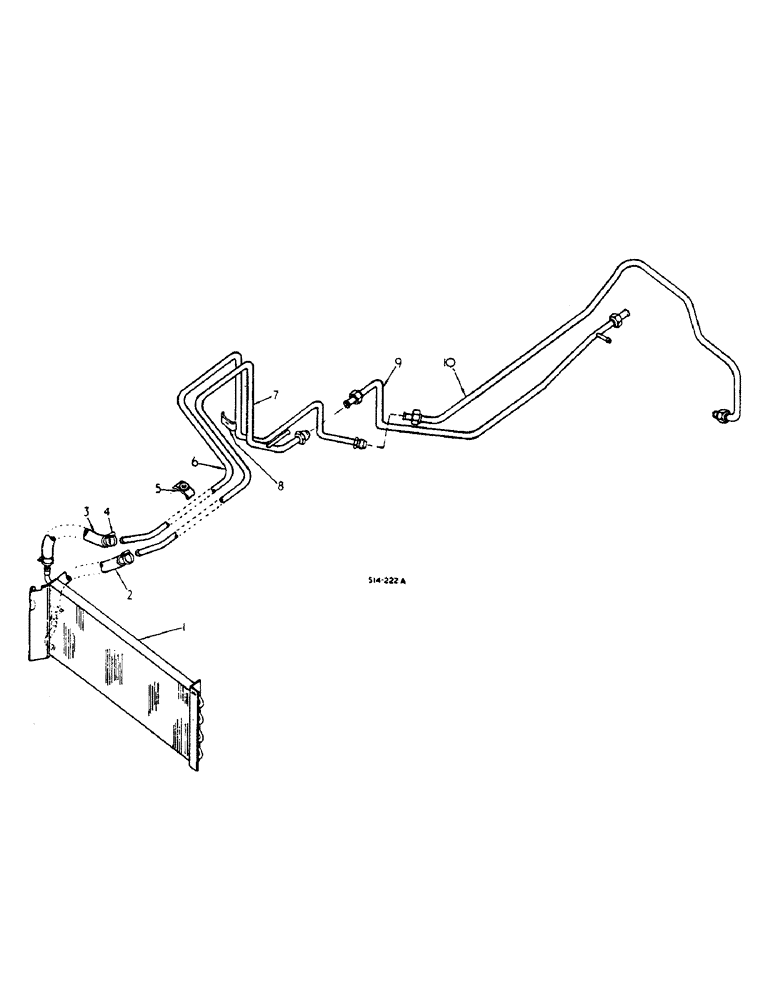

Запчасти Case IH 684 (06-01) - COOLING, OIL COOLER, 684 TRACTORS Cooling

1

1265532C1

COOLER

oil

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1.875 pln hd type 1

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

73200C1

HOSE,16mm ID x 1219.2mm L

Oil Cooler Outlet, 20.0 in, Furnish from .50 ID Bulk Hose Marked 3125980R1 0.63" ID x 48.00"

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE, oil cooler inlet, 13.5 in., furnish from .50 ID bulk hose marked 3125980R1

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose, or

4шт.

4

3074617R1

CLAMP

oil cooler hose

4шт.

5

529644R11

CLAMP

ASSY, oil cooler tube

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

66098C1

PIPE

TUBE ASSY, oil cooler inlet

1шт.

7

66100C2

TUBE ASSY.

TUBE ASSY, oil cooler outlet

1шт.

8

381448R1

CLAMP

oil cooler tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

66096C3

TUBE

ASSY, oil cooler return rear, tractors w/o torque amplifier

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE ASSY, oil cooler return rear, tractors w/torque amplifier, refer to torque amplifier listing, group 7

1шт.

10

66095C2

TUBE ASSY.

TUBE ASSY, oil cooler rear, tractors w/Z pattern shift

1шт.

10

3129259R1

PIPE

TUBE ASSY, oil cooler rear, tractors w/H pattern shift

1шт.
