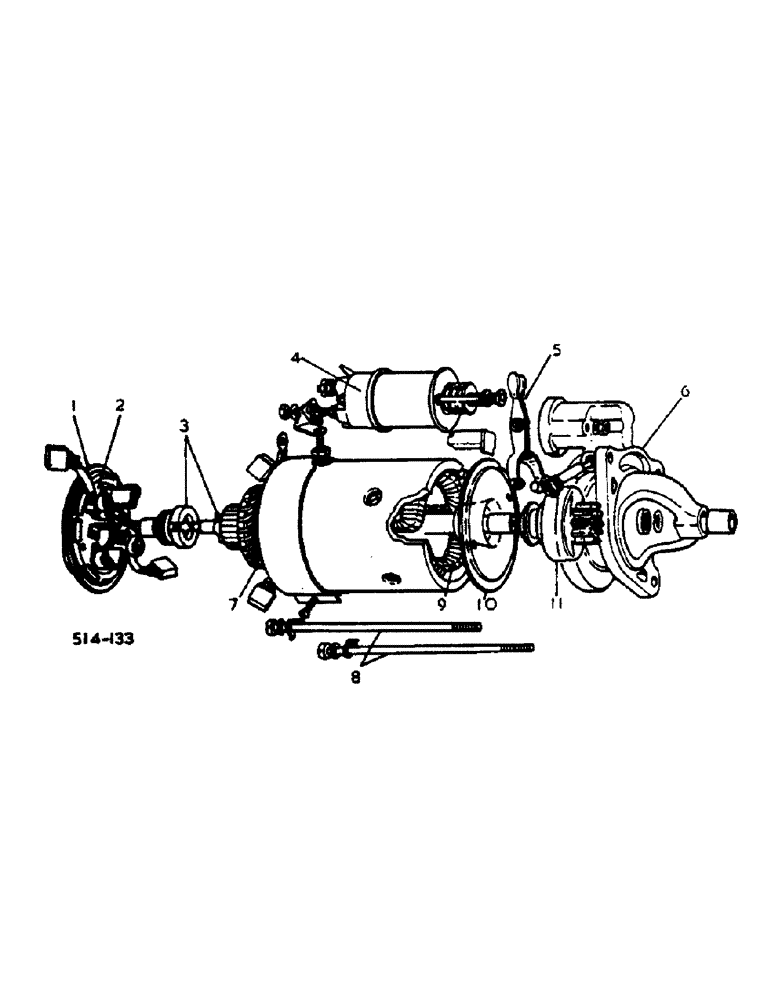

Запчасти Case IH 684 (08-11[A]) - ELECTRICAL, CRANKING MOTOR LUCUS 26428A (06) - ELECTRICAL

NSS

NOT SOLD SEPARAT

STARTER MOTOR, complete, Lucus M5026428A, replaced by 537140R95

1шт.

The bendix for Lucas starter 537140R94.

1шт.

1

3206511R91

BRACKET

KIT, bracket assy

1шт.

2

3113026R91

PLATE ASSY.

PLATE ASSY, brush mounting

1шт.

3118371R91

BRUSH, COMMUTATOR

KIT, brushes

1шт.

3206523R91

SPRING KIT

KIT, brush springs

1шт.

3

3206531R91

BRAKE PACKAGE

KIT, brake

1шт.

4

3129495R91

SOLENOID SWITCH

SOLENOID

1шт.

5

3206495R91

LINK ASSY, solenoid

1шт.

6

3129494R91

BRACKET

ASSY, fixing

1шт.

7

3113038R91

ARMATURE

ASSY

1шт.

8

3129088R1

BOLT

ASSY, thru

2шт.

3129089R1

WASHER

spring

2шт.

9

3206527R91

KIT

field coils

1шт.

10

3119902R91

SUPPORT

BRACKET ASSY, intermediate

1шт.

11

3113033R91

DRIVE

ASSY

1шт.

3113029R91

BUSHING

KIT, bushing

1шт.

3206528R91

SEAL KIT

KIT, sealing

1шт.

3206529R91

KIT

sundry parts

1шт.
