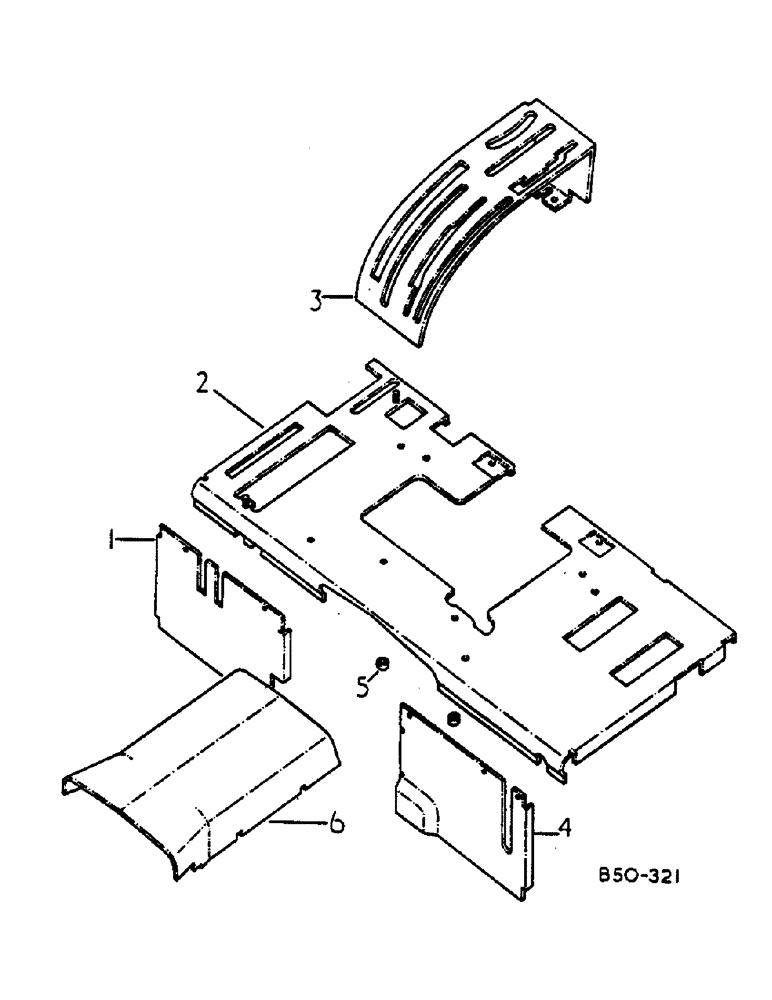

Запчасти Case IH 684 (13-04) - SUPERSTRUCTURE, REAR PANELS, 684 TRACTOR WITH H PATTERN SHIFT (05) - SUPERSTRUCTURE

1

3123711R1

CHANNEL

ASSY, rear vertical RH, tractor w/single aux. valve

1шт.

1

3125857R1

CHANNEL

ASSY, rear vertical RH, tractor w/multiple aux. valves

1шт.

2

3129233R2

COVER ASSY

rear top

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

3125820R1

SLEEVE

pvc

6шт.

3

529457R61

COVER ASSY

hitch control lever, utility & row crop tractor

1шт.

3

3121558R2

COVER ASSY

hitch control lever, all wheel drive tractors

1шт.

4

528638R2

PROTECTION PLATE

CHANNEL ASSY, rear vertical LH

1шт.

180018

CONNECTING LINK

1/4 x 5/8 type 5

3шт.

5

401941R1

SPACER

mounting short

2шт.

6

66290C1

COVER

ASSY, clutch housing

1шт.

445957

INDICATOR

1/4 x 3/8 znp p/hds mach

4шт.

NSS

NOT SOLD SEPARAT

SEAL, edge finisher, 1.6in., furnish from bulk roll marked 1265283C

4шт.
