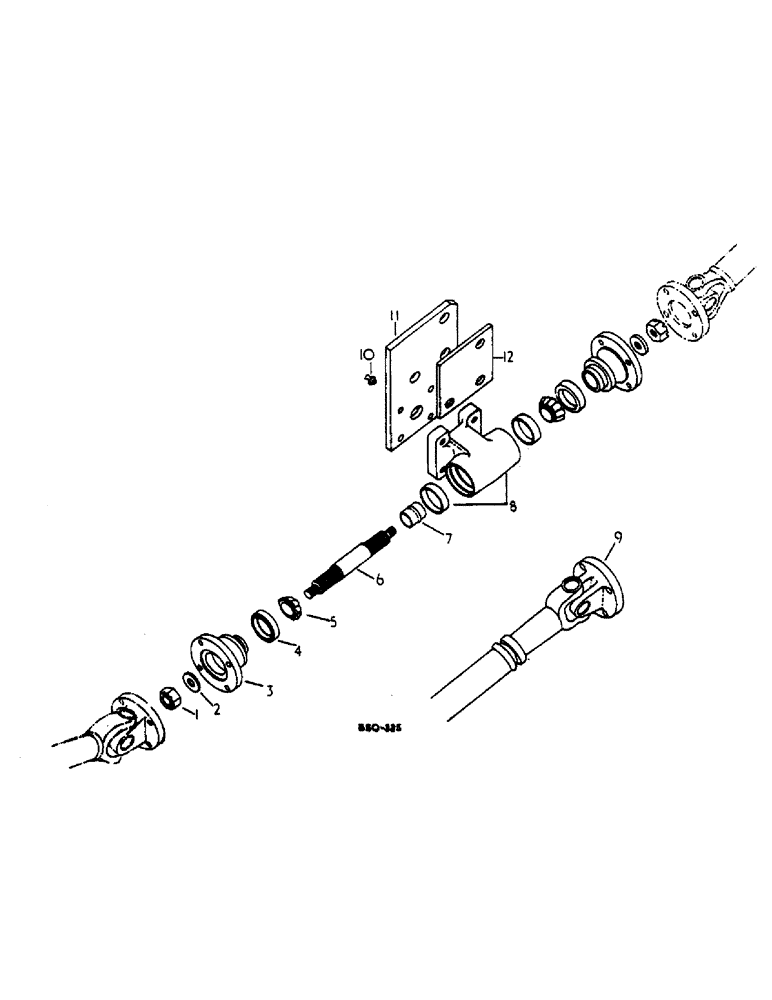

Запчасти Case IH 684 (07-73) - DRIVE TRAIN, PROPELLER SHAFT, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

1

1003759C1

NUT,5/8"-18

NUT

2шт.

2

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 phc hdn

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

3

3129941R1

FLANGE

companion

2шт.

4

1004318C1

OIL SEAL

SEAL, oil

2шт.

4

3129946R1

OIL SEAL

oil

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, cone

2шт.

6

3129944R1

SHAFT

1шт.

7

3129945R1

SPACER

1шт.

8

3129945R1

SPACER

BLOCK /TWO BEARING ASSY, pillow

1шт.

651817R1

BEARING CUP

BEARING, cup

2шт.

9

3129940R92

SHAFT

ASSY, propeller, hardy spicer or B.R.D. mfg, optional w/82474C91

1шт.

1287973C91

U-JOINT SPIDER

PACKAGE, u-joint repair service

4шт.

9

82474C91

SHAFT ASSY.

SHAFT ASSY, propeller, optional w/3129940R92

2шт.

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

4шт.

82475R91

JOINT

4шт.

870325R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

7/16 x 1-3/8 phc type 8

12шт.

9418646

NUT,7/16"-14, G8

7/16 type 8

16шт.

115314

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

11

3129947R1

SUPPORT

BRACKET, pillow block

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4+шт.

120396

WASHER

.531 x 1.062 x .074

4шт.

12

3121579R1

SPACER

PLATE, spacer

1шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

3шт.

131142

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.
