Запчасти Case IH 684 (07-72) - DRIVE TRAIN, DIFFERENTIAL, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

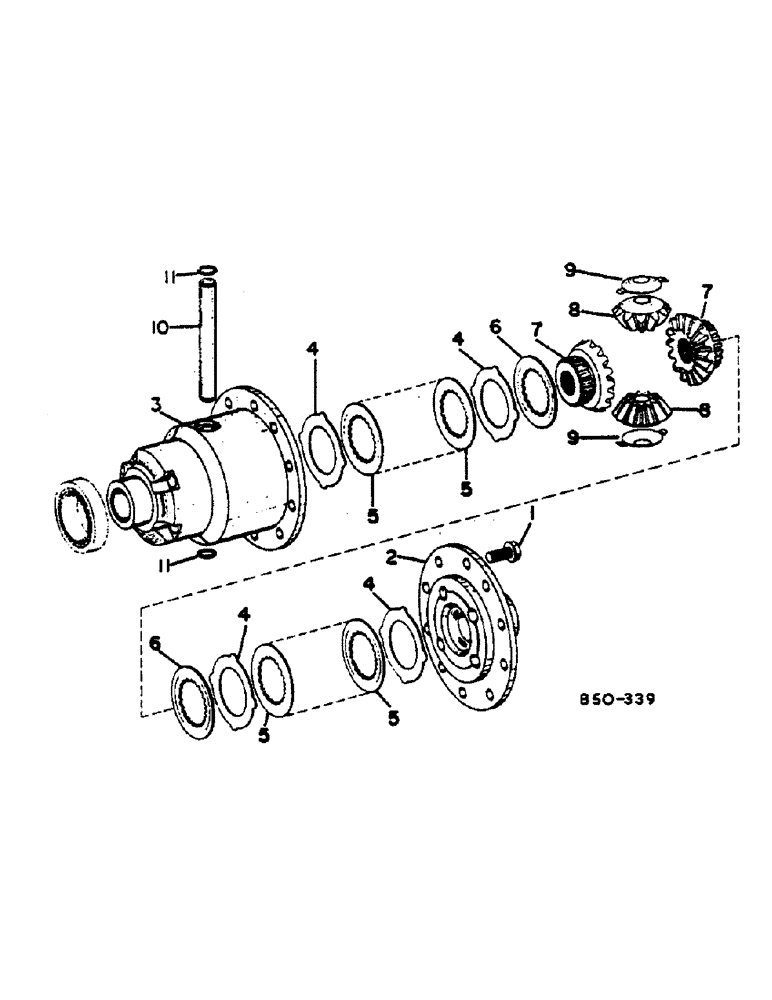

Схема запчастей Case IH 684 - (07-72) - DRIVE TRAIN, DIFFERENTIAL, ALL WHEEL DRIVE TRACTORS (04) - Drive Train
7
10
5
5
5
3
11
8
8
6
7
9
5
4
2
4
4
11
4
9
6

Артикул

Название

Примечание

Количество

1

3230285R1

BOLT

M10 x 21 locking

10шт.

2

NSS

NOT SOLD SEPARAT

CASE, differential, part of ref. no. 2

1шт.

3

NSS

NOT SOLD SEPARAT

CASE, differential, part of ref. no. 2

1шт.

4

3223459R1

SHIM

PLATE, driven

10шт.

5

3223460R1

DRIVE PLATE

PLATE, drive

8шт.

6

3223463R1

FIN

PLATE, thrust 2.8mm

2шт.

6

3223462R1

PLATE, THRUST

2.9mm

2шт.

6

3223461R1

WASHER

PLATE, thrust 3.0mm

2шт.

7

3230283R1

GEAR

differential side

2шт.

8

3230284R1

GEAR

differential pinion

2шт.

9

3147204R1

WASHER, THRUST

2шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, differential

1шт.

11

3139039R1

RING, SNAP

2шт.

Выбрано товаров: 13
