Запчасти Case IH 684 (07-71) - DRIVE TRAIN, DIFFERENTIAL CARRIER, ALL WHEEL DRIVE TRACTORS (04) - Drive Train

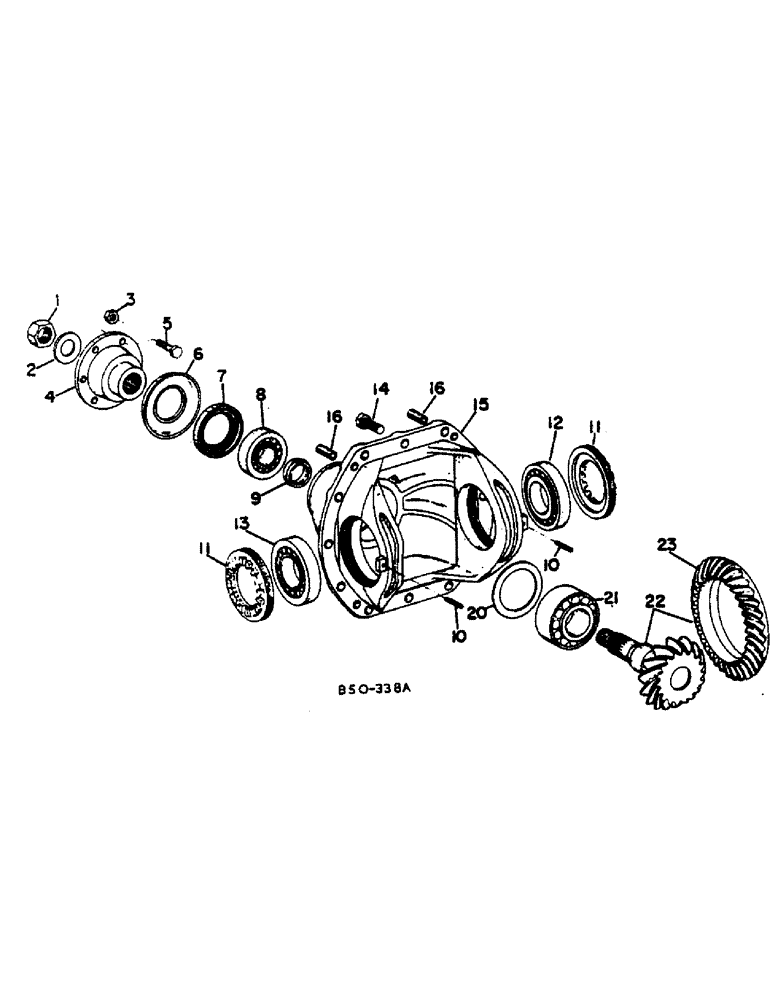

Схема запчастей Case IH 684 - (07-71) - DRIVE TRAIN, DIFFERENTIAL CARRIER, ALL WHEEL DRIVE TRACTORS (04) - Drive Train
9
14
22
2
4
15
13
16
23
20
6
10
7
3
16
1
5
10
11
8
12
21
11

Артикул

Название

Примечание

Количество

1

934649R1

NUT,M20 x 1.5, Cl 10

M20 x 1.5

1шт.

2

3216566R1

WASHER

1шт.

3

Not used this application

1шт.

4

1502274C1

FLANGE

drive

1шт.

5

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

SCREW

4шт.

6

3216554R1

SHIELD

SHEILD, dust

1шт.

7

3146754R1

SEAL

SEAL

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING ASSY, pinion rear, consists of

1шт.

530741R1

BEARING CUP

BEARING, cup pinion rear

1шт.

871241R91

ROLLER BEARING

cone pinion rear

1шт.

9

3216560R1

SLEEVE

1шт.

10

Q5343

LOCK PIN,M5 x 30, Slotted

PIN, coiled spring

2шт.

11

3216565R1

NUT

adj

2шт.

12

3216713R1

BEARING, ROLLER

BEARING, taper roller

1шт.

13

3216713R1

BEARING, ROLLER

BEARING, taper roller

1шт.

14

931370R1

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

SCREW, M10 x 35

9шт.

15

3216559R1

HOUSING

differential

1шт.

82222C1

STUD

M10 x 67

3шт.

16

932601R1

RIVET

PIN, coiled spring

2шт.

17

Not used this application

1шт.

18

Not used this application

1шт.

19

Not used this application

1шт.

20

3216564R1

SHIM

.1

1шт.

20

3216563R1

DISC

SHIM, .2

1шт.

20

3216562R1

SHIM

.3

1шт.

20

3216561R1

DISC

SHIM, .6

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING ASSY, pinion front, consists of

1шт.

313814R91

ROLLER BEARING,36.51mm ID x 28.57mm W

cone pinion front

1шт.

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP, Pinion front

1шт.

22

1502273R91

GEAR-SET

SET, bevel gear 11T/35T, consists of 1 shaft, gear, NSS

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR, crown 35T, part of ref no. 22

1шт.

Выбрано товаров: 31
