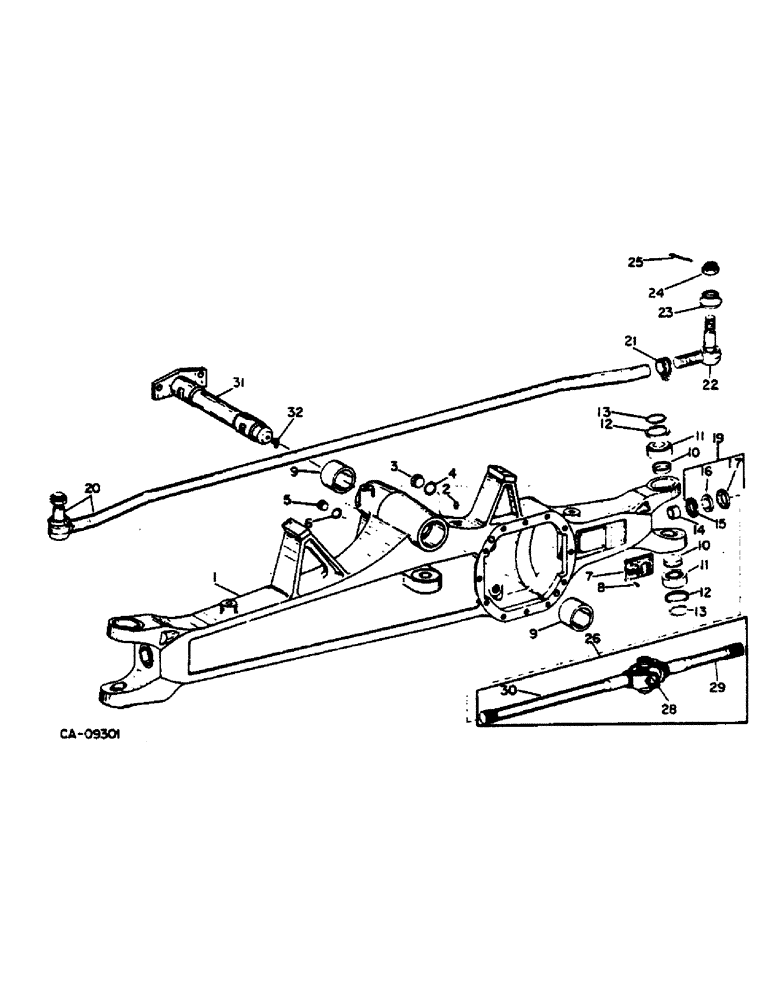

Запчасти Case IH 684 (07-67) - DRIVE TRAIN, AXLE HOUSING, UNIVERSAL SHAFT, ALL WHEEL DRIVE TRACTOR (04) - Drive Train

1500229C92

4WD AXLE ASSY

AXLE ASSY, front all wheel drive, w/self lock diff, w/single u-joint drive shafts

1шт.

82240C91

AXLE

ASSY, front, w/limited slip differential, w/double u-joint drive shafts

1шт.

1

1502262C1

HOUSING

ASSY, axle

1шт.

2

898138H1

BREATHER

1шт.

3

933799R1

PLUG,Hex Soc, M24 x 1.5

1шт.

4

933709R1

PACKING RING

RING, seal 24 x 29

3шт.

5

3216584R1

PLUG

M18 x 1.5

1шт.

6

933222R1

SEALING WASHER,M18 x 22 x 1.5

3шт.

7

NSS

NOT SOLD SEPARAT

PLATE, identification

1шт.

8

NSS

NOT SOLD SEPARAT

PIN

4шт.

9

1502263C1

BUSHING

2шт.

10

3147245R1

PLUG

COVER

4шт.

11

3147241R1

BEARING, CUP

4шт.

11

3147242R91

ROLLER BEARING

4шт.

12

3147243R1

CUP WASHER

4шт.

13

3147244R1

O-RING

4шт.

14

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.

15

NSS

NOT SOLD SEPARAT

SEAL, oil, order 3405555R1

4+шт.

16

NSS

NOT SOLD SEPARAT

SEAL, felt, order 3405555R1

4шт.

17

NSS

NOT SOLD SEPARAT

HOLDER, order 3405555R1

4шт.

18

Not used this application

1шт.

19

3405555R1

SEAL

ASSY, includes ref no. 15, 16 & 17

4шт.

20

1502268C1

TIE-ROD

ROD, tie

1шт.

No Ball Joint Ends. Order ref. 22, P/N1502269C1, for the Ends.

1шт.

21

CLIP ASSY, part of ref no. 20

1шт.

22

1502269C1

BALL JOINT

JOINT, ball

2шт.

1502270C1

NUT

lock

2шт.

23

GASKET ASSY, part of ref no. 22

1шт.

24

934683R1

NUT,M18 x 1.5

NUT, castle

2шт.

25

932956R1

COTTER PIN,M4 x 40

PIN, split 4 x 40mm

2шт.

26

SHAFT ASSY, RH drive, illustrated

1шт.

26

SHAFT ASSY, LH drive, illustrated, w/single u-joint, order components, ref no. 28, 29 & 30

1шт.

26

82241C91

SHAFT

ASSY, RH drive, not illustrated

1шт.

26

82242C91

SHAFT

ASSY, LH drive, not illustrated, w/double u-joints, components not serviced

1шт.

27

Not used this application

1шт.

28

3230277R1

SPIDER ASSY.

SPIDER ASSY, w/bearing

2шт.

3223197R1

RING, SNAP

RING, retaining j27 x 1.3, w/single u-joint

8шт.

29

3216599R91

SHAFT

w/single u-joint

2шт.

30

1502267C1

SHAFT

RH

1шт.

30

1502265C1

DRIVE SHAFT

SHAFT, LH, w/single u-joint

1шт.

31

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

32

273352

SCREW

FITTING, 1/8 ptf short 90D lub

1шт.
