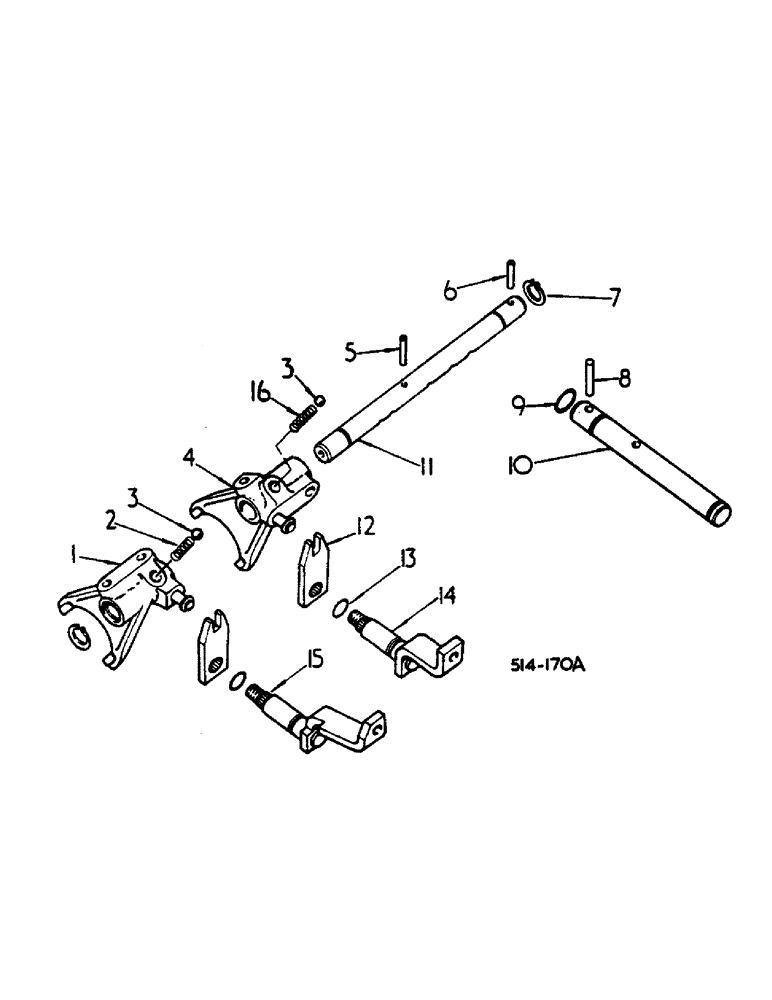

Запчасти Case IH 684 (07-44) - DRIVE TRAIN, TRANSMISSION CONTROLS, INTERNAL, RANGE TRANSMISSIONS, 684 TRACTORS WITH Z PATTERN SHIFT (04) - Drive Train

1

538911R4

FORK

front

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

2

103062C1

SPRING

poppet ball, front fork

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

538912R4

FORK

rear

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail #75, Ext

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

1шт.

10

402152R1

SHAFT

range trans. shift lever idler

1шт.

11

537473R3

RAIL

range shift fork, 684 tractors

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

12

405169R2

ARM

range shift inner

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

1шт.

14

405167R3

ARM

ASSY, range shift outer rear

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

15

405164R4

ARM

ASSY, range shift outer front

1шт.

See SB 5023, new range transmission shifting parts.

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

16

534053R1

SPRING

poppet ball, rear fork

1шт.

See SB 5023, new range transmission shifting parts.

1шт.
